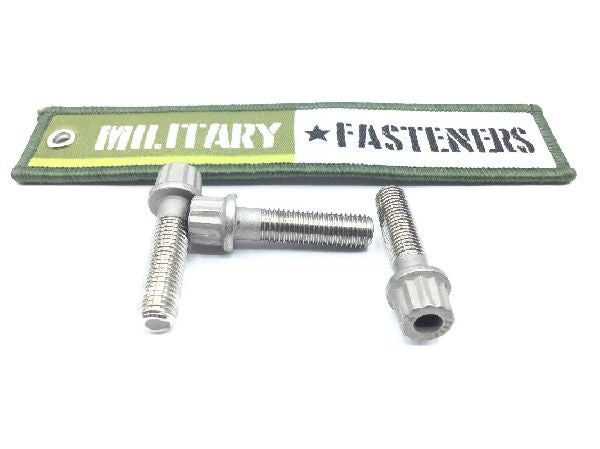

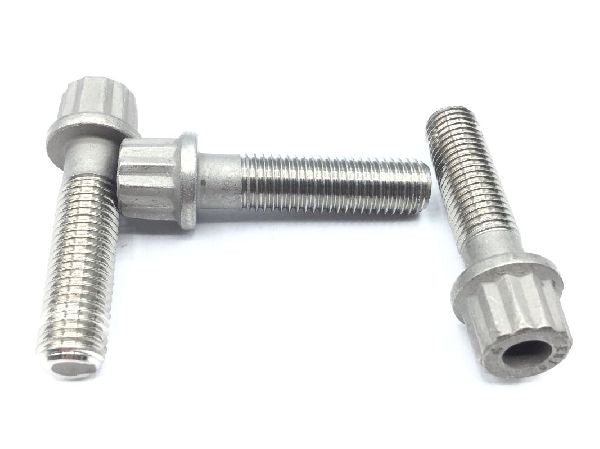

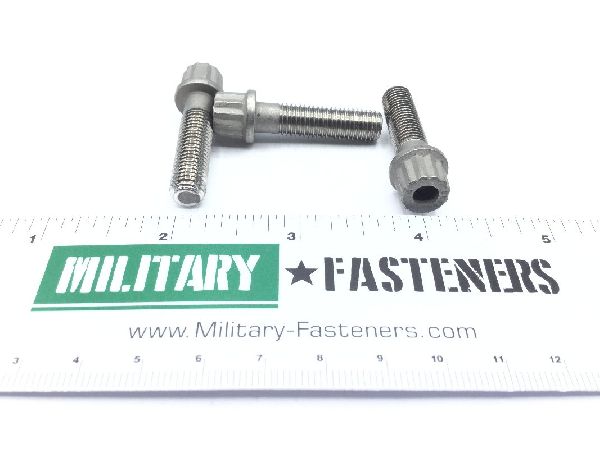

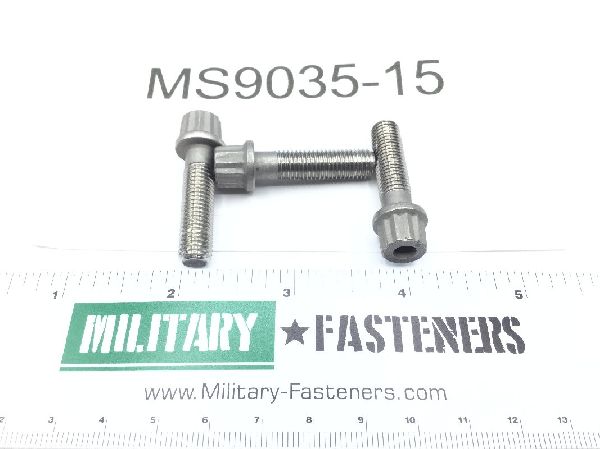

MS9035-15 Machine Bolt

Product Series: MS
ECCN: 9A991
Schedule: 7318.15.8085

Price per Unit $4.50

Units per Pack 25

Price per Pack $112.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $112.50

Add item to quote

Head Style

Double hexagon with hole

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: 0.500 inches
Extended Washer Thickness: Between 0.070 inches and 0.080 inches
Fastener Length: 1.188 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.252 inches and 0.312 inches
Hardness Rating: 248.0 brinell standard and 341.0 brinell standard
Head Height: 0.375 inches
Hole Configuration Style: Round
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams5732 assn standard single material response
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.876 inches and 0.936 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.367 inches and 0.376 inches
Hole Diameter: 0.070 inches
