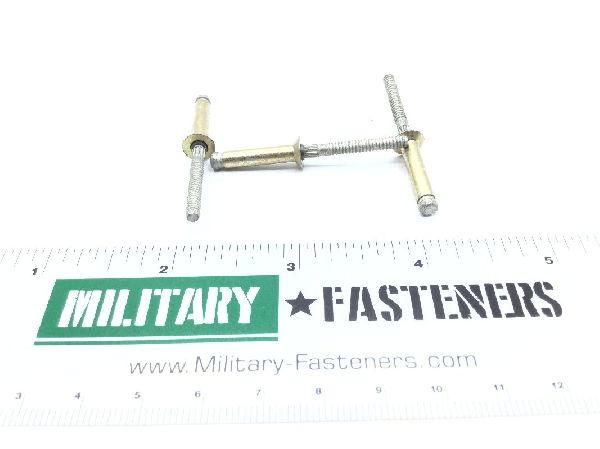

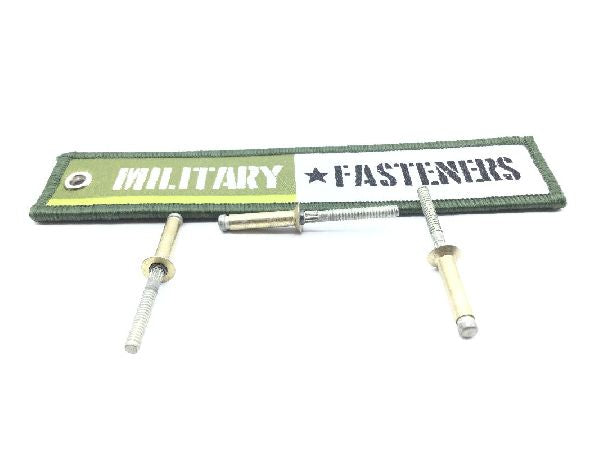

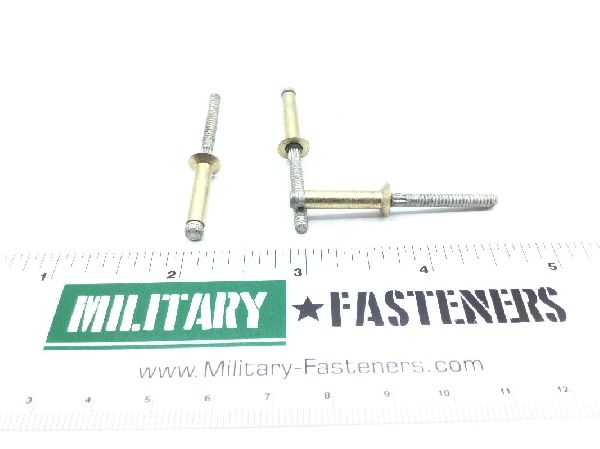

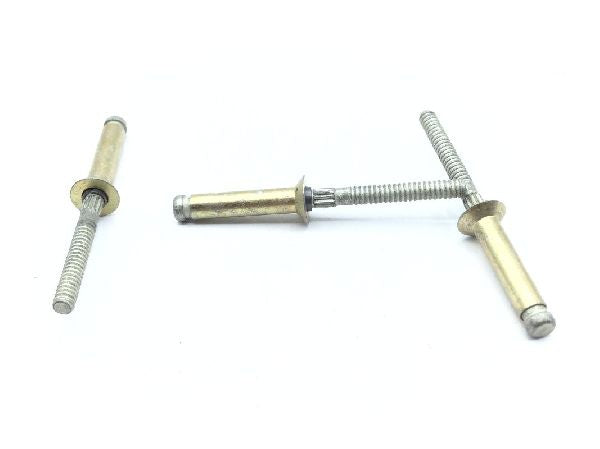

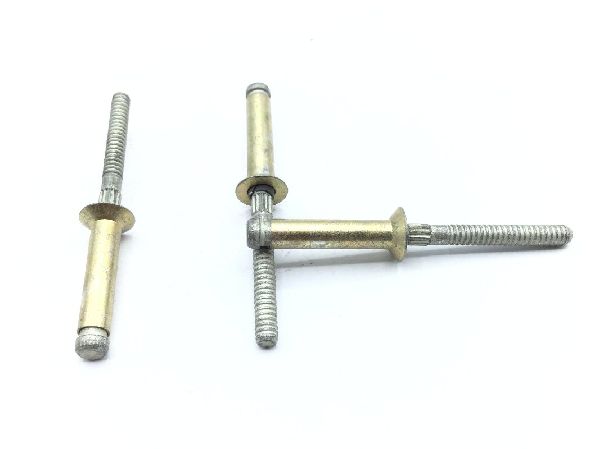

MS90353-0509 Blind Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Steel comp 4027 sleeve or steel comp 4037 sleeve or steel comp 4130 sleeve

Surface Treatment

Cl 3 federal specification single treatment response stem type 1 qq-p-416

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Expansion Device: Serrated stem-type w
Fastener Length: 0.842 inches
Grip Length: Between 0.531 inches and 0.595 inches
Hardness Rating: 48.0 rockwell c stem and 53.0 rockwell c stem
Head Major Diameter: Between 0.323 inches and 0.343 inches
Material Specification: Mil-s-6049 military specification single material response stem or astm a547 assn standard single material response stem
Shank Diameter: Between 0.162 inches and 0.164 inches
Shank Style: Self-plugging mechanically locked stem
Shear Strength: 2340 single pounds per square inch
Special Features: Steel qq-s-633 comp c1144 mechanical lock steel aisi 660
