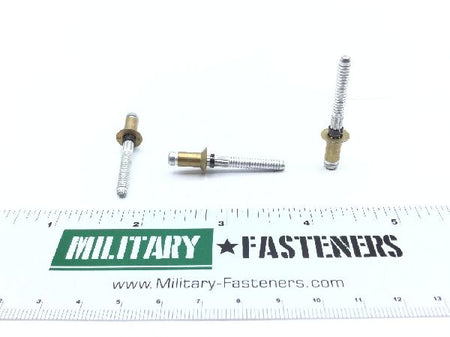

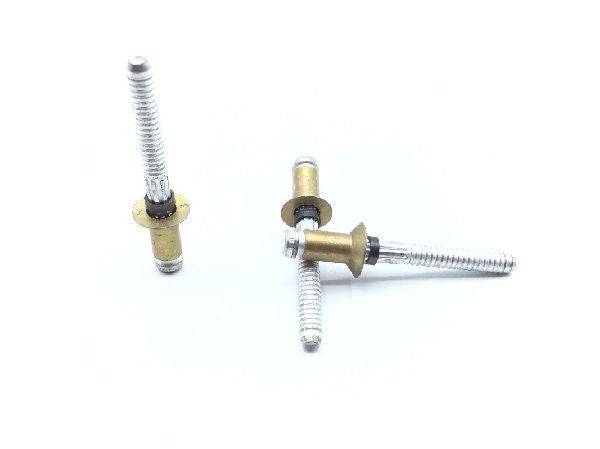

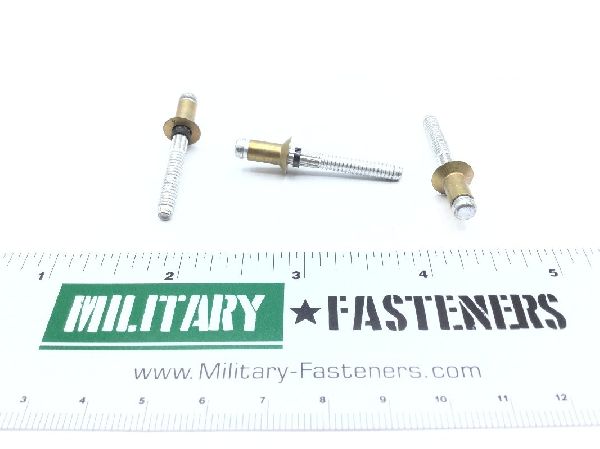

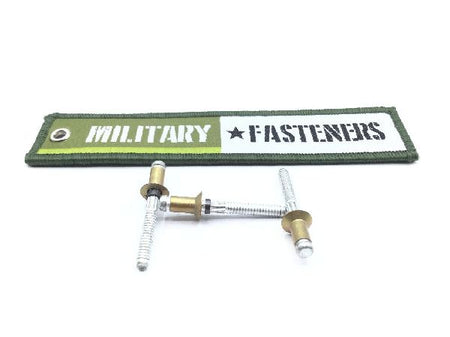

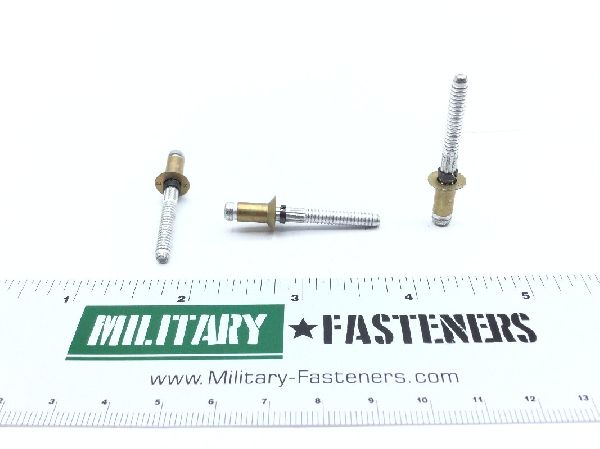

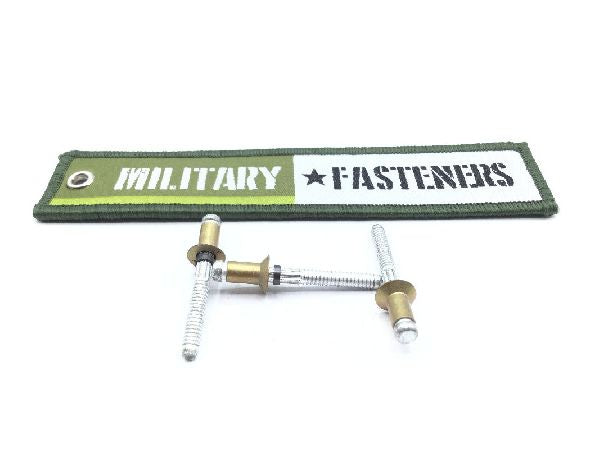

MS90353-0603 Blind Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $4.99

Units per Pack 10

Price per Pack $49.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $49.90

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Steel comp 4037 body or steel comp 4130 body

Surface Treatment

Cl 3 federal specification single treatment response stem type 1 or 2 qq-p-416

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Expansion Device: Serrated stem-type w
Fastener Length: 0.511 inches
Grip Length: Between 0.156 inches and 0.220 inches
Hardness Rating: 48.0 rockwell c stem and 53.0 rockwell c stem
Head Major Diameter: 0.386 inches
Material Specification: Mil-s-6049 military specification single material response stem or qq-w-405 federal specification single material response stem
Shank Diameter: Between 0.197 inches and 0.199 inches
Shank Style: Self-plugging mechanically locked stem
Shear Strength: 3450 single pounds per square inch
Special Features: Steel qq-s-633 c1144 mechanical lock steel aisi 660
