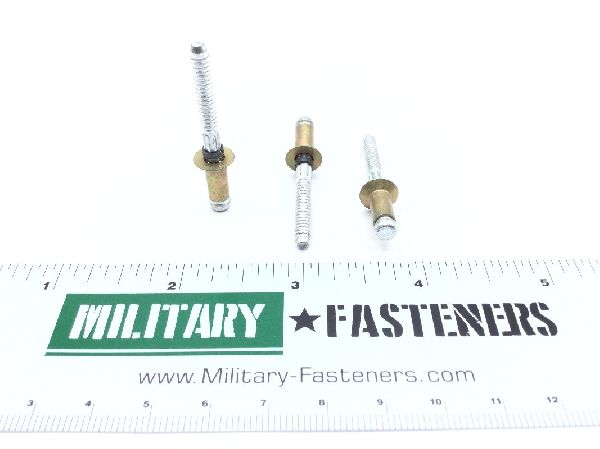

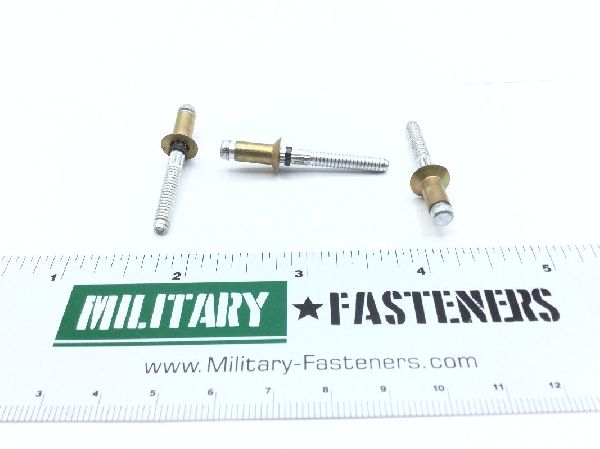

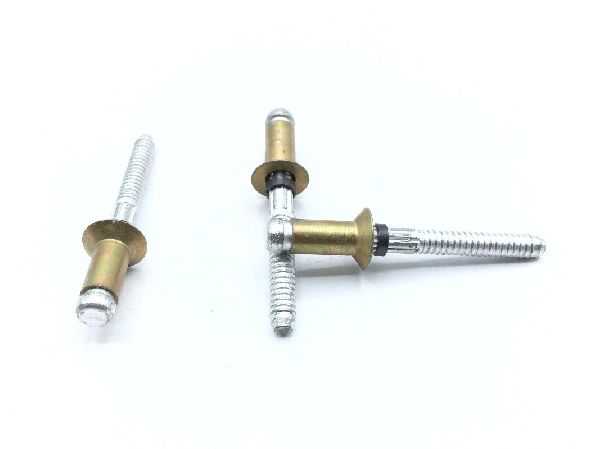

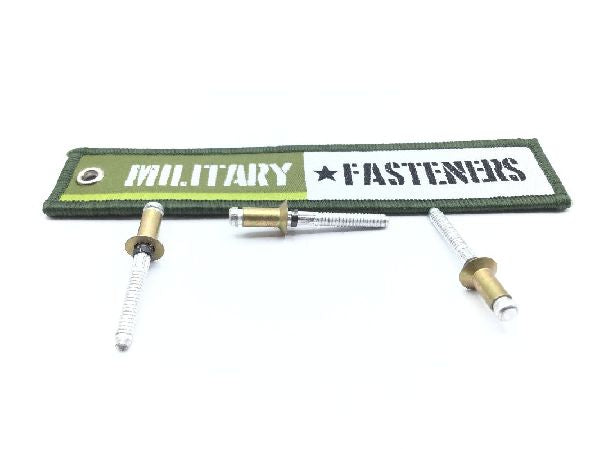

MS90353-0604 Blind Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $3.81

Units per Pack 10

Price per Pack $38.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $38.10

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Steel comp 4027 sleeve or steel comp 4037 sleeve or steel comp 4130 sleeve

Surface Treatment

Cl 3 federal specification single treatment response stem type 1 qq-p-416

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Expansion Device: Serrated stem-type w
Fastener Length: 0.574 inches
Grip Length: Between 0.219 inches and 0.282 inches
Hardness Rating: 48.0 rockwell c stem and 53.0 rockwell c stem
Head Major Diameter: 0.386 inches
Material Specification: Mil-s-6049 military specification single material response stem or astm a547 assn standard single material response stem
Shank Diameter: Between 0.197 inches and 0.199 inches
Shank Style: Self-plugging mechanically locked stem
