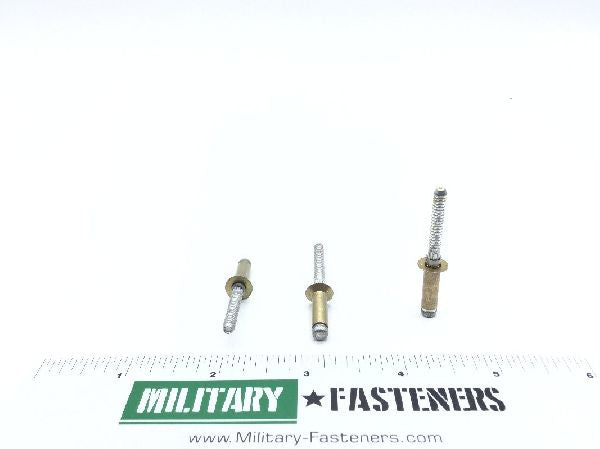

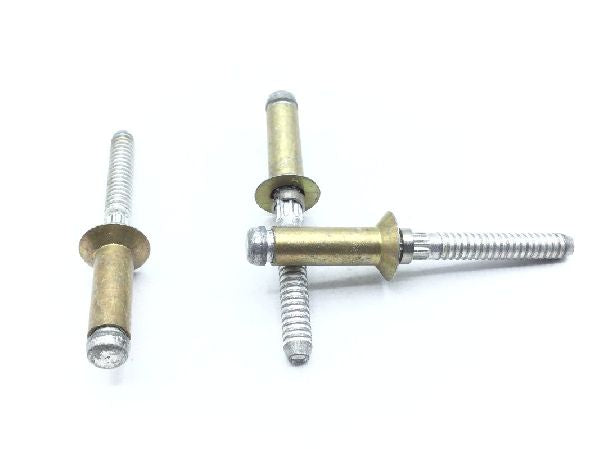

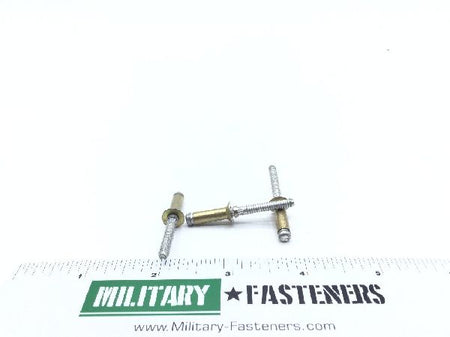

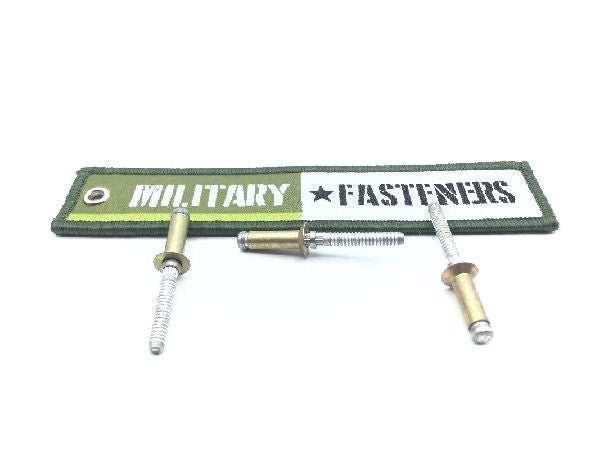

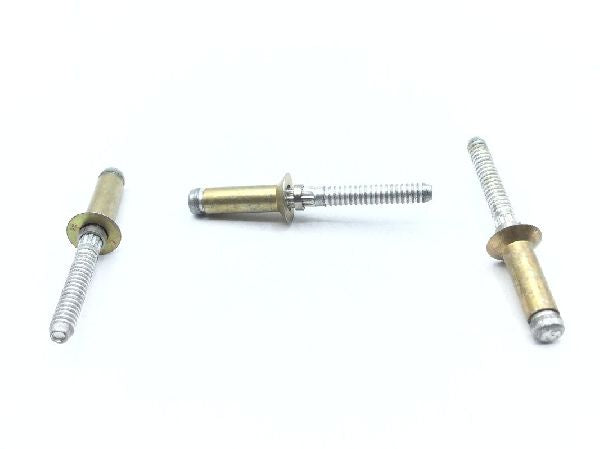

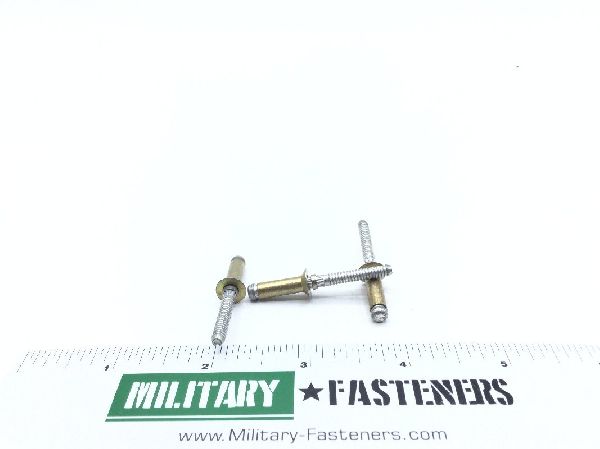

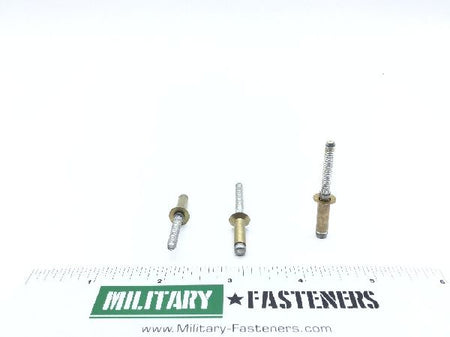

MS90353-0607 Blind Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $4.71

Units per Pack 20

Price per Pack $94.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $94.20

Add item to quote

Head Style

Flush (flat) countersunk

Material

Steel comp 8740 stem

Surface Treatment

Class 3 federal specification single treatment response stem type 1 or 2 qq-p-416

Countersink Angle: Between 99 degrees and 101 degrees
Expansion Device: Serrated stem-type w
Fastener Length: 0.761 inches
Grip Length: Between 0.406 inches and 0.470 inches
Hardness Rating: 32.0 rockwell c body and 40.0 rockwell c body
Head Major Diameter: 0.386 inches
Material Specification: Qq-w-405 federal specification 1st material response body or qq-w-405 federal specification 2nd material response body or mil-s-6758 military specification 2nd material response body
Shank Diameter: Between 0.197 inches and 0.199 inches
Shear Strength: 3450 single pounds per square inch
Special Features: Steel qq-s-633 comp c1144 mechanical lock steel aisi 660
