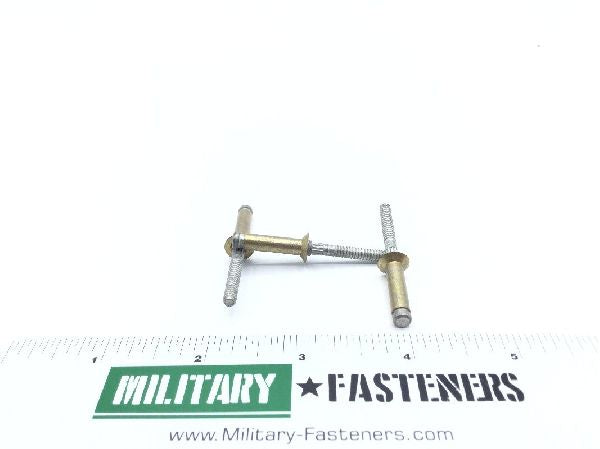

MS90353-0609 Blind Rivet

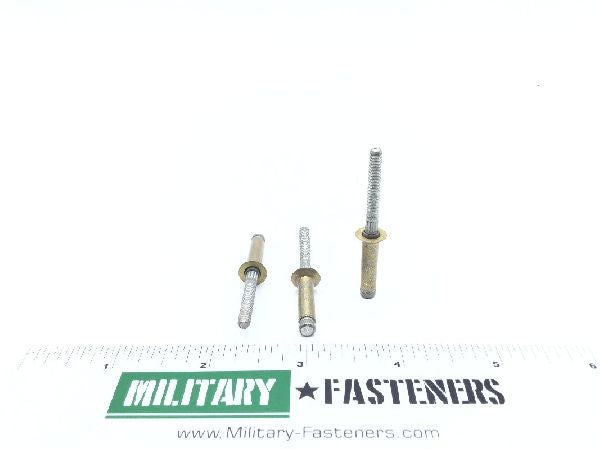

MS90353-0609 Blind Rivet (2)

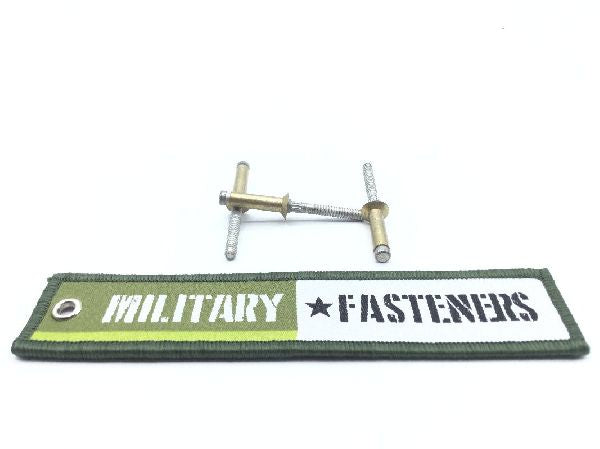

MS90353-0609 Blind Rivet (3)

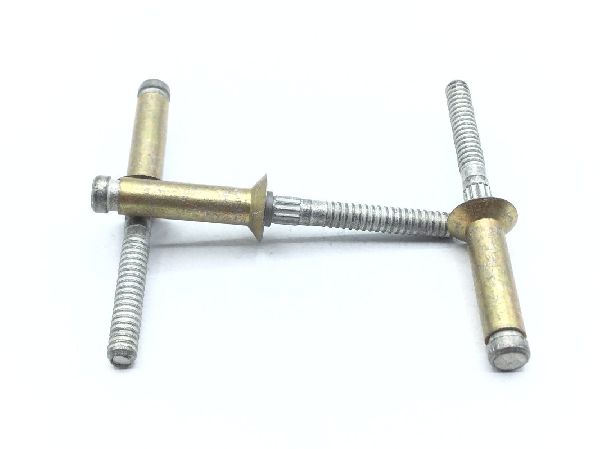

MS90353-0609 Blind Rivet (4)

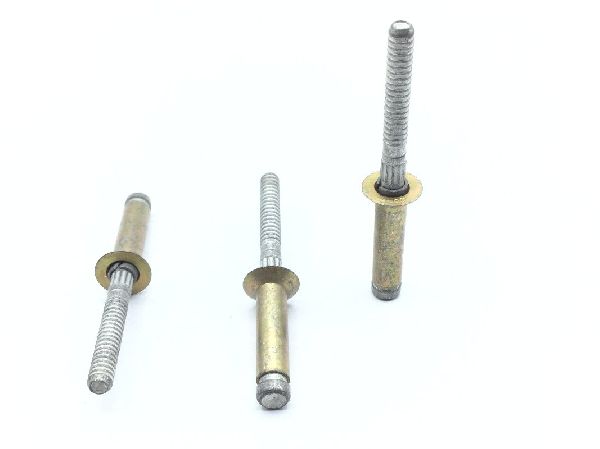

MS90353-0609 Blind Rivet (5)

MS90353-0609 Blind Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS90353-0609 Blind Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Steel comp 4027 sleeve or steel comp 4037 sleeve or steel comp 4130 sleeve

Surface Treatment

Qq-p-416 type 1 cl 3 federal specification single treatment response stem or qq-p-416 type 2 cl 3 federal specification single treatment response stem

Countersink Angle: 100.0 degrees
Expansion Device: Serrated stem-type w
Fastener Length: 0.886 inches
Grip Length: Between 0.531 inches and 0.595 inches
Hardness Rating: 48.0 rockwell c stem and 53.0 rockwell c stem
Head Major Diameter: 0.386 inches
Material Specification: Astm a547 assn standard single material response stem or mil-s-6049 military specification single material response stem
Shank Diameter: Between 0.197 inches and 0.199 inches
