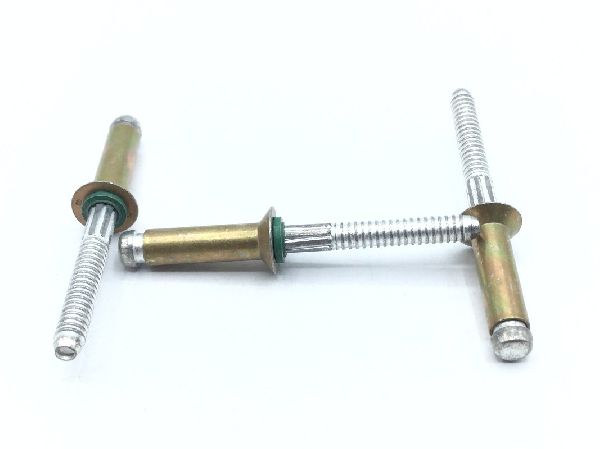

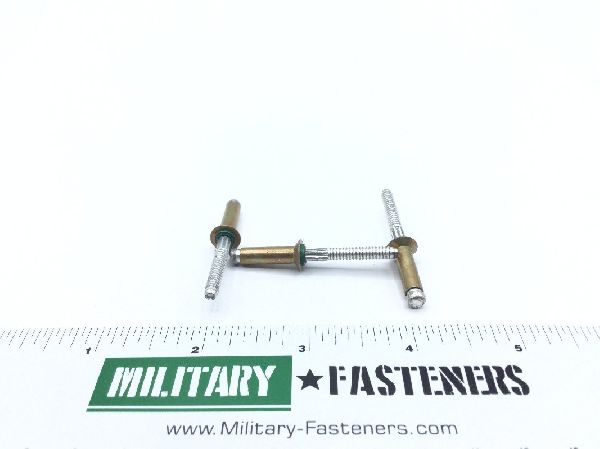

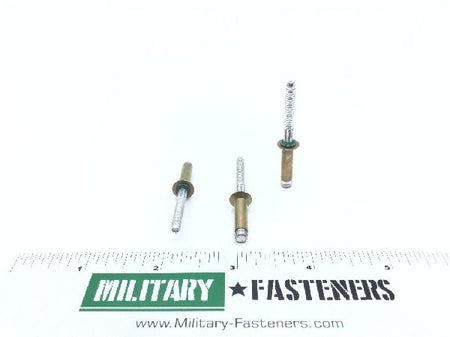

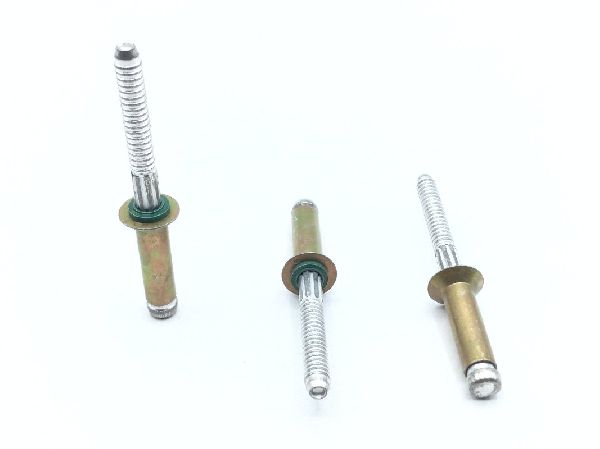

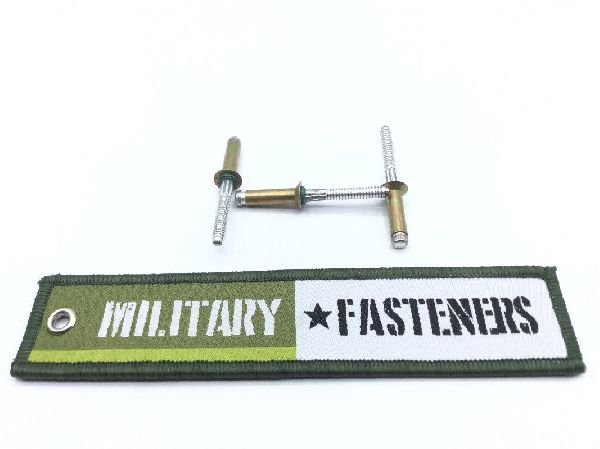

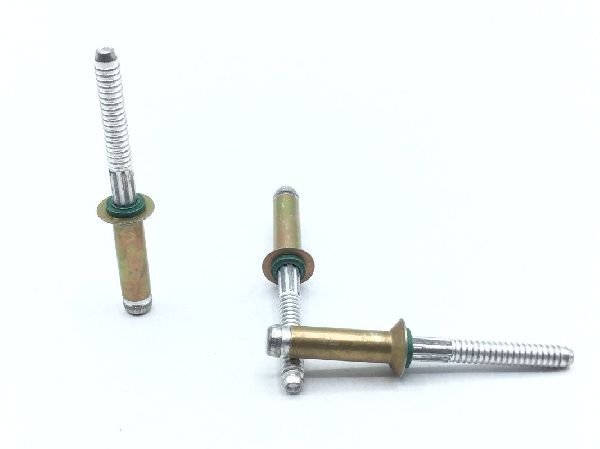

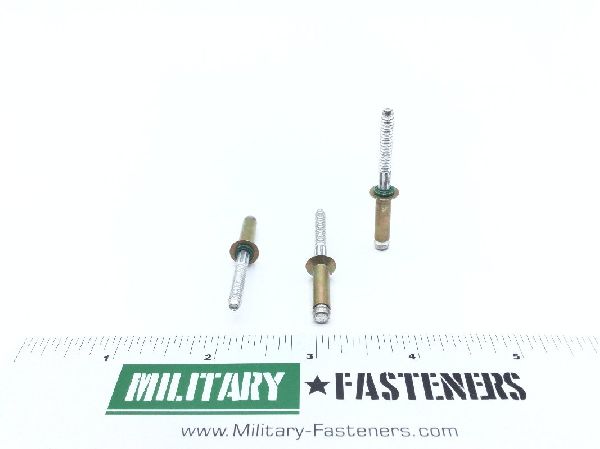

MS90353S0608 Blind Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $5.00

Units per Pack 10

Price per Pack $50.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $50.00

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Steel comp 8740 stem

Surface Treatment

Cl 2 federal specification single treatment response sleeve type 2 qq-p-416

Countersink Angle: 100.0 degrees
Expansion Device: Serrated stem-type w
Grip Length: Between 0.469 inches and 0.532 inches
Hardness Rating: 32.0 rockwell c sleeve and 40.0 rockwell c sleeve
Head Major Diameter: 0.386 inches
Material Specification: 66 federal standard all material responses sleeve or astm a547 assn standard 2nd material response sleeve or mil-s-6758 military specification 3rd material response sleeve
Shank Diameter: Between 0.197 inches and 0.199 inches
Shank Style: Self-plugging mechanically locked stem
Shear Strength: 3450 single pounds per square inch
Special Features: Installed with single action tool
