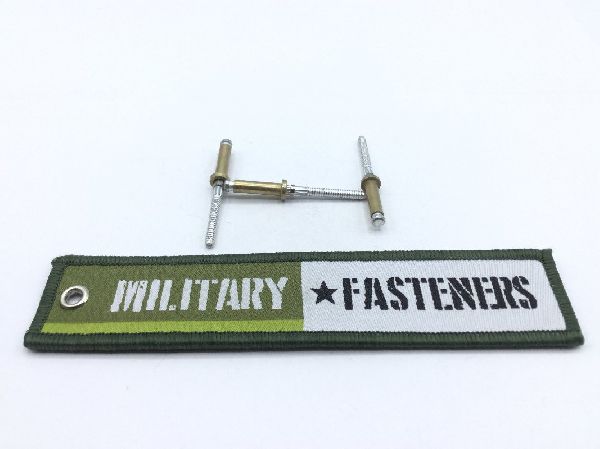

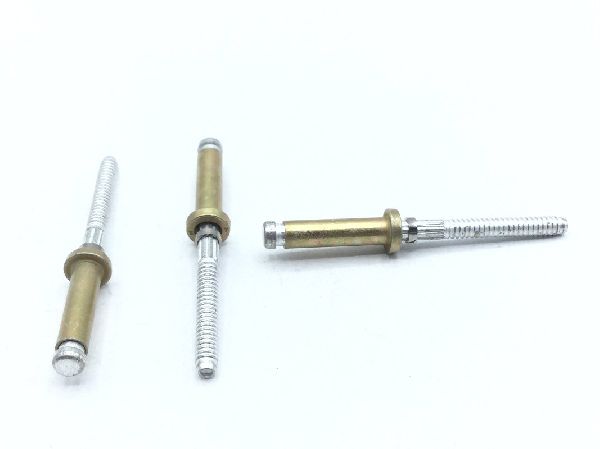

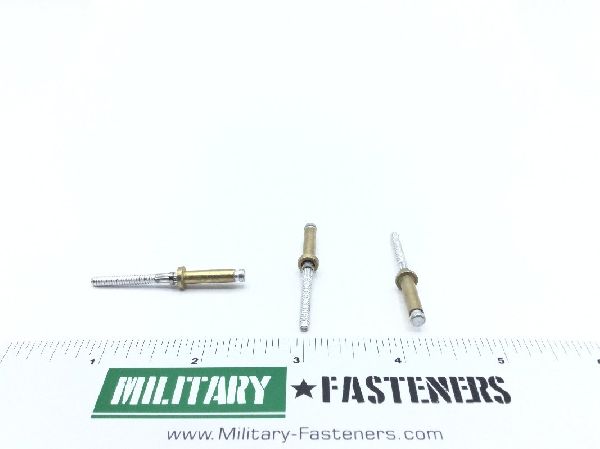

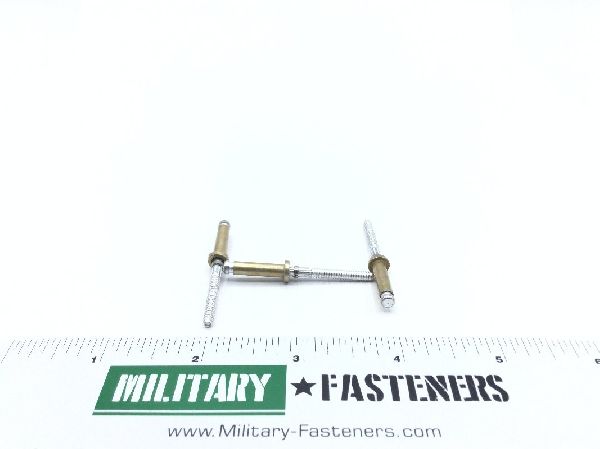

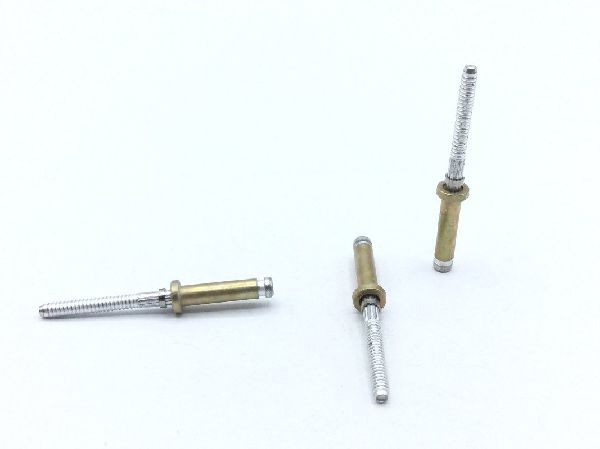

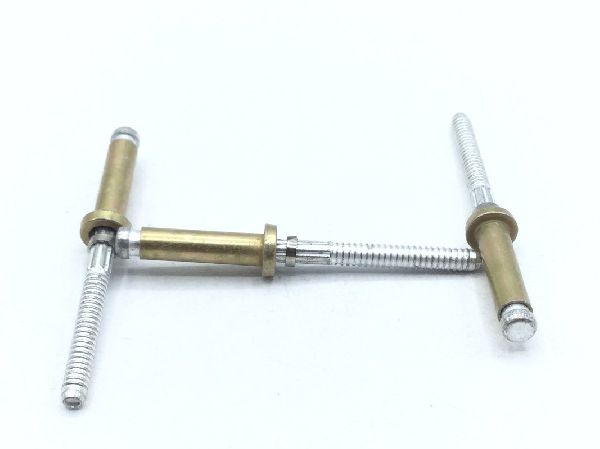

MS90354-0507 Blind Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Small pan

Material

Steel comp 4027 sleeve or steel comp 4037 sleeve or steel comp 4130 sleeve

Surface Treatment

Qq-p-416 type 1 cl 3 federal specification single treatment response stem or qq-p-416 type 2 cl 3 federal specification single treatment response stem

Expansion Device: Serrated stem-type w
Fastener Length: 0.592 inches
Grip Length: Between 0.406 inches and 0.470 inches
Hardness Rating: 48.0 rockwell c stem and 53.0 rockwell c stem
Head Height: Between 0.062 inches and 0.070 inches
Head Major Diameter: Between 0.250 inches and 0.272 inches
Material Specification: Astm a547 assn standard single material response stem or mil-s-6049 military specification single material response stem
Min. Tensile Strength (psi): 112000 pounds per square inch
Shank Diameter: Between 0.162 inches and 0.164 inches
Shank Style: Self-plugging mechanically locked stem
