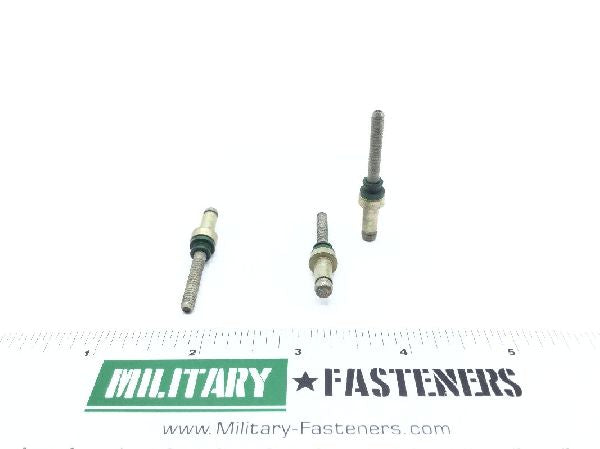

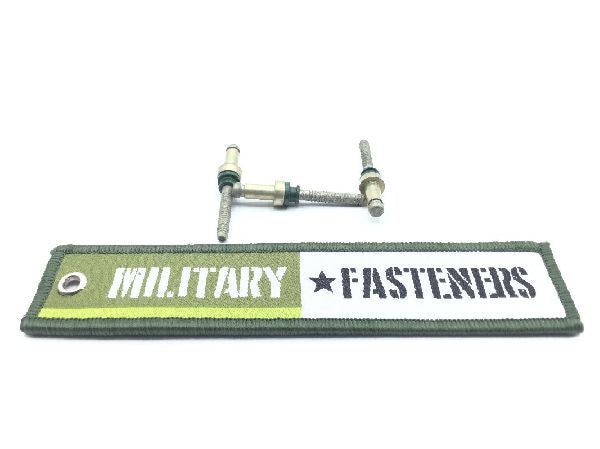

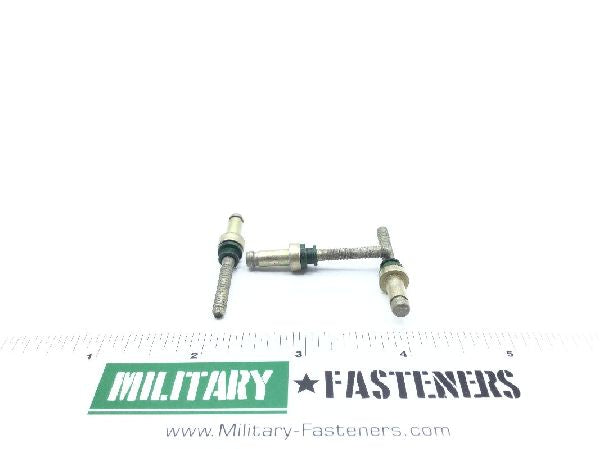

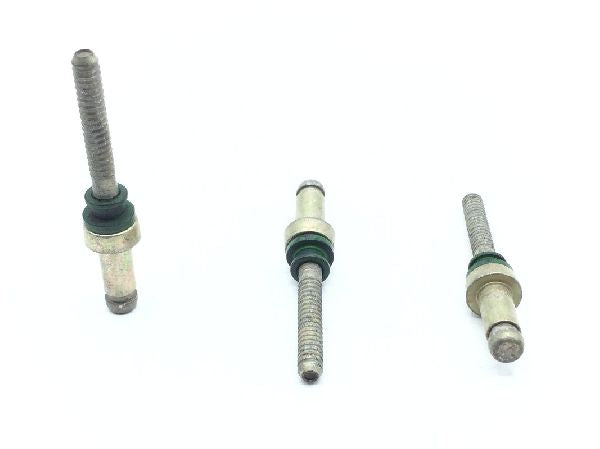

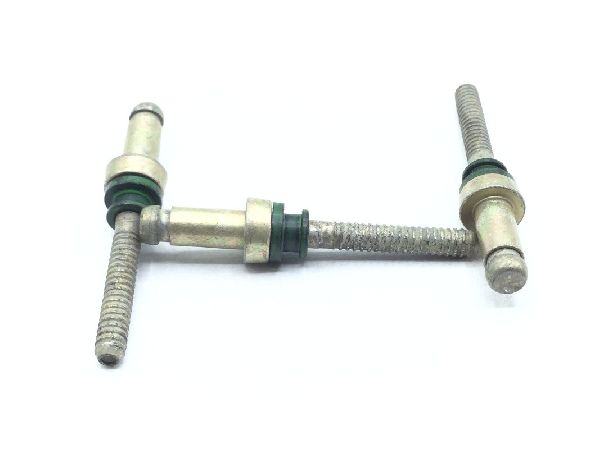

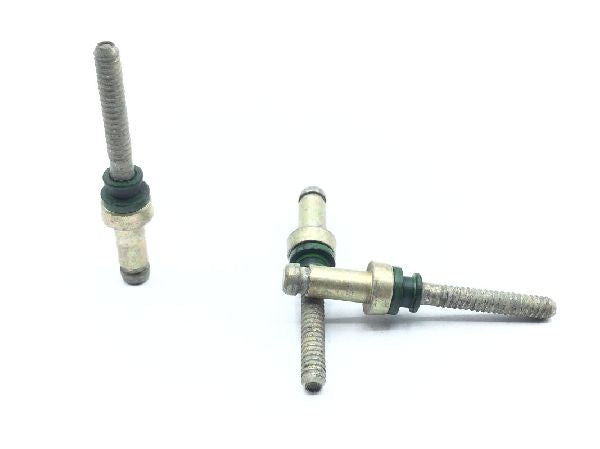

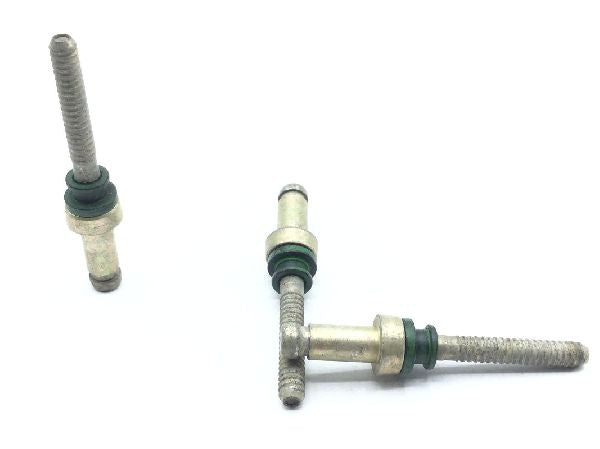

MS90354S0603 Blind Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Small pan

Material

Steel comp 4027 sleeve or steel comp 4037 sleeve or steel comp 4130 sleeve

Surface Treatment

Qq-p-416 ty2 cl2 federal specification single treatment response sleeve

End Application: Used on armee de l'air aircraft
Expansion Device: Serrated stem-type w
Fastener Length: 0.406 inches
Grip Length: Between 0.156 inches and 0.220 inches
Hardness Rating: 48.0 rockwell c stem and 53.0 rockwell c stem
Head Height: Between 0.125 inches and 0.135 inches
Head Major Diameter: Between 0.305 inches and 0.332 inches
Material Specification: Astma547 assn standard single material response stem or mil-s-6049 military specification single material response stem
Min. Tensile Strength (psi): 112000 pounds per square inch
Shank Diameter: Between 0.197 inches and 0.199 inches
