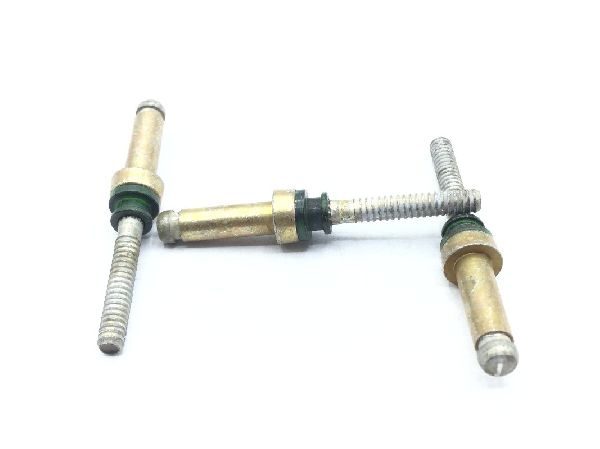

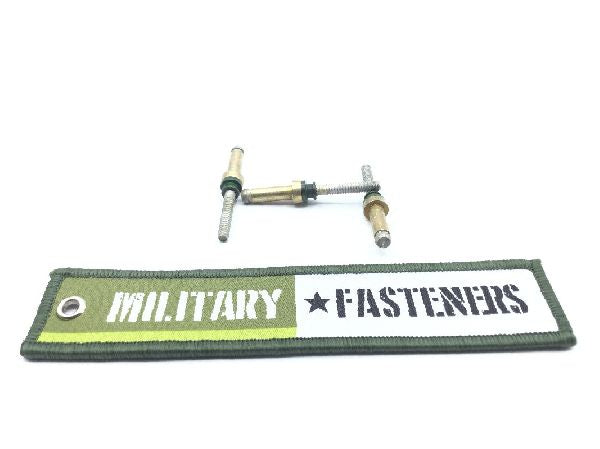

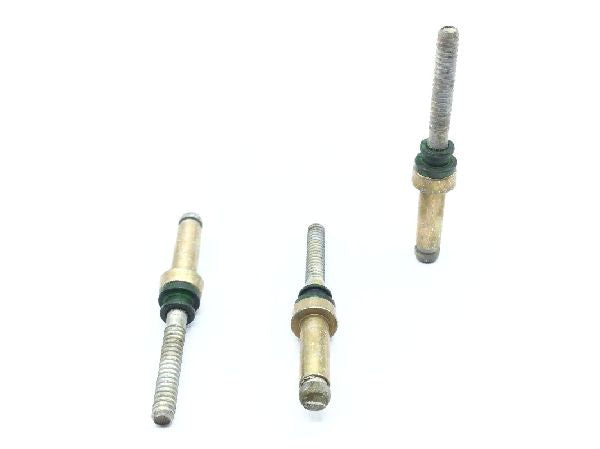

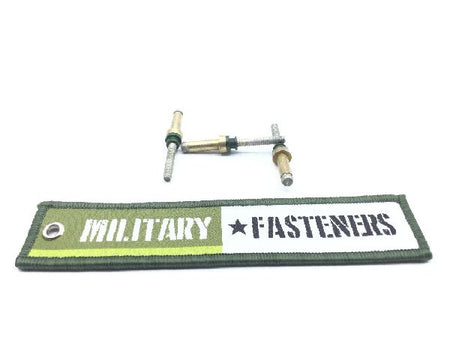

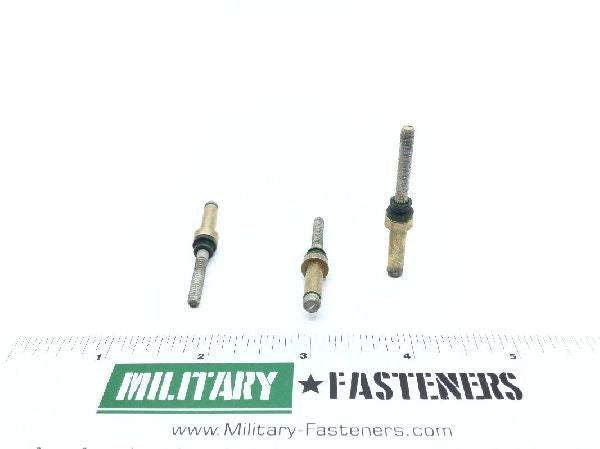

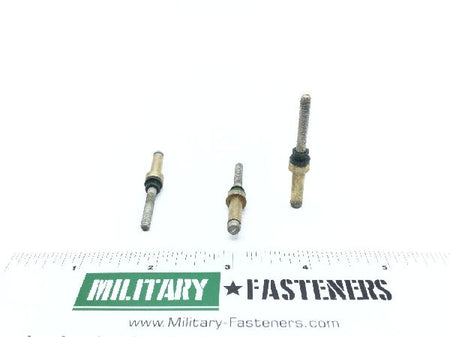

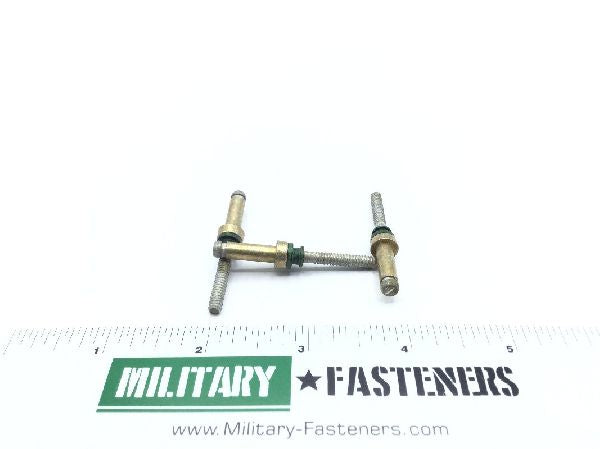

MS90354S0606 Blind Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Straight pan

Material

Steel comp 4037 sleeve or steel comp 4130 sleeve

Surface Treatment

Cl 3 federal specification single treatment response stem type 1 or 2 qq-p-416

Expansion Device: Serrated stem-type w
Grip Length: Between 0.344 inches and 0.407 inches
Hardness Rating: 48.0 rockwell c stem and 53.0 rockwell c stem
Head Height: Between 0.125 inches and 0.135 inches
Head Major Diameter: Between 0.305 inches and 0.332 inches
Material Specification: Mil-s-6758 military specification 1st material response sleeve or astm a547 assn standard 2nd material response sleeve
Min. Tensile Strength (psi): 112000 pounds per square inch
Shank Diameter: Between 0.197 inches and 0.199 inches
Shank Style: Self-plugging mechanically locked stem
Shear Strength: 3450 single pounds per square inch
