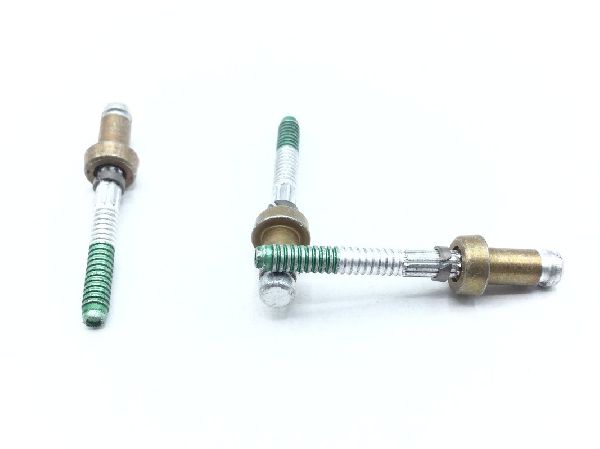

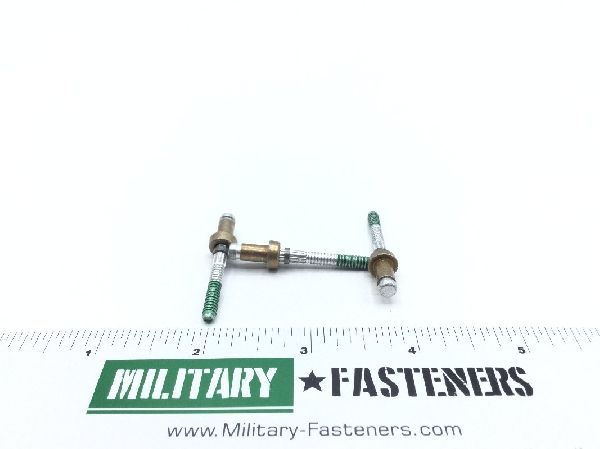

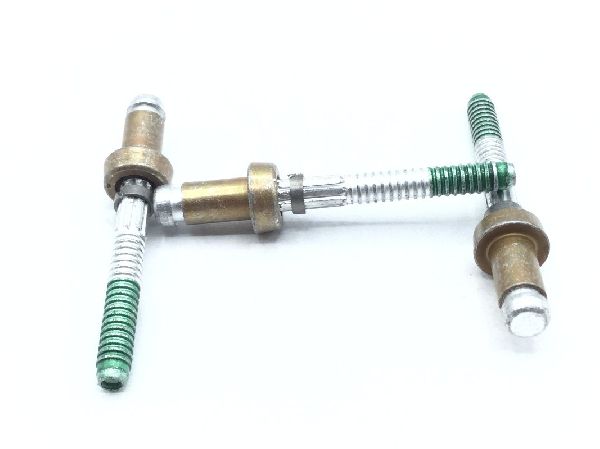

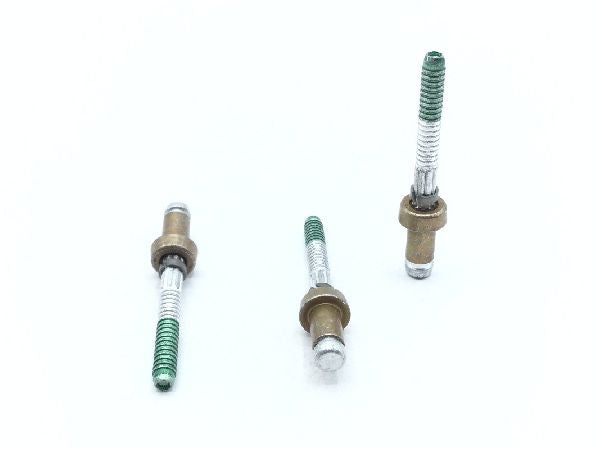

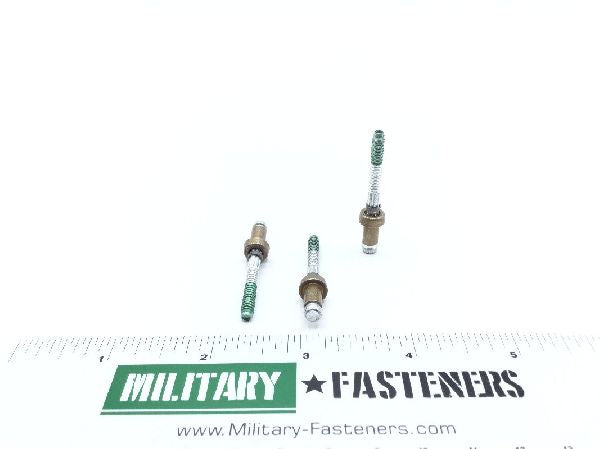

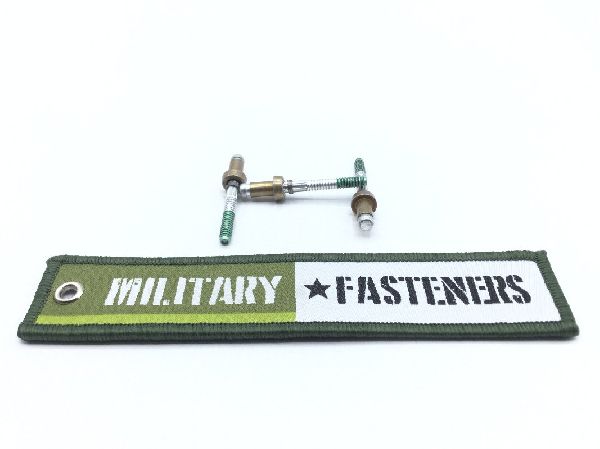

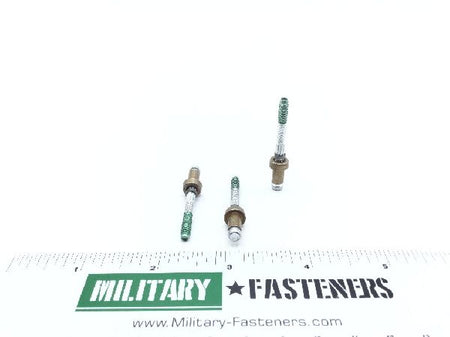

MS90354U0602 Blind Rivet

MS90354U0602 Blind Rivet (2)

MS90354U0602 Blind Rivet (3)

MS90354U0602 Blind Rivet (4)

MS90354U0602 Blind Rivet (5)

MS90354U0602 Blind Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS90354U0602 Blind Rivet

Product Series: MS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $3.19

Units per Pack 10

Price per Pack $31.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $31.90

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification 1st treatment response sleeve or mil-c-83488 military specification 2nd treatment response sleeve

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Expansion Device: Serrated stem-type w
Grip Length: Between 0.120 inches and 0.157 inches
Hardness Rating: 326.0 knoop sleeve and 466.0 knoop sleeve
Head Major Diameter: 0.386 inches
Material Specification: Astm a331 assn standard single material response
Shank Diameter: Between 0.197 inches and 0.199 inches
Shank Style: Self-plugging mechanically locked stem
Shear Strength: 112000 single pounds per square inch
