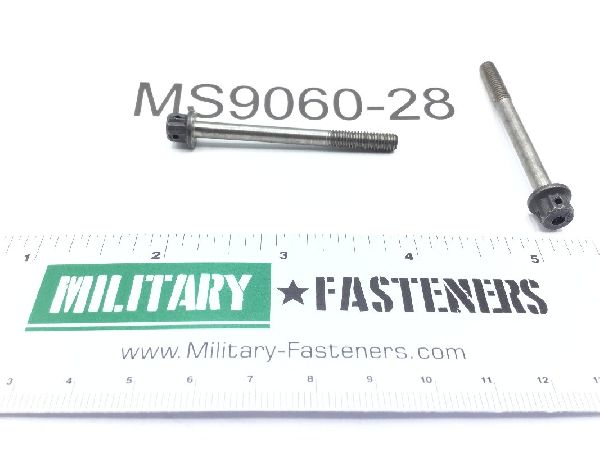

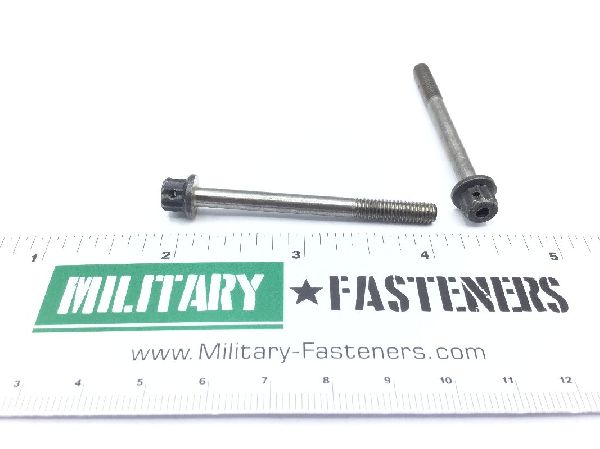

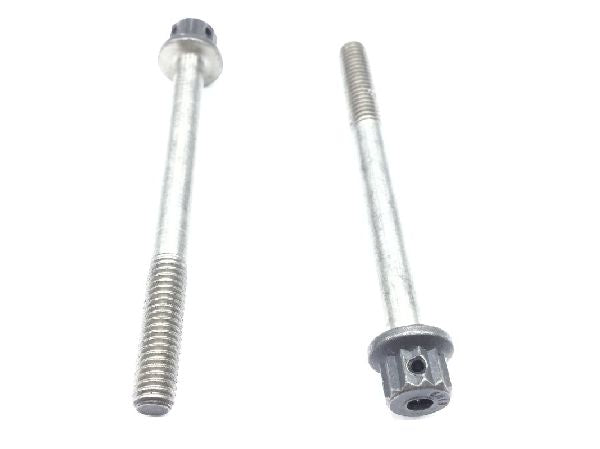

MS9060-28 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $45.05

Units per Pack 2

Price per Pack $90.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $90.10

Add item to quote

Head Style

Double hexagon with hole

Material

Iron alloy 660

Extended Washer Diameter: 0.375 inches
Extended Washer Thickness: Between 0.040 inches and 0.050 inches
Fastener Length: 2.000 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 1.315 inches and 1.375 inches
Hardness Rating: 248.0 brinell standard and 341.0 brinell standard
Head Height: 0.260 inches
Hole Configuration Style: Round longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams 5732 assn standard single material response
Min. Tensile Strength (psi): 130000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Nonstandard Thread Pitch Diameter: +0.1644/+0.1667 inches
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.625 inches and 0.685 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Uns
Width Between Flats: Between 0.243 inches and 0.251 inches
Hole Diameter: 0.047 inches
