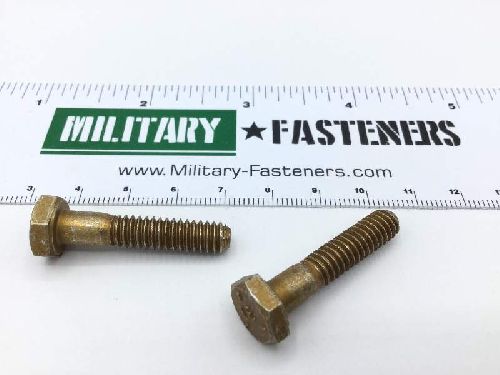

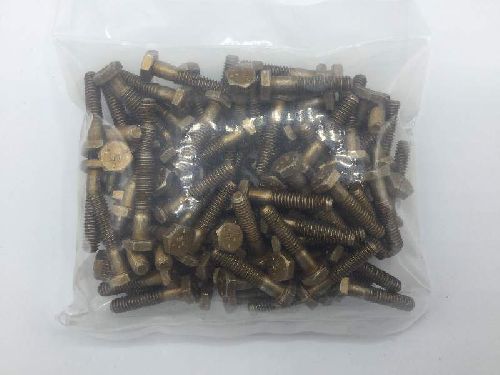

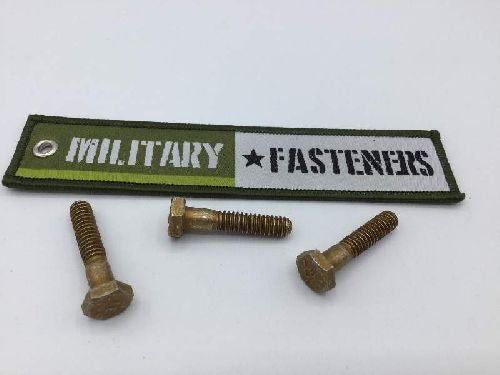

MS90725-10 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.73

Units per Pack 50

Price per Pack $36.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $36.50

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Astm b633 type 2 sc 3 assn standard single treatment response

Thread Class

End Application: Mrap rg-33 and rg-33 auv
Fastener Length: 1.250 inches
Hardness Rating: 33.0 rockwell c and 39.0 rockwell c
Head Height: Between 0.150 inches and 0.163 inches
Material Specification: Grade bd assn standard single material response grade8 assn standard single material response or astm a354 sae j429
Min. Tensile Strength (psi): 150000 pounds per square inch
Minimum Yield Strength: 120000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.750 inches and 0.938 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.428 inches and 0.438 inches
