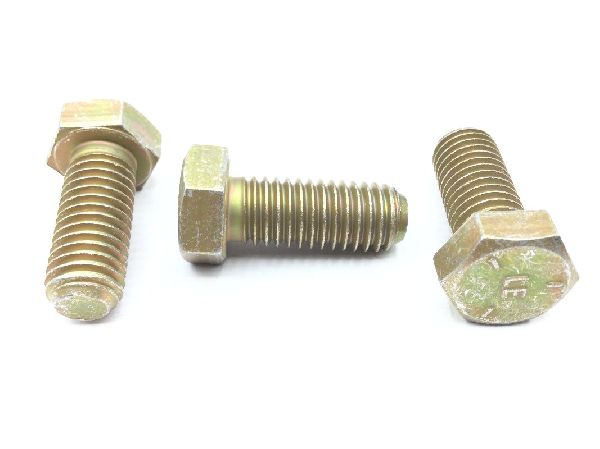

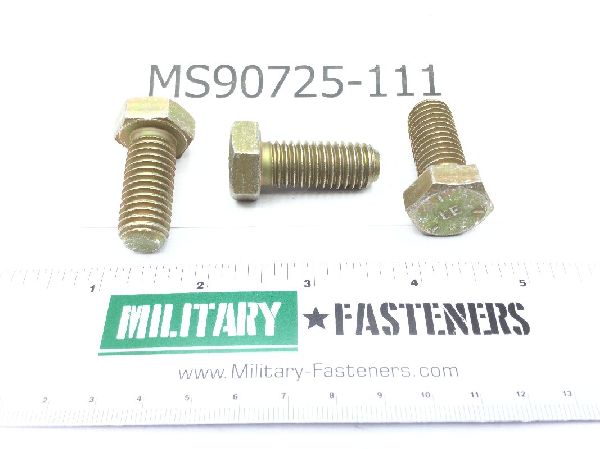

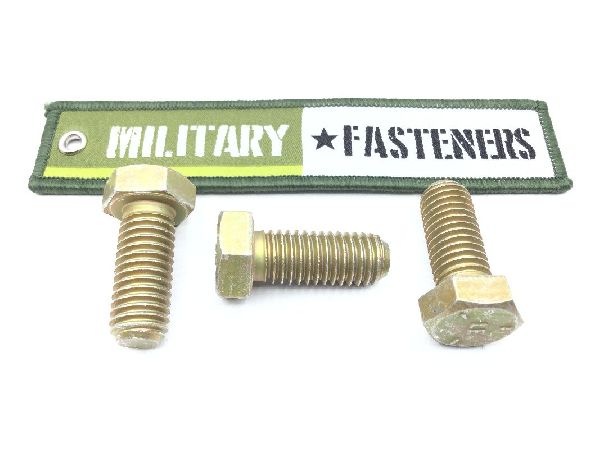

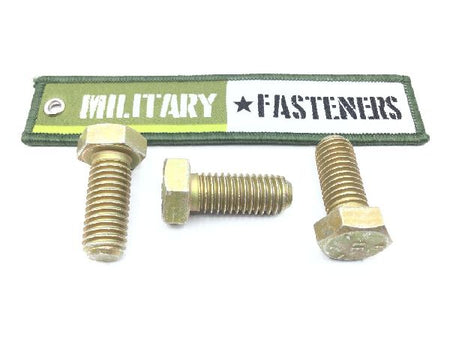

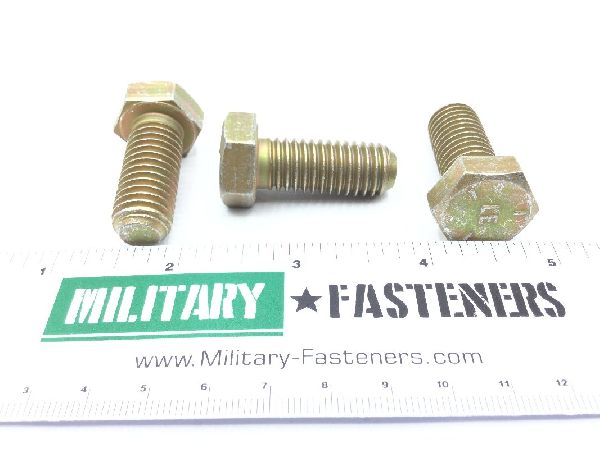

MS90725-111 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $1.39

Units per Pack 25

Price per Pack $34.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $34.75

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 1.188 inches and 1.250 inches
Hardness Rating: 25.0 rockwell c and 34.0 rockwell c
Head Height: Between 0.302 inches and 0.323 inches
Material Specification: Sae gr 5 assn standard single material response
Min. Tensile Strength (psi): 120000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and 10p style and 5 grade
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: 1.250 inches
Thread Qty Per Inch (tpi): 13
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.736 inches and 0.750 inches
