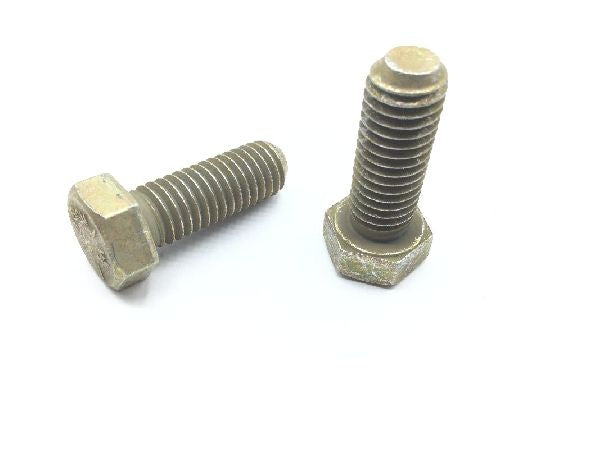

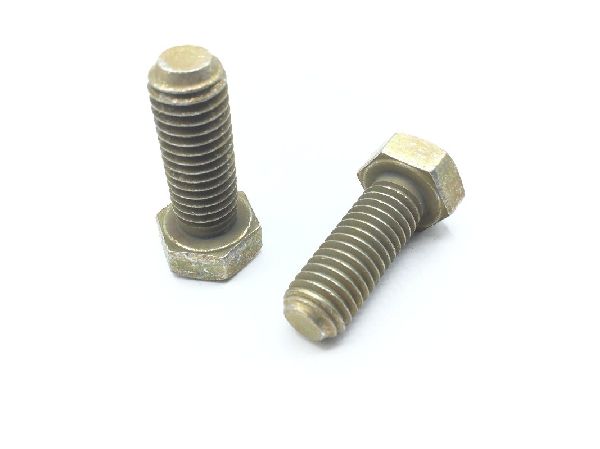

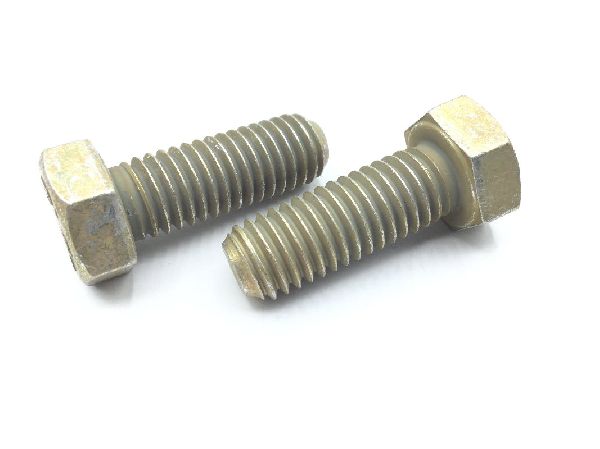

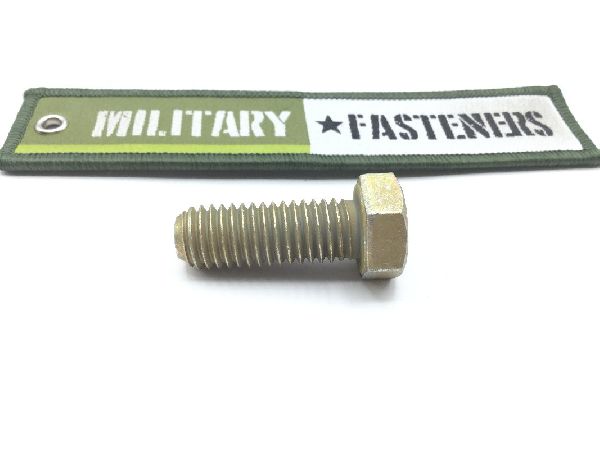

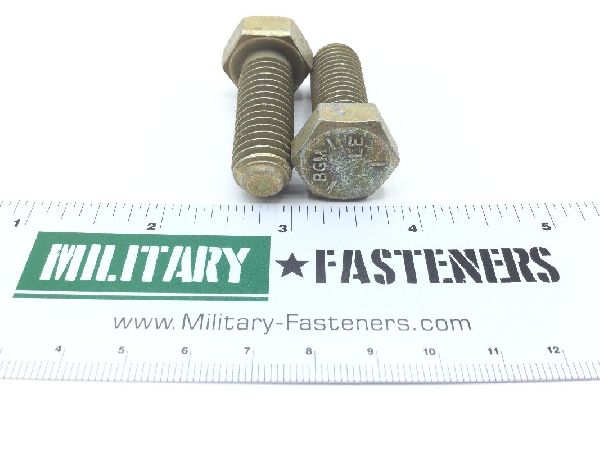

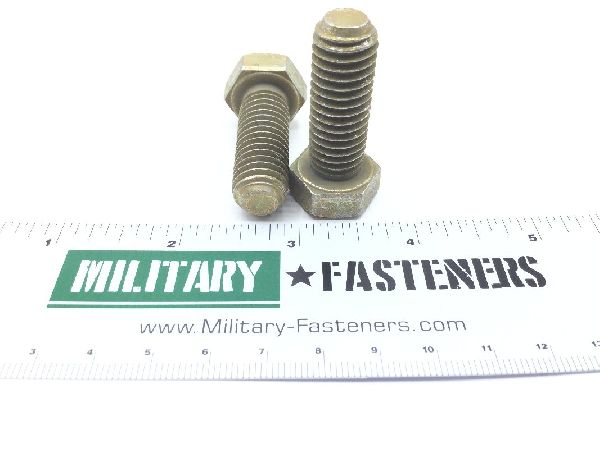

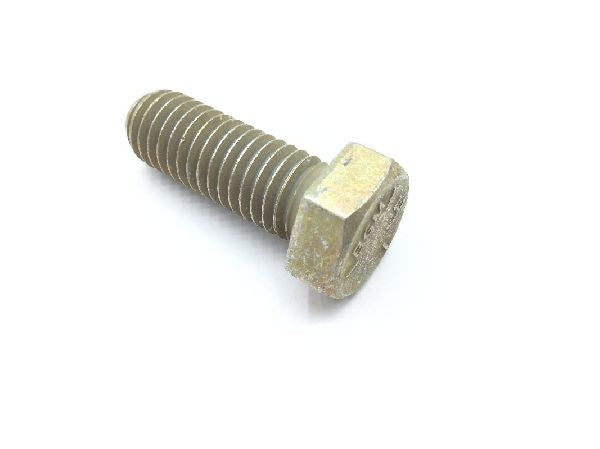

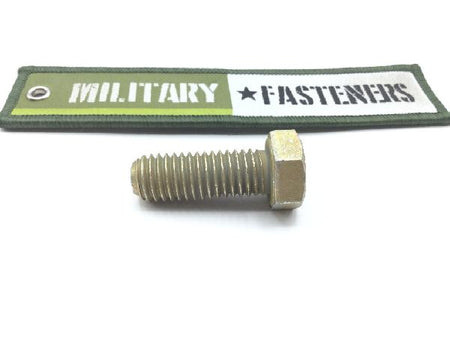

MS90725-112 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $4.85

Units per Pack 10

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: 1.375 inches
Hardness Rating: 23.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.302 inches and 0.323 inches
Material Specification: Sae gr 5 assn standard single material response
Min. Tensile Strength (psi): 120000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: 1.375 inches
Thread Qty Per Inch (tpi): 13
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.736 inches and 0.750 inches
