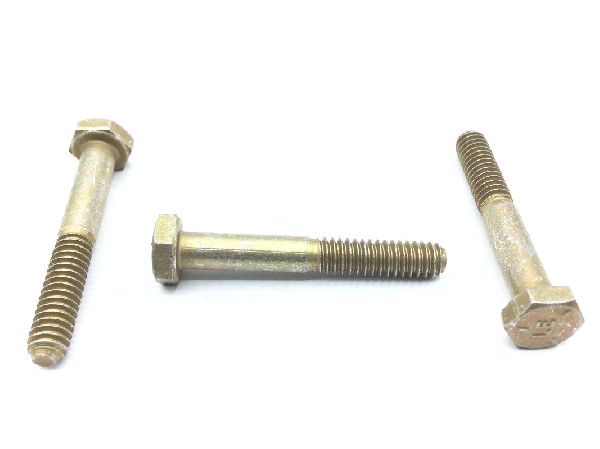

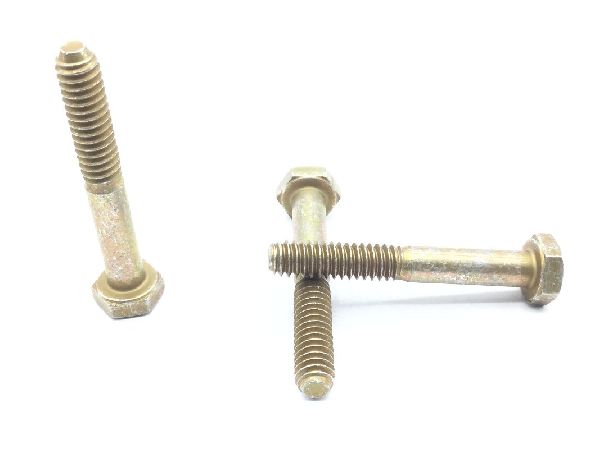

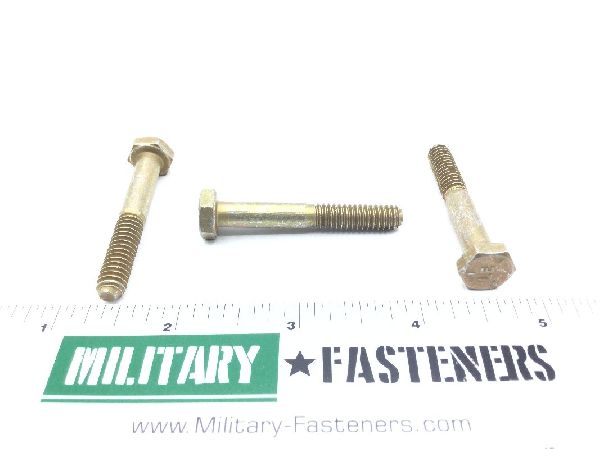

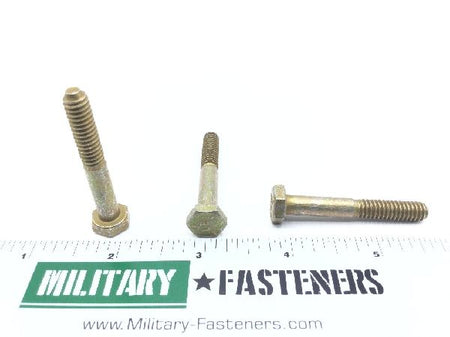

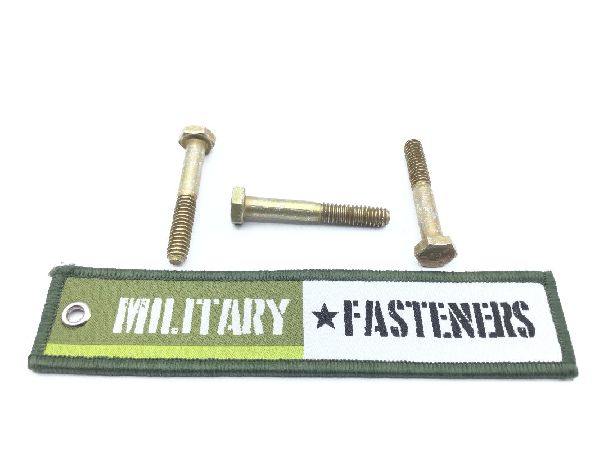

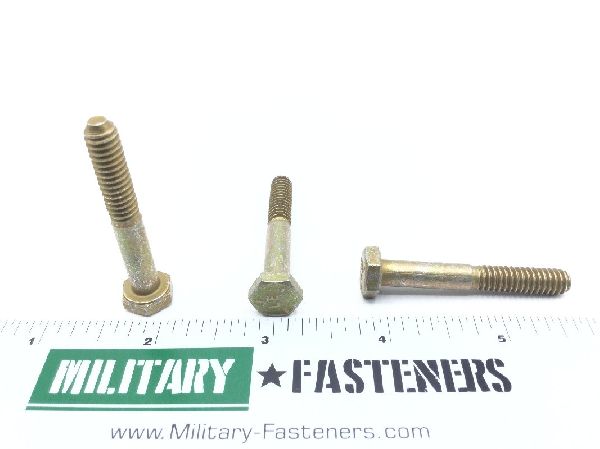

MS90725-13 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.42

Units per Pack 100

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response qq-p-416 type 2

Thread Class

Fastener Length: Between 1.688 inches and 1.750 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.750 inches and 1.000 inches
Hardness Rating: 25.0 rockwell c and 34.0 rockwell c
Head Height: Between 0.150 inches and 0.163 inches
Material Specification: Sae gr 5 assn standard single material response
Min. Tensile Strength (psi): 120000 pounds per square inch
Nondefinitive Specification/std Data: 1 type and 10p style and 5 grade
Surface Finish: 63.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.750 inches and 0.938 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.428 inches and 0.438 inches
