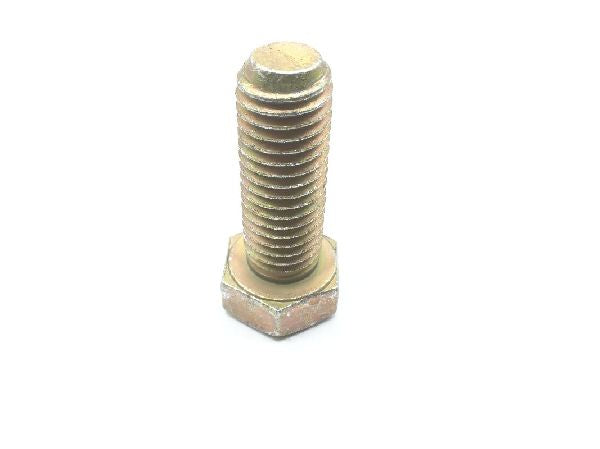

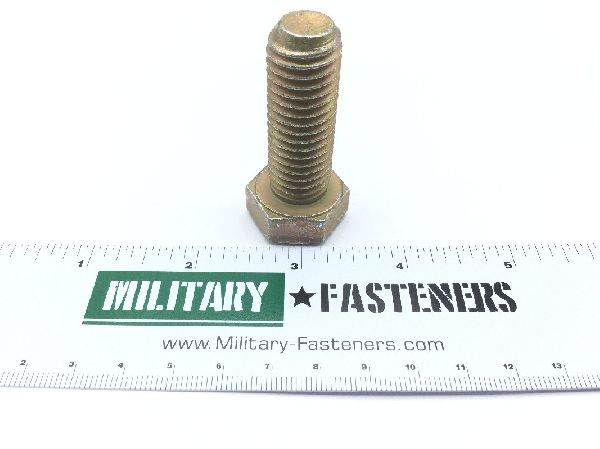

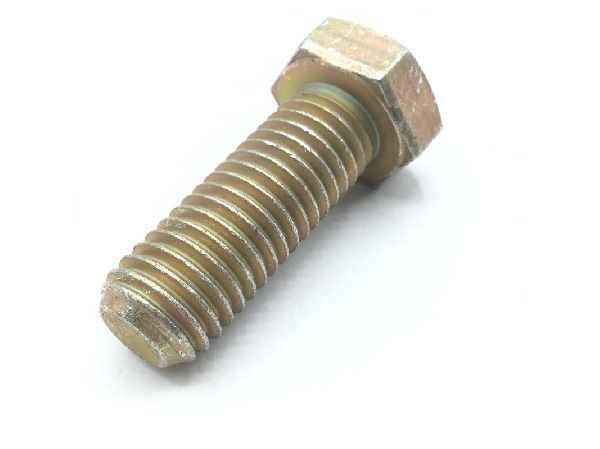

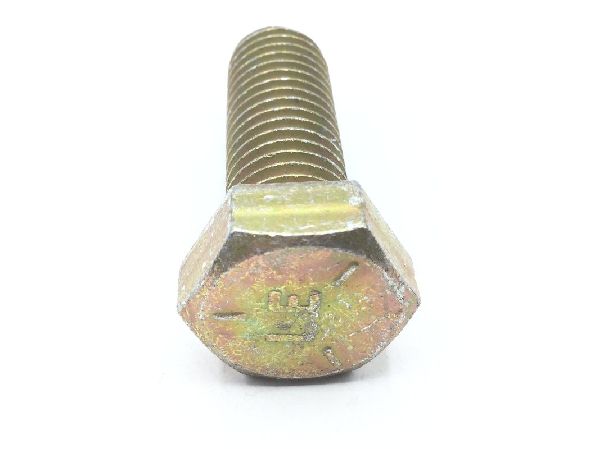

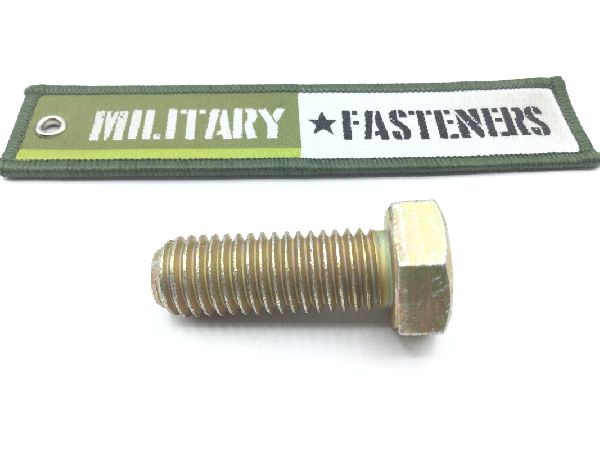

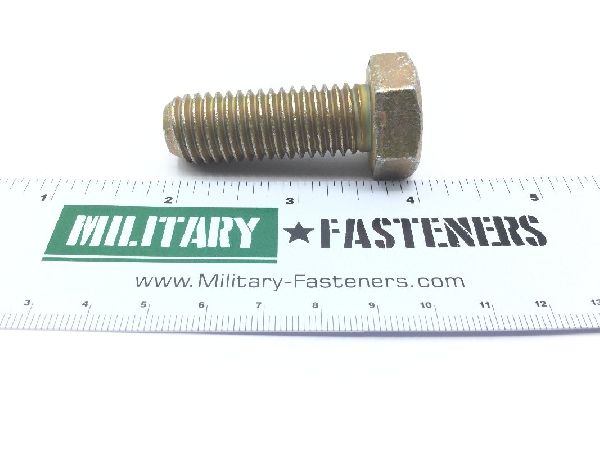

MS90725-163 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $3.46

Units per Pack 10

Price per Pack $34.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $34.60

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: Between 1.688 inches and 1.750 inches
Hardness Rating: 25.0 rockwell c and 34.0 rockwell c
Head Height: Between 0.378 inches and 0.403 inches
Material Specification: Sae gr 5 assn standard single material response
Min. Tensile Strength (psi): 120000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and 10p style and 5 grade
Surface Finish: 63.0 microinches threads
Thread Diameter: 0.625 inches
Thread Direction: Right-hand
Thread Length: Between 1.500 inches and 1.727 inches
Thread Qty Per Inch (tpi): 11
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.922 inches and 0.937 inches
