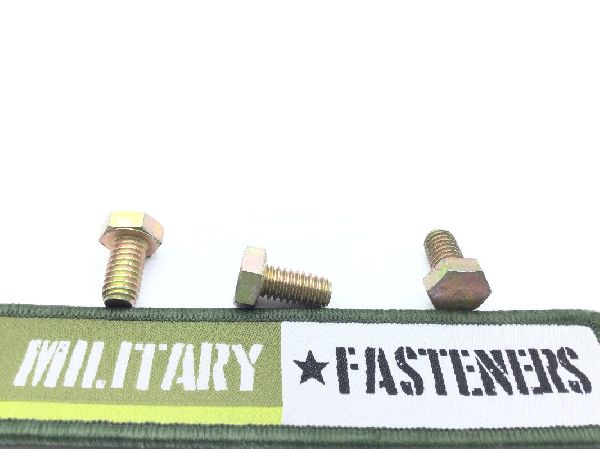

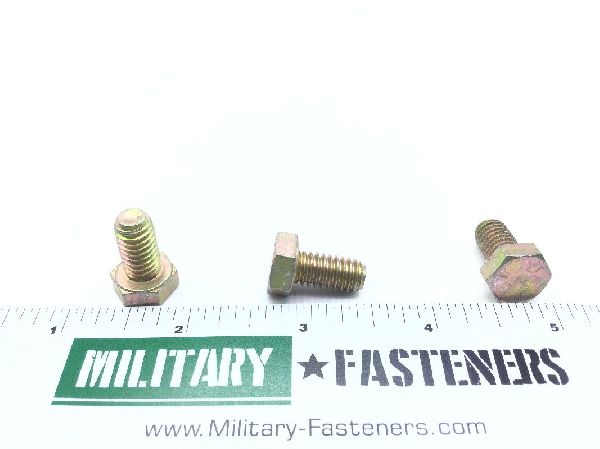

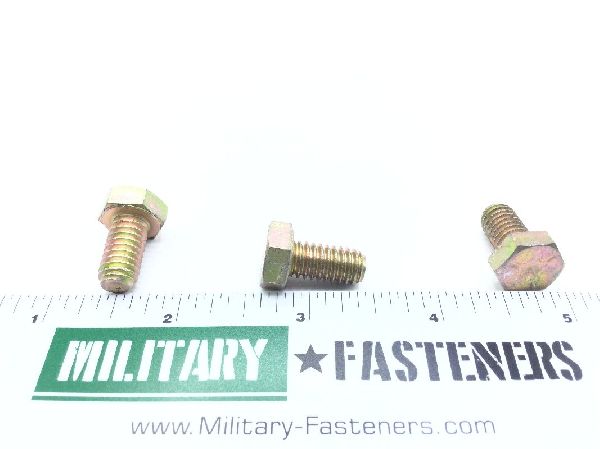

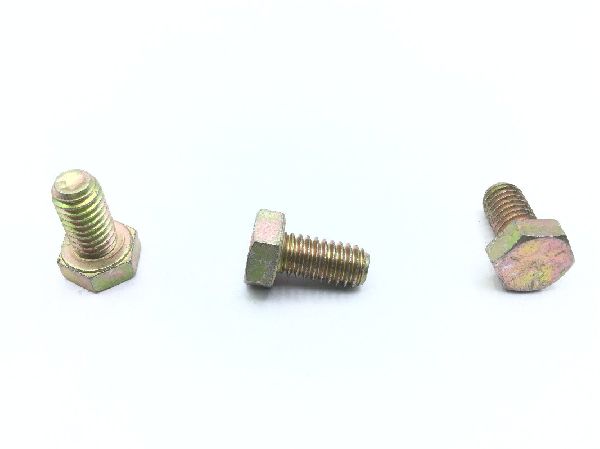

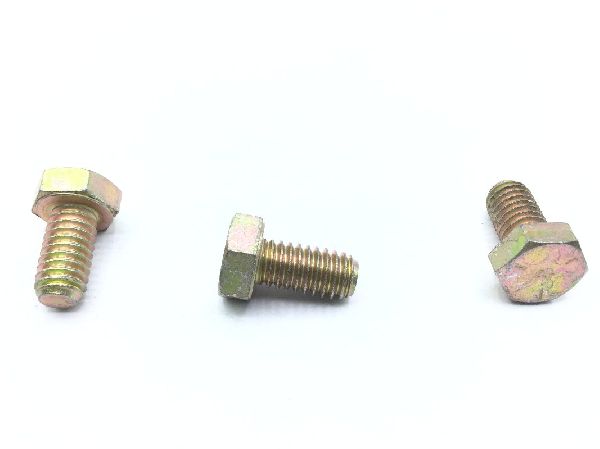

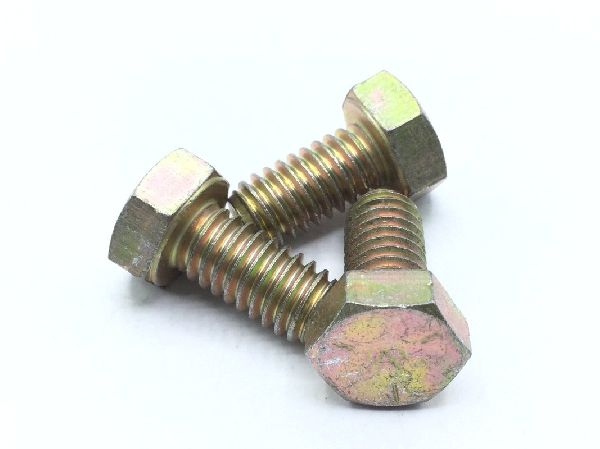

MS90725-31 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $4.85

Units per Pack 10

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

type 2 cl 2 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: 0.625 inches
Features: Finished head
Features Provided: Finished head
Hardness Rating: 23.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.195 inches and 0.211 inches
Material Specification: Sae gr 5 assn standard single material response
Min. Tensile Strength (psi): 120000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and 10p style and 5 grade
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.625 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.489 inches and 0.500 inches
