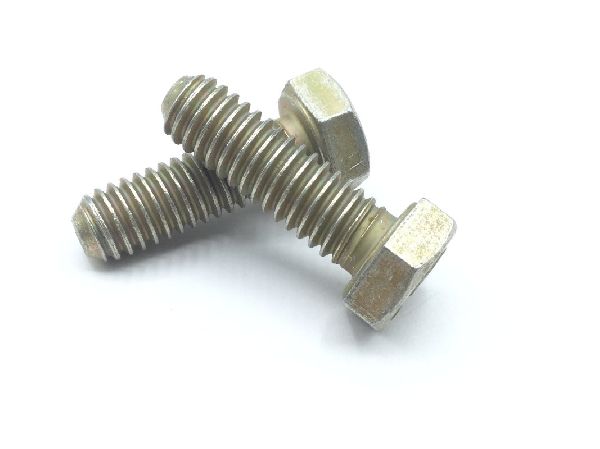

MS90725-34 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.94

Units per Pack 25

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification all treatment responses

Thread Class

Fastener Length: Between 0.969 inches and 1.000 inches
Features: Finished head
Features Provided: Finished head
Hardness Rating: 25.0 rockwell c and 34.0 rockwell c
Head Height: Between 0.195 inches and 0.211 inches
Iii End Application: Mrap - m-atv w/cs13 pop
Material Specification: Sae gr 5 assn standard single material response
Min. Tensile Strength (psi): 120000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and 10p style
Surface Finish: 63.0 microinches threads
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.874 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.489 inches and 0.500 inches
