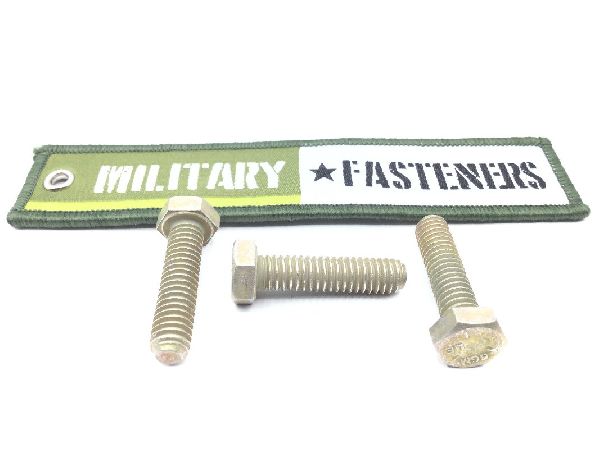

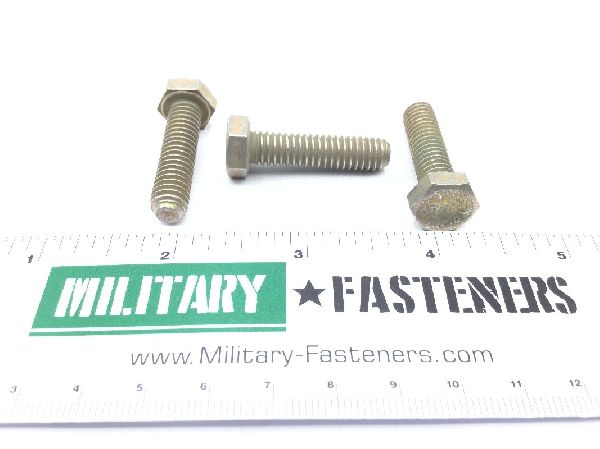

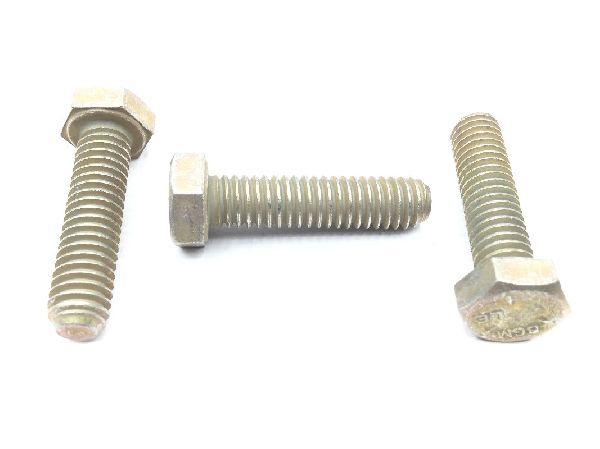

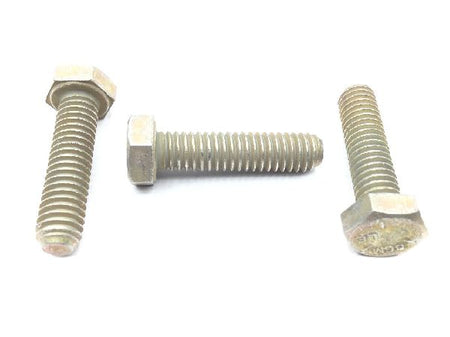

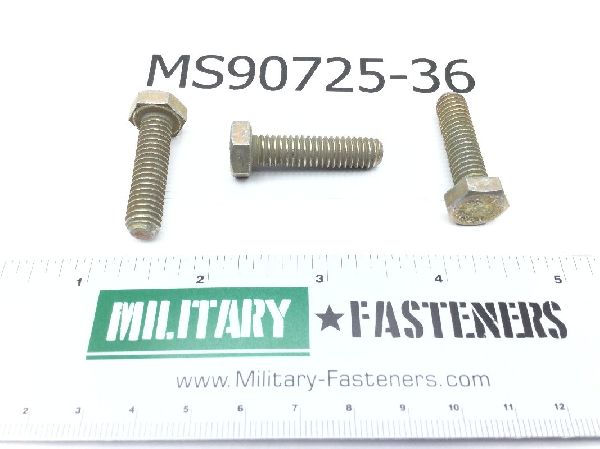

MS90725-36 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $0.68

Units per Pack 50

Price per Pack $34.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.00

Add item to quote

Head Style

Hexagon

Material

Steel comp 1013 or steel comp 1015 or steel comp 1016 or steel comp 1017 or steel comp 1018 or steel comp 1019 or steel comp 1020 or steel comp 1021 or steel comp 1022 or steel comp 1034 or steel comp 1025 or steel comp 1026 or steel com

Surface Treatment

Cl 2 federal specification single treatment response qq-p-416 type 2

Thread Class

Fastener Length: Between 1.188 inches and 1.250 inches
Features: Finished head
Features Provided: Finished head
Hardness Rating: 25.0 rockwell c and 34.0 rockwell c
Head Height: Between 0.195 inches and 0.211 inches
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 120000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and 10p style and 5 grade
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.875 inches and 1.062 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.489 inches and 0.500 inches
