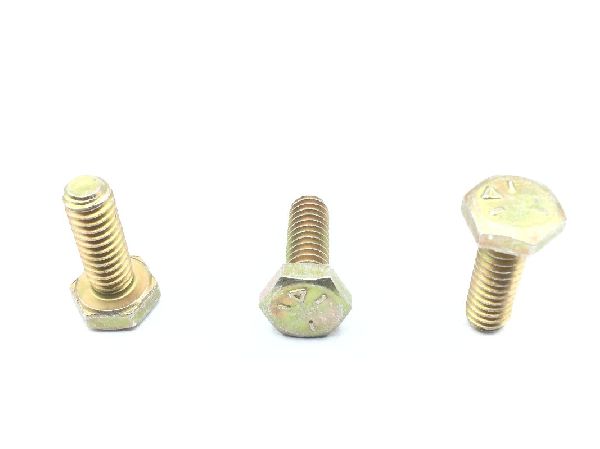

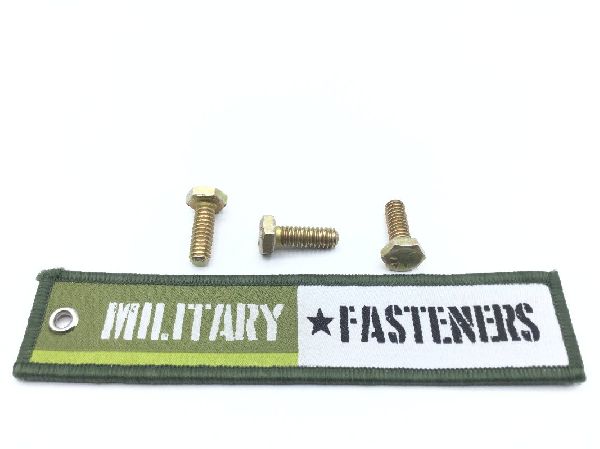

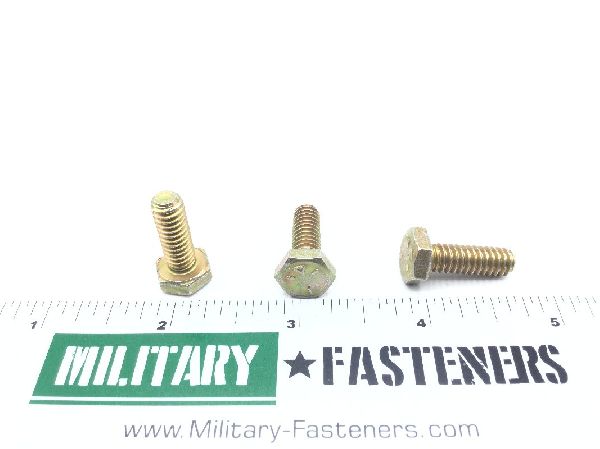

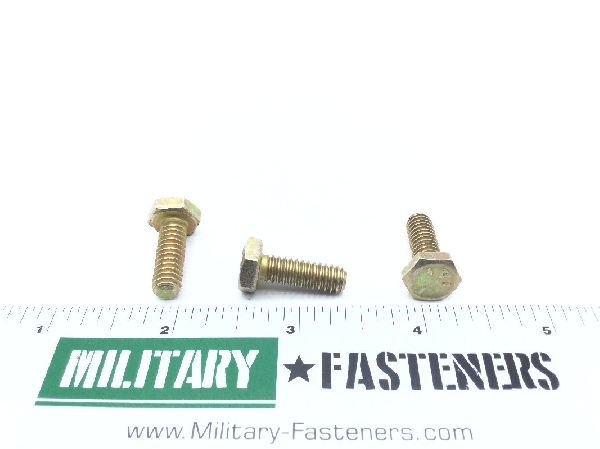

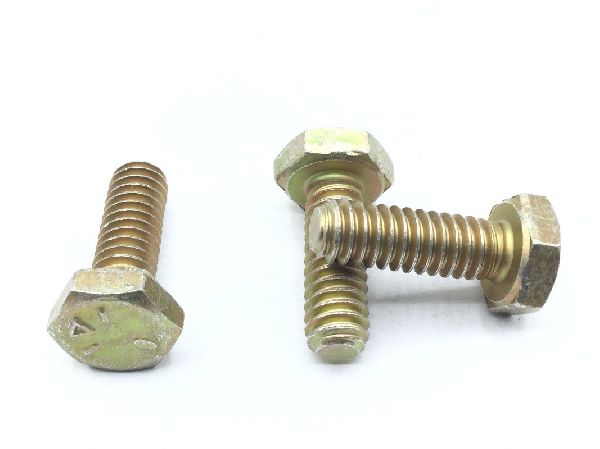

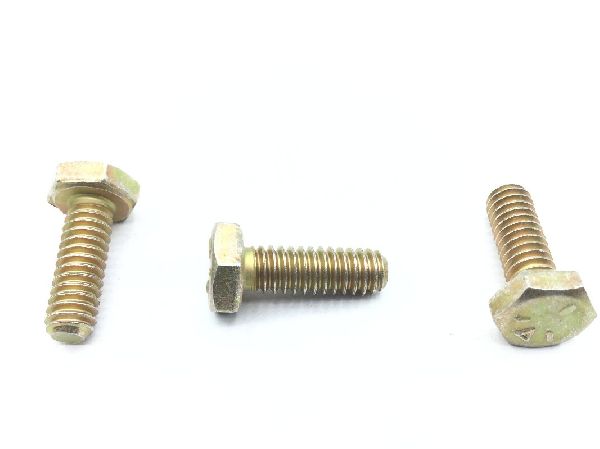

MS90725-6 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.34

Units per Pack 100

Price per Pack $34.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $34.00

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Ty2cl3 federal specification single treatment response sae/ams qq-p-416

Thread Class

Fastener Length: 0.750 inches
Hardness Rating: 23.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.150 inches and 0.163 inches
Iii End Application: 3990-01-444-6174 bitum distributor; mrap - cougar tow
Material Specification: Sae gr 5 assn standard single material response
Min. Tensile Strength (psi): 120000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.625 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.428 inches and 0.438 inches
