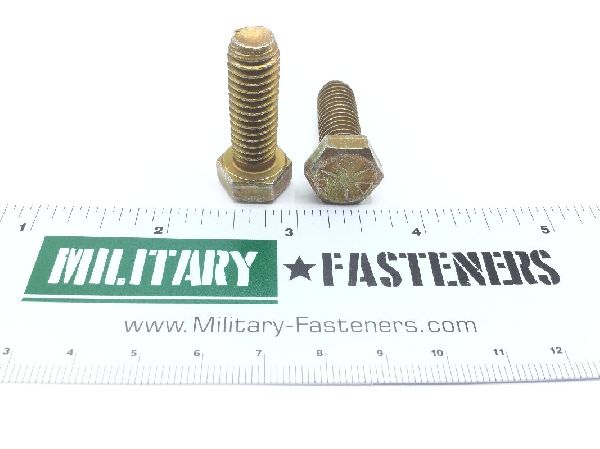

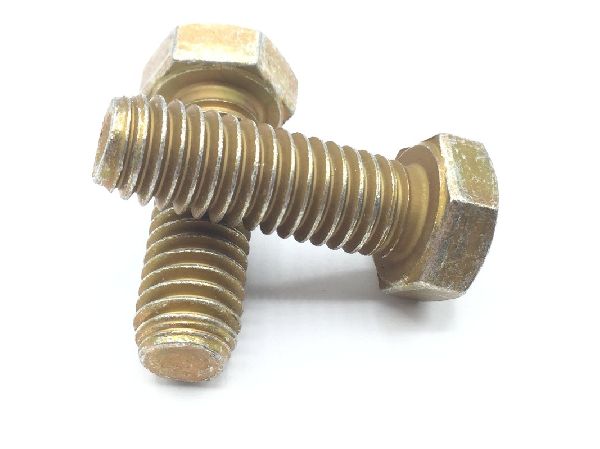

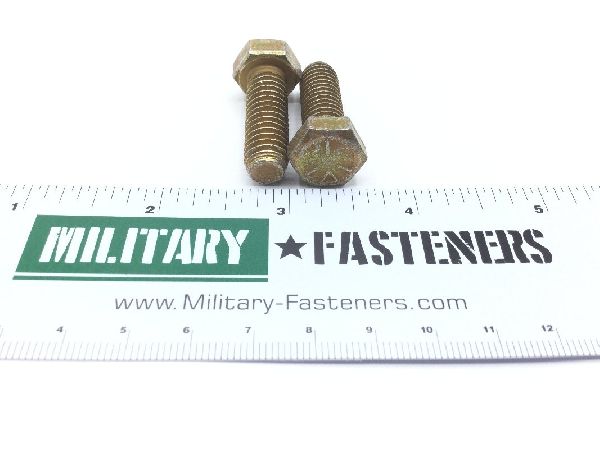

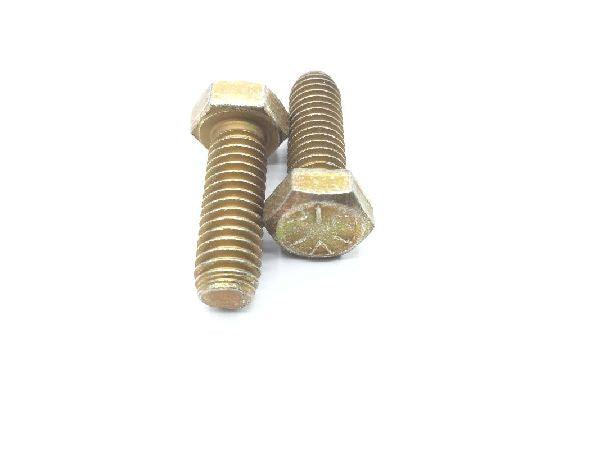

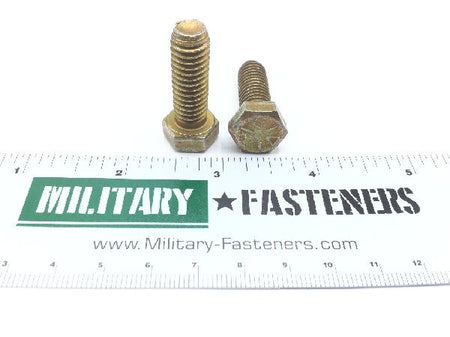

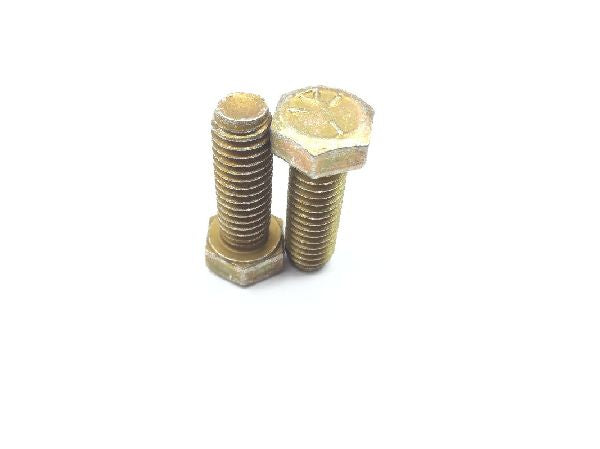

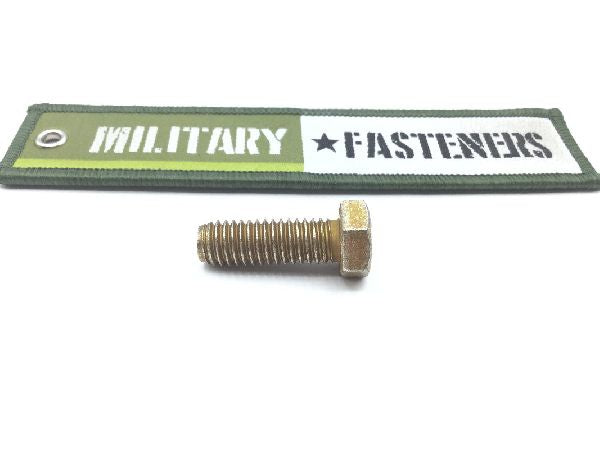

MS90725-61 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $1.36

Units per Pack 20

Price per Pack $27.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $27.20

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: 1.125 inches
Hardness Rating: 23.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.226 inches and 0.243 inches
Material Specification: Sae gr 5 assn standard single material response
Min. Tensile Strength (psi): 120000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 1.125 inches
Thread Qty Per Inch (tpi): 16
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.551 inches and 0.562 inches
