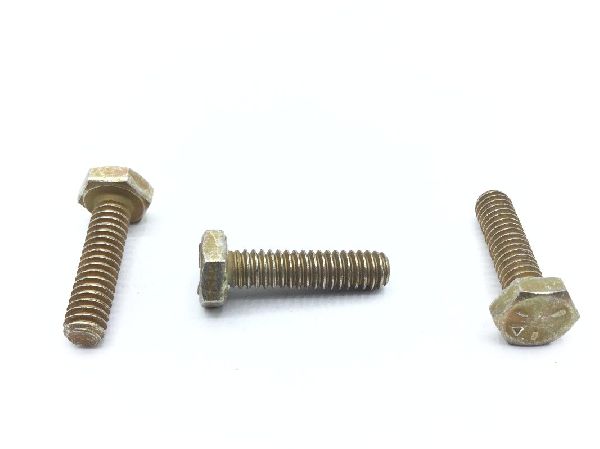

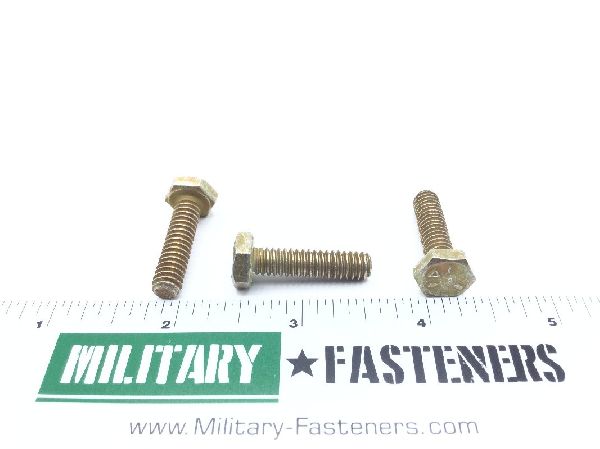

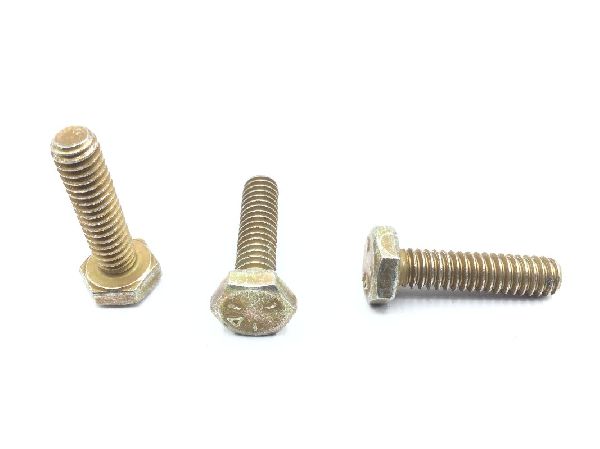

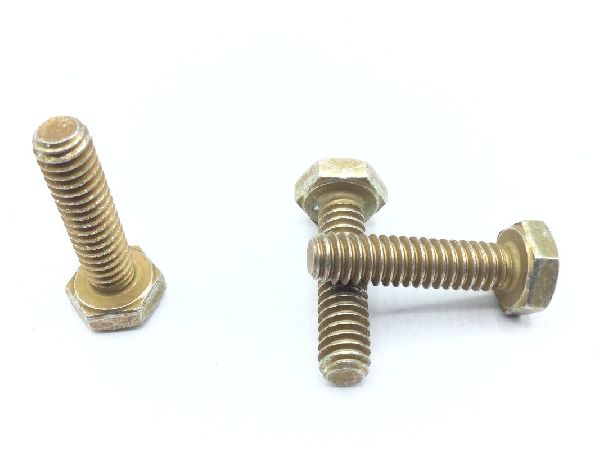

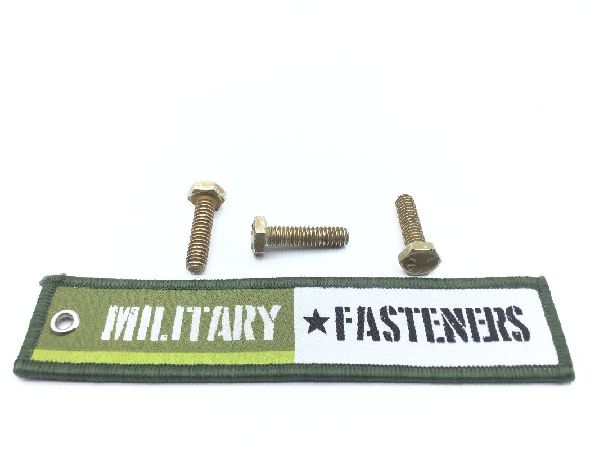

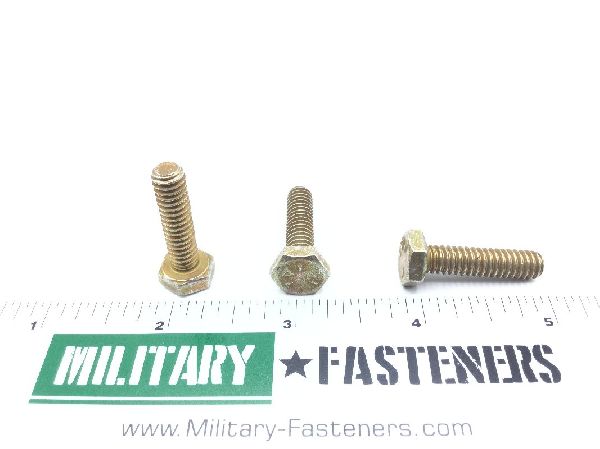

MS90725-8 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.34

Units per Pack 100

Price per Pack $34.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $34.00

Add item to quote

Head Style

Hexagon

Material

Steel comp 1013 and steel comp 1015 or steel comp 1016 or steel comp 1017 or steel comp 1018 or steel comp 1019 or steel comp 1020 or steel comp 1021 or steel comp 1022 or steel comp 1023 or steel comp 1524 or steel comp 1025 or steel co

Surface Treatment

Cl2 federal specification single treatment response ty2 qq-p-416

Thread Class

Fastener Length: Between 0.969 inches and 1.000 inches
Hardness Rating: 25.0 rockwell c and 34.0 rockwell c
Head Height: Between 0.150 inches and 0.163 inches
Iii End Application: Mrap - m-atv with cs13 pop
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 120000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and 10p style and 5 grade
Surface Finish: 63.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.750 inches and 0.938 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.428 inches and 0.438 inches
