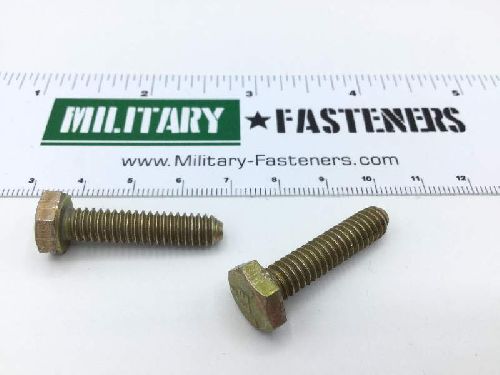

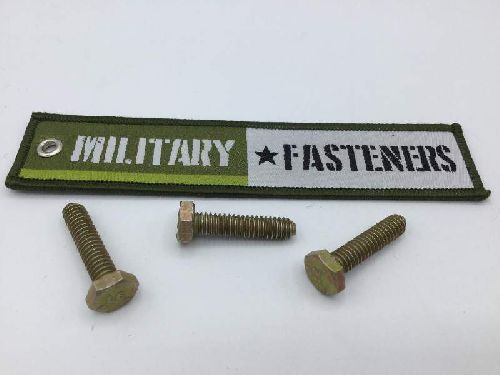

MS90725-9 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.39

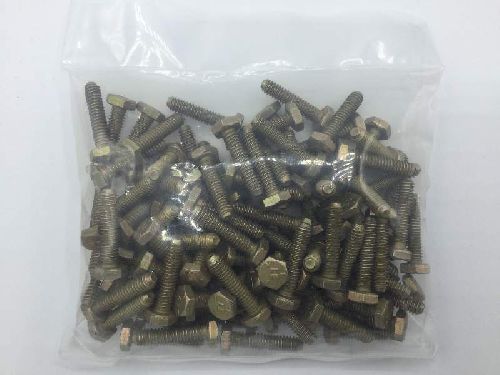

Units per Pack 100

Price per Pack $39.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $39.00

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Type 2 cl 3 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: 1.125 inches
Hardness Rating: 23.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.150 inches and 0.163 inches
Material Specification: Sae gr 5 assn standard single material response
Min. Tensile Strength (psi): 120 pounds per square inch
Minimum Yield Strength: 85 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.750 inches and 0.938 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.428 inches and 0.438 inches
