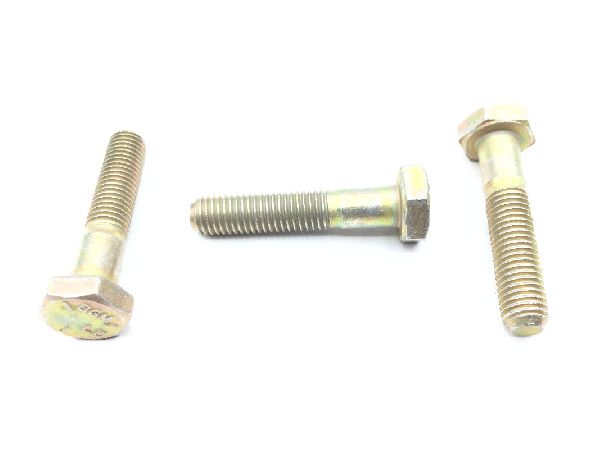

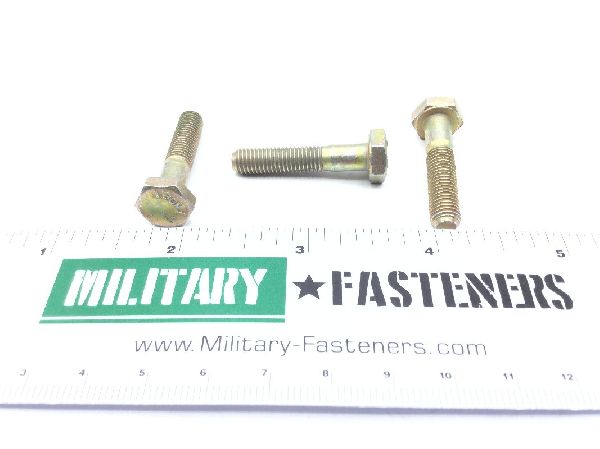

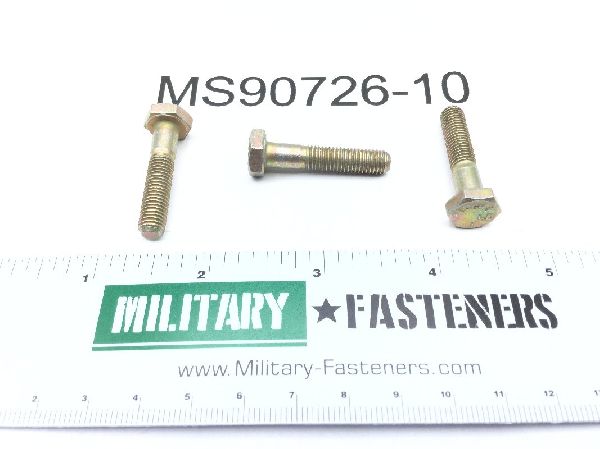

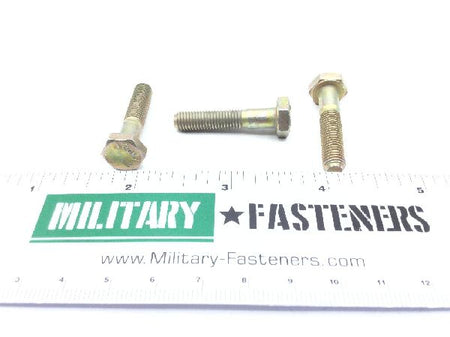

MS90726-10 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $0.97

Units per Pack 50

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Astm b633 type 2 sc 3 assn standard single treatment response

Thread Class

Fastener Length: 1.250 inches
Hardness Rating: 32.0 rockwell c and 38.0 rockwell c
Head Height: Between 0.150 inches and 0.163 inches
Material Specification: Sae j429 gr 8 assn standard single material response
Min. Tensile Strength (psi): 150000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and 10 style and 8 grade
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.750 inches and 0.938 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.438 inches
