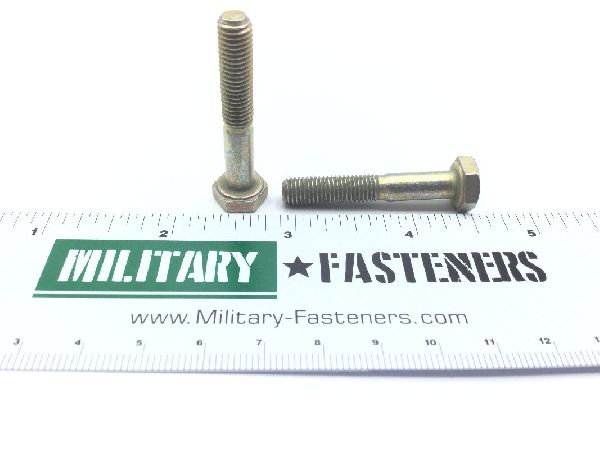

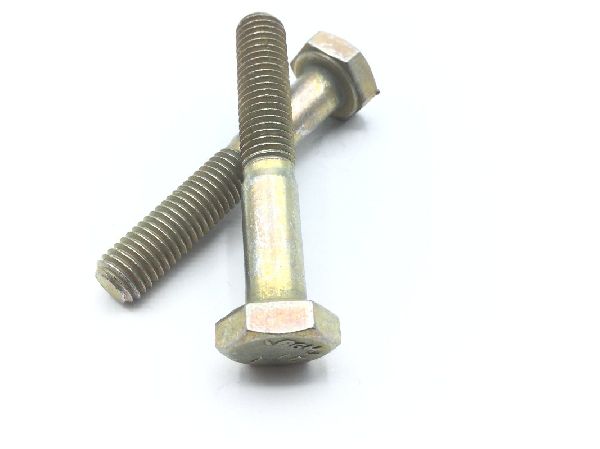

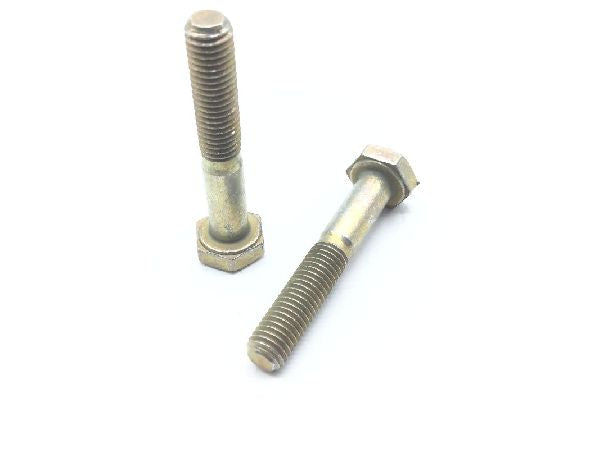

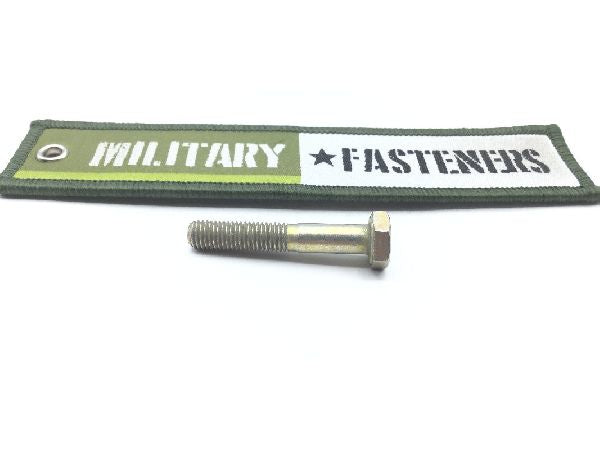

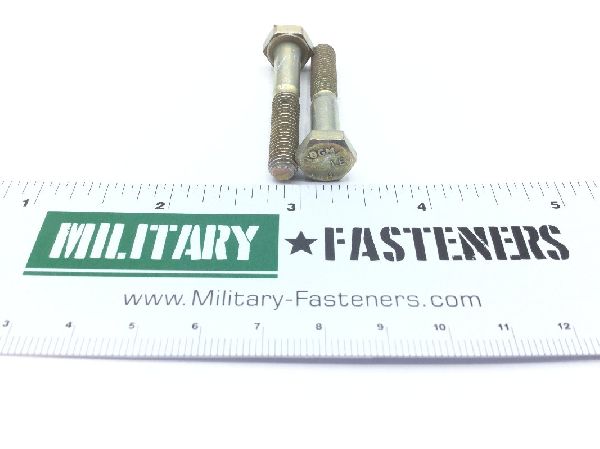

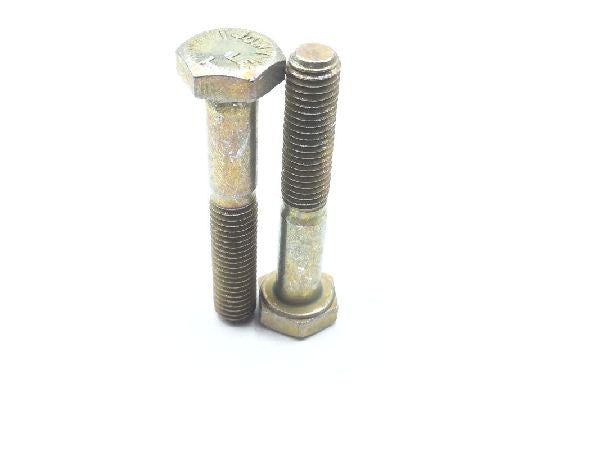

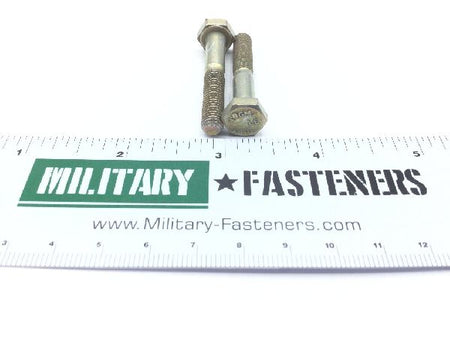

MS90726-12 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Astm b633 type 2 sc 3 assn standard single treatment response

Thread Class

Fastener Length: 1.500 inches
Hardness Rating: 32.0 rockwell c and 38.0 rockwell c
Head Height: Between 0.150 inches and 0.163 inches
Material Specification: Sae j429 gr 8 assn standard single material response
Min. Tensile Strength (psi): 150000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and 10p style and 8 grade
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.750 inches and 0.938 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.438 inches
