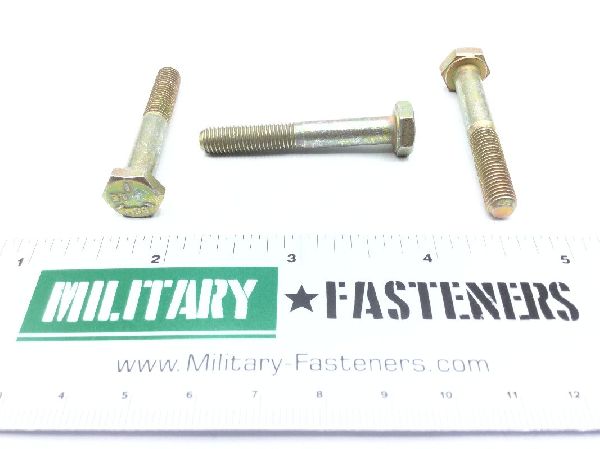

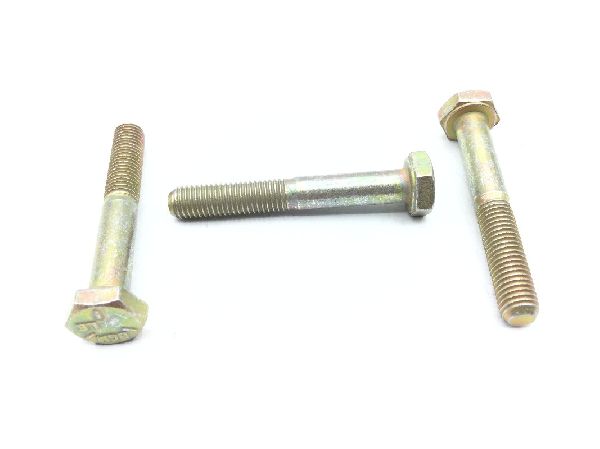

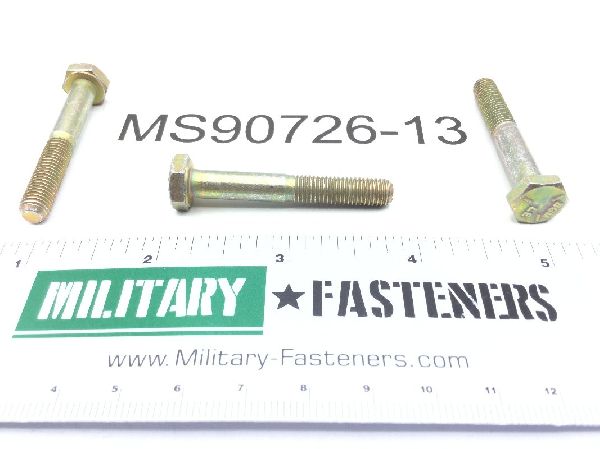

MS90726-13 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $9.70

Units per Pack 5

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Hexagon

Material

Steel comp 1013 or steel comp 1015 or steel comp 1016 or steel comp 1017 or steel comp 1018 or steel comp 1019 or steel comp 1020 or steel comp 1021 or steel comp 1022 or steel comp 1023 or steel comp 1524 or steel comp 1025 or steel com

Surface Treatment

Astm b633 type 2 sc 3 assn standard single treatment response

Thread Class

Fastener Length: Between 1.688 inches and 1.750 inches
Hardness Rating: 32.0 rockwell c and 38.0 rockwell c
Head Height: Between 0.150 inches and 0.163 inches
Material Specification: Sae j429 assn standard all material responses
Min. Tensile Strength (psi): 150000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and 10p style and 8 grade
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.750 inches and 0.938 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.438 inches
