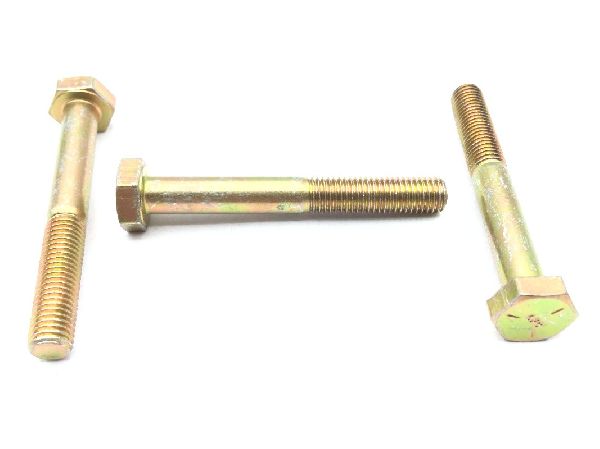

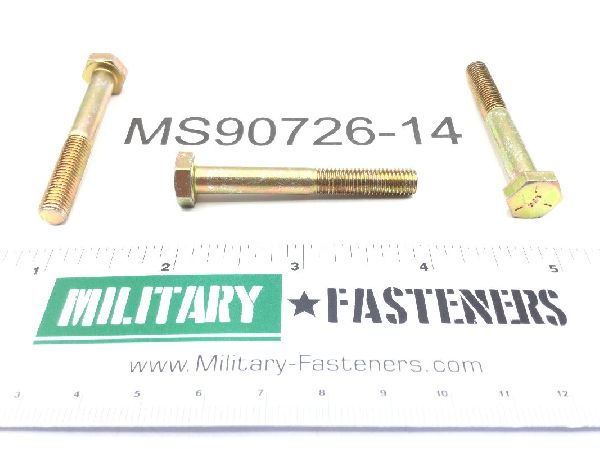

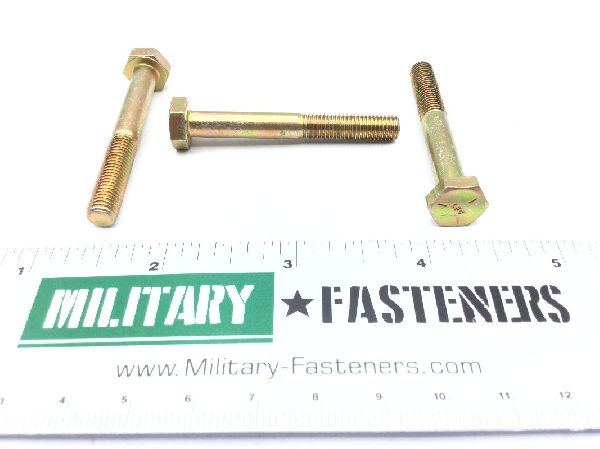

MS90726-14 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.39

Units per Pack 20

Price per Pack $27.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $27.80

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Astm b633 type 2 sc 3 assn standard single treatment response

Thread Class

End Application: Rg-33 auv mrap
Fastener Length: 2.00 inches
Hardness Rating: 32.0 rockwell c and 38.0 rockwell c
Head Height: Between 0.15 inches and 0.163 inches
Material Specification: Sae gr 8 assn standard single material response
Min. Tensile Strength (psi): 150000 pounds per square inch
Minimum Yield Strength: 120000 pounds per square inch
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: Between 0.75 inches and 0.938 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.438 inches
