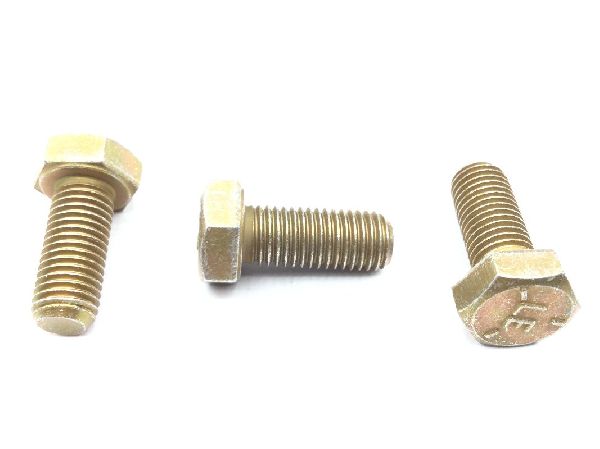

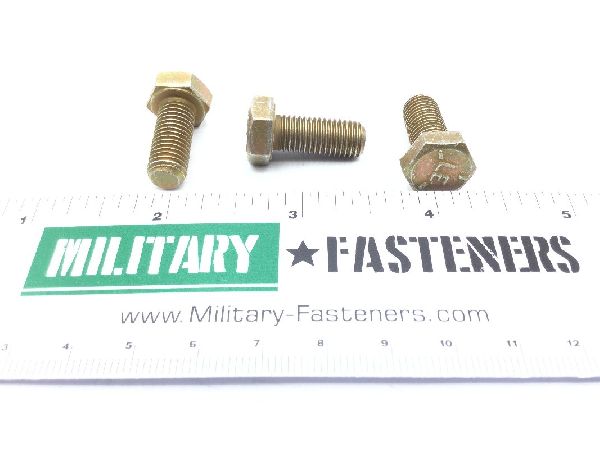

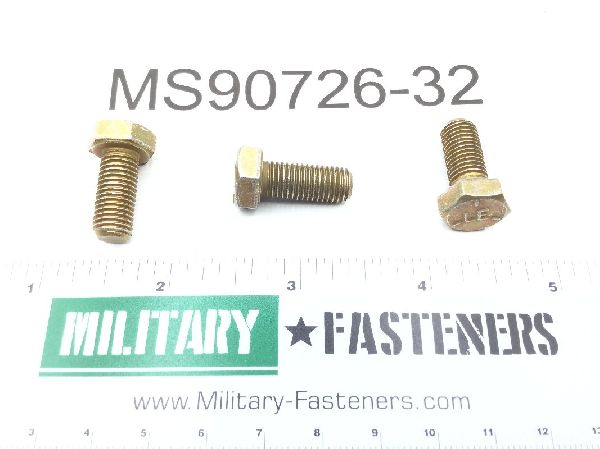

MS90726-32 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $1.11

Units per Pack 25

Price per Pack $27.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $27.75

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Astm b633 type 2 sc 3 assn standard single treatment response

Thread Class

Fastener Length: Between 0.719 inches and 0.750 inches
Features: Finished head
Features Provided: Finished head
Hardness Rating: 32.0 rockwell c and 38.0 rockwell c
Head Height: Between 0.195 inches and 0.211 inches
Material Specification: Sae gr 8 assn standard single material response
Min. Tensile Strength (psi): 150000 pounds per square inch
Surface Finish: 63.0 microinches threads
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.615 inches and 0.719 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.489 inches and 0.500 inches
