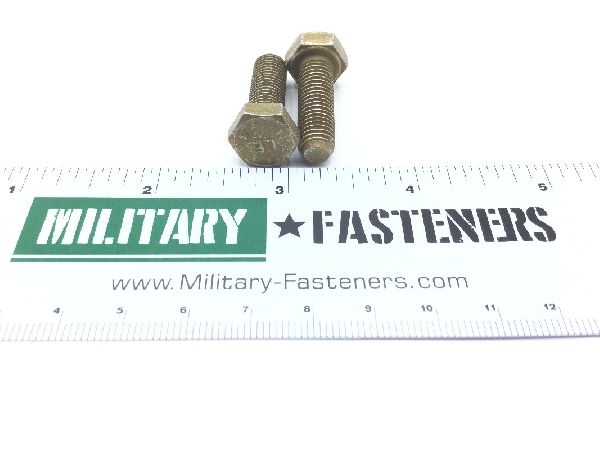

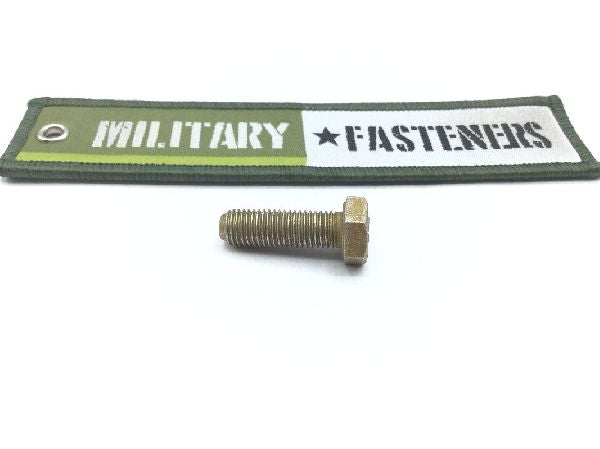

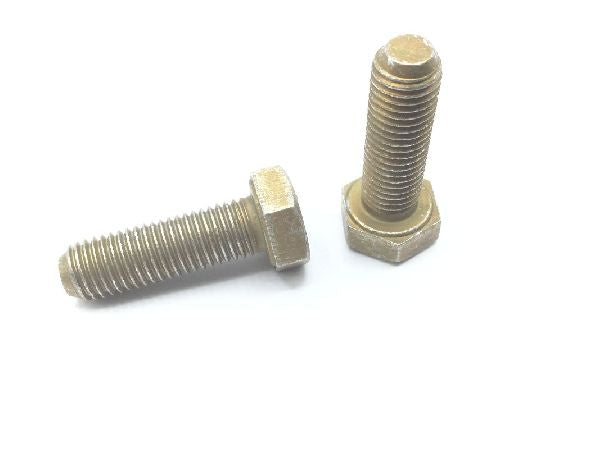

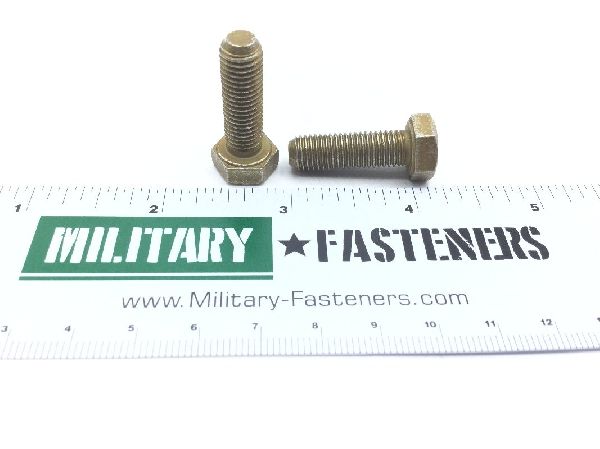

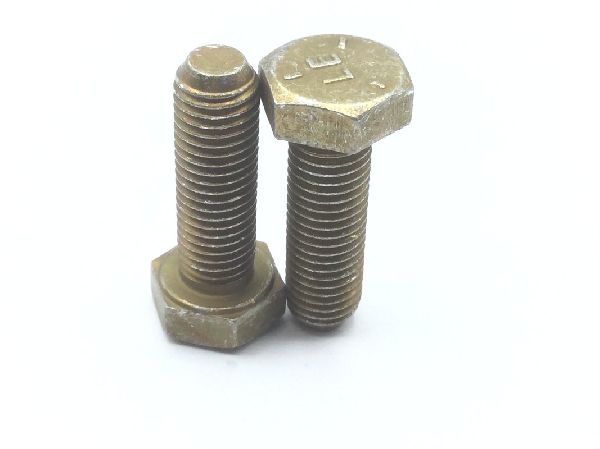

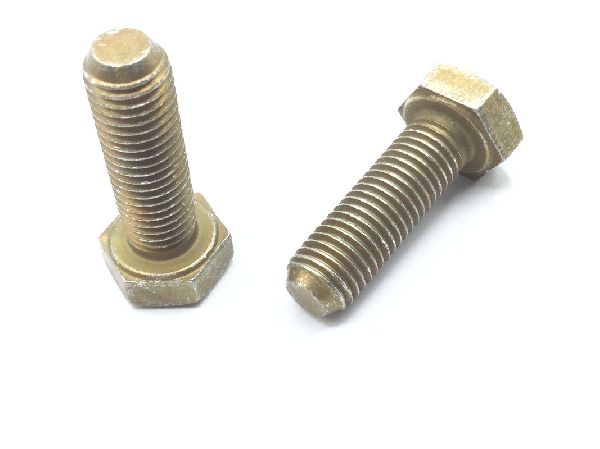

MS90726-34 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $0.69

Units per Pack 50

Price per Pack $34.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.50

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Type 2 class 2 federal specification single treatment response qq-p-416

Thread Class

Fastener Length: Between 0.969 inches and 1.00 inches
Features: Finished head
Features Provided: Finished head
Hardness Rating: 25.0 rockwell and 34.0 rockwell
Head Height: Between 0.195 inches and 0.211 inches
Material Specification: Sae j429 assn standard all material responses
Min. Tensile Strength (psi): 120000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and 10p style and 5 grade
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.886 inches and 1.000 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.489 inches and 0.500 inches
