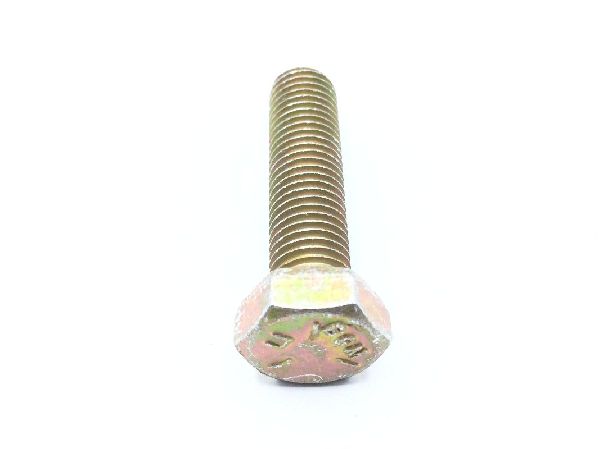

MS90726-36 Machine Bolt

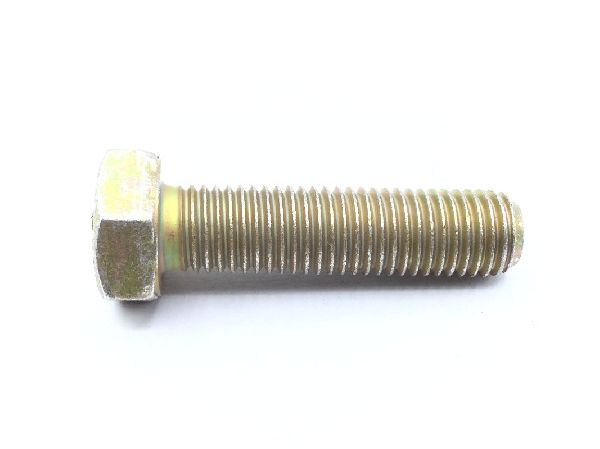

MS90726-36 Machine Bolt (2)

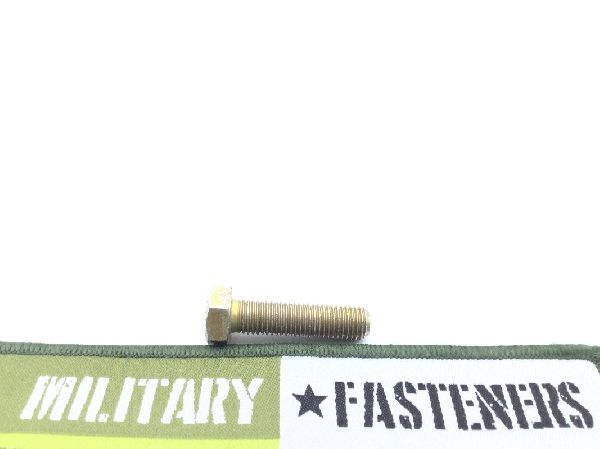

MS90726-36 Machine Bolt (3)

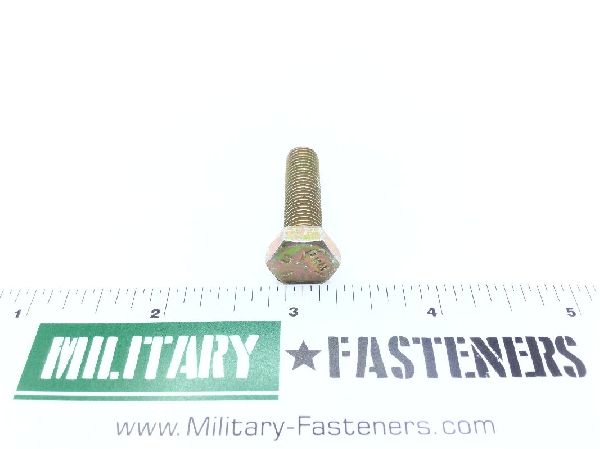

MS90726-36 Machine Bolt (4)

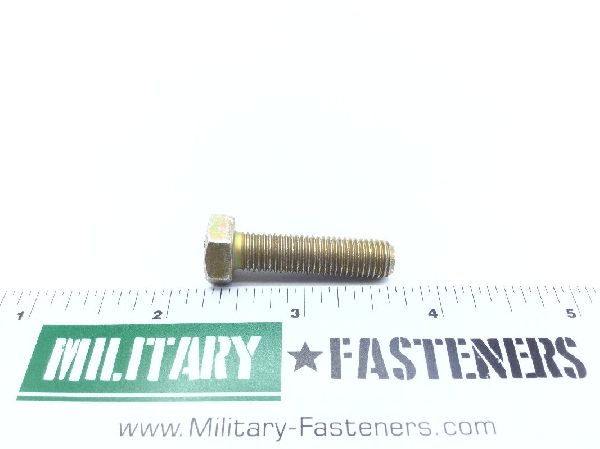

MS90726-36 Machine Bolt (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS90726-36 Machine Bolt

Product Series
MS
ECCN
EAR99
Schedule
7318.15.2000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Hexagon
Material
Steel
Thread Class
2a
Fastener Length
1.250 inches
Hardness Rating
23.0 rockwell c and 32.0 rockwell c
Head Height
Between 0.195 inches and 0.211 inches
Min. Tensile Strength (psi)
120000 pounds per square inch
Nondefinitive Specification/std Data
2 type and 10p style and 5 grade
Thread Diameter
0.312 inches
Thread Direction
Right-hand
Thread Length
0.875 inches
Thread Qty Per Inch (tpi)
24
Thread Series Designator
Unf (fine thread)
Width Between Flats
Between 0.489 inches and 0.500 inches
