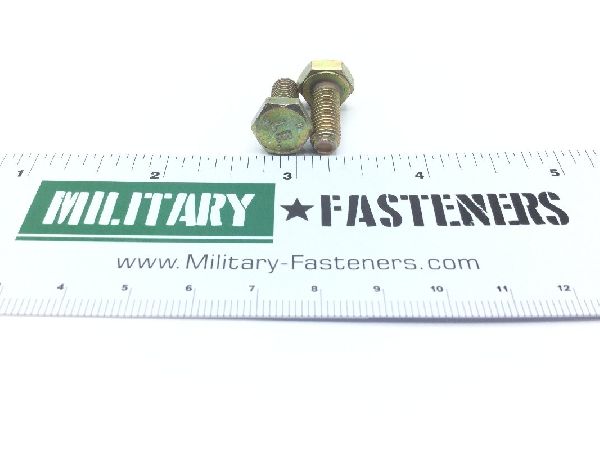

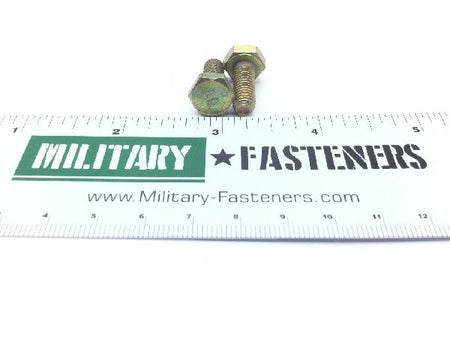

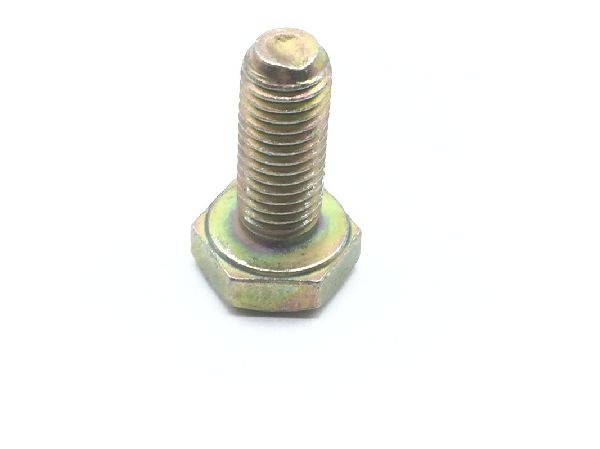

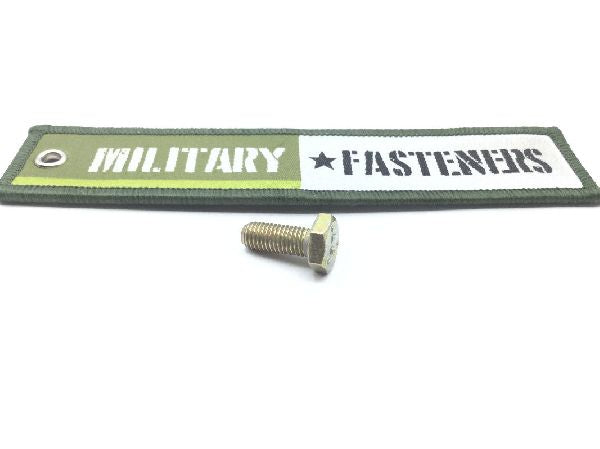

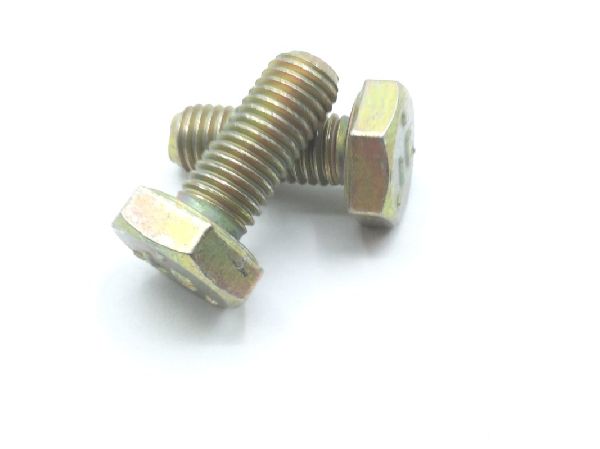

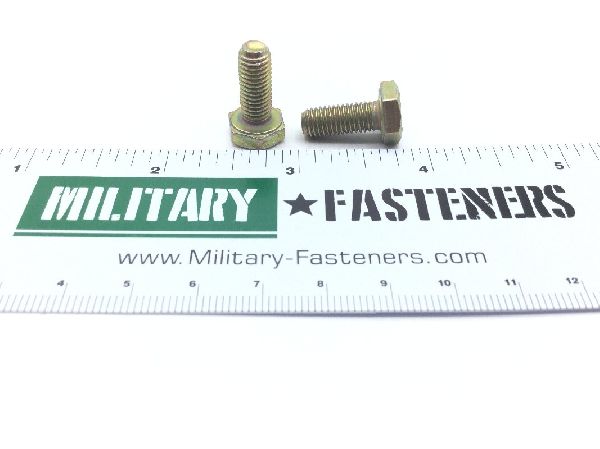

MS90726-5 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.29

Units per Pack 100

Price per Pack $29.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $29.00

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Astm b633 type 2 sc 3 assn standard single treatment response

Thread Class

End Application: Mrap - cougar
Fastener Length: 0.625 inches
Features: Finished head
Features Provided: Finished head
Hardness Rating: 32.0 rockwell c and 38.0 rockwell c
Head Height: Between 0.150 inches and 0.163 inches
Material Specification: Saej429grade8 assn standard single material response
Min. Tensile Strength (psi): 150000 pounds per square inch
Minimum Yield Strength: 120000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and 10p style and 8 grade
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.625 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.428 inches and 0.438 inches
