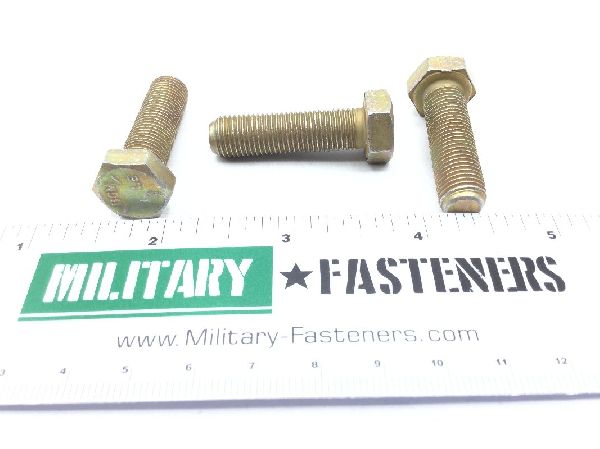

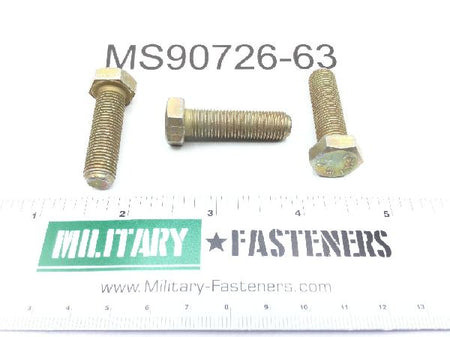

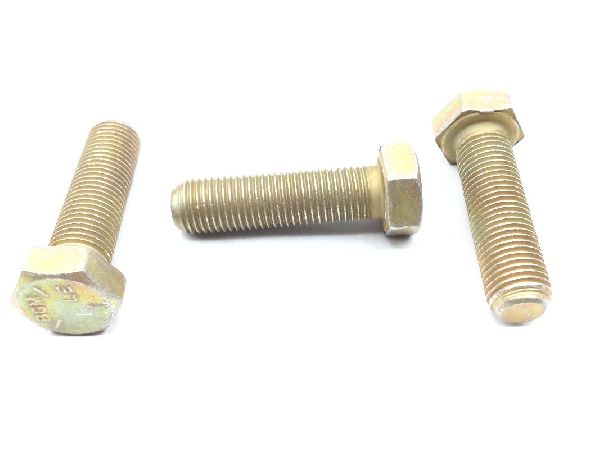

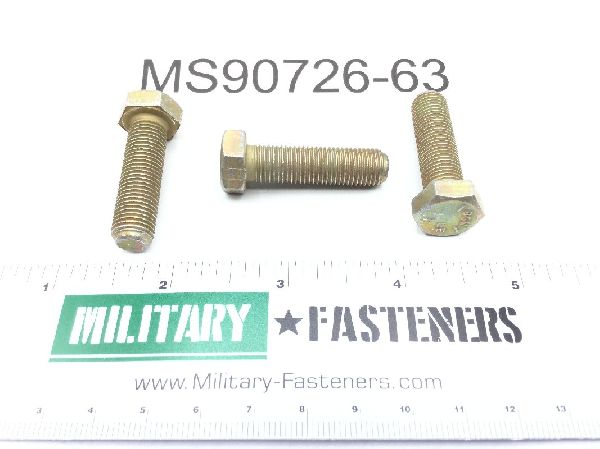

MS90726-63 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Astm b633 type 2 sc 3 assn standard single treatment response

Thread Class

End Application: Mrap rg-33
Fastener Length: 1.375 inches
Hardness Rating: 32.0 rockwell c and 38.0 rockwell c
Head Height: Between 0.226 inches and 0.243 inches
Material Specification: Sae j429 gr8 assn standard single material response
Min. Tensile Strength (psi): 150000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and y10p style and 8 grade
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 1.00 inches and 1.188 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.551 inches and 0.562 inches
