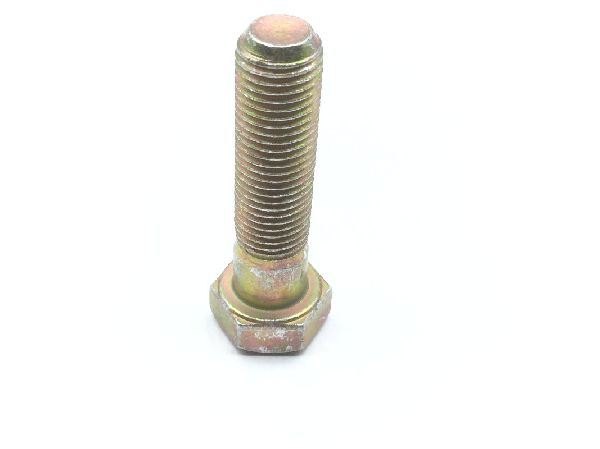

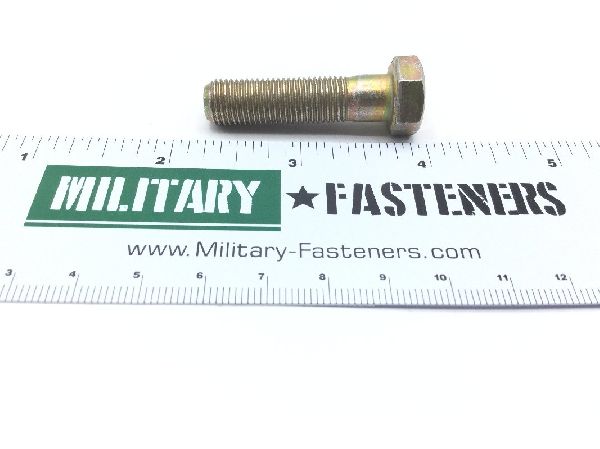

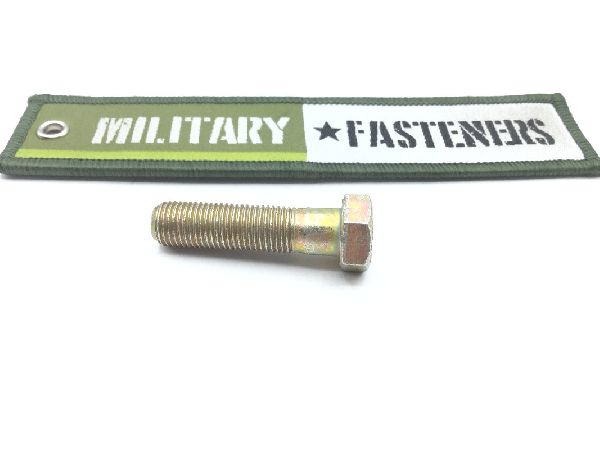

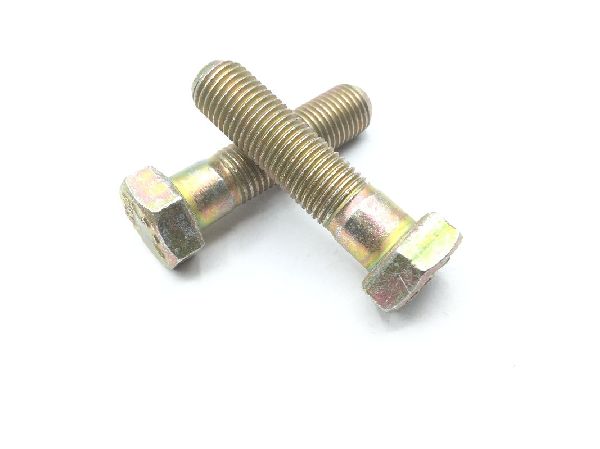

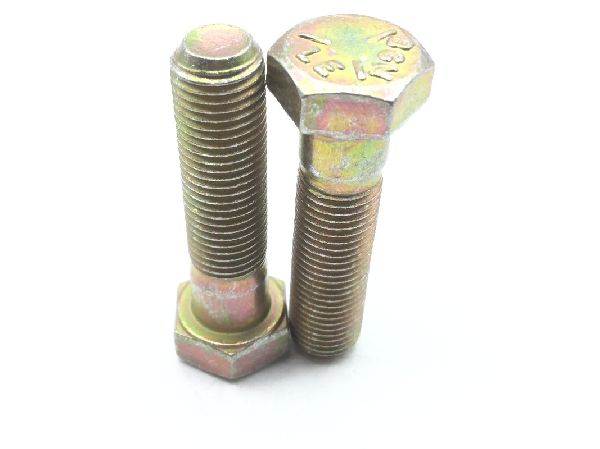

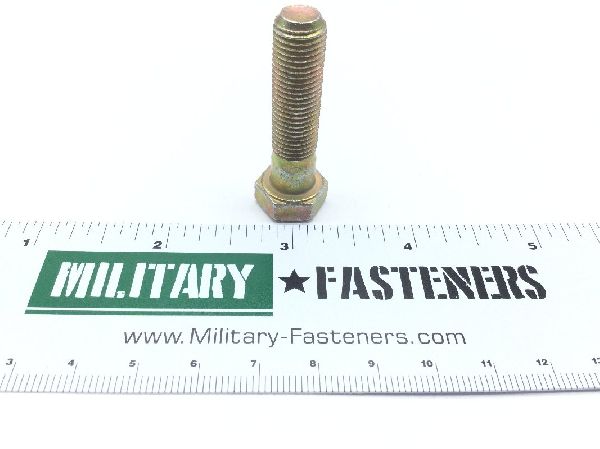

MS90726-64 Hexagon Head Cap Screw

MS90726-64 Hexagon Head Cap Screw (2)

MS90726-64 Hexagon Head Cap Screw (3)

MS90726-64 Hexagon Head Cap Screw (4)

MS90726-64 Hexagon Head Cap Screw (5)

MS90726-64 Hexagon Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS90726-64 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Head Style

Hexagon

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

2a

Fastener Length: 1.500 inches
Hardness Rating: 23.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.226 inches and 0.243 inches
Material Specification: Sae gr 5 assn standard single material response
Min. Tensile Strength (psi): 120000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 1.000 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.551 inches and 0.562 inches
