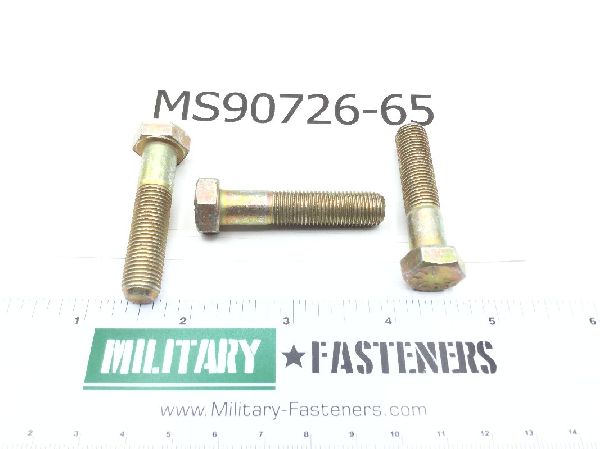

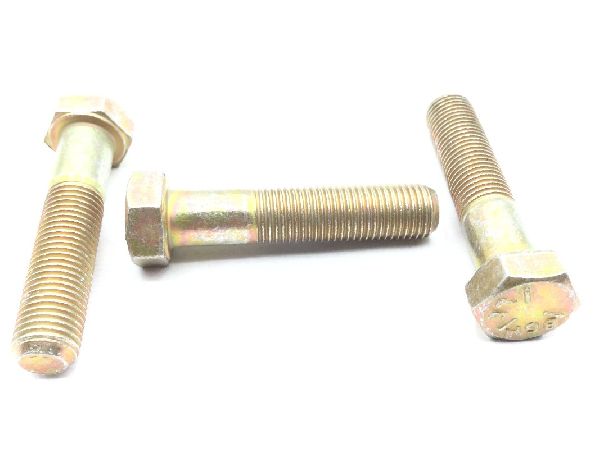

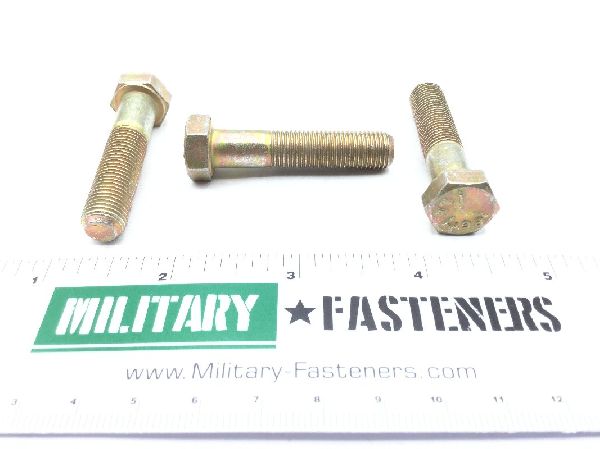

MS90726-65 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $3.78

Units per Pack 10

Price per Pack $37.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $37.80

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Astm b633 type 2 sc 3 assn standard single treatment response

Thread Class

End Application: Mrap-rg-33 armored utility vehicle (auv)
Fastener Length: Between 1.688 inches and 1.750 inches
Hardness Rating: 32.0 rockwell c and 38.0 rockwell c
Head Height: Between 0.226 inches and 0.243 inches
Material Specification: Sae gr 8 assn standard single material response
Min. Tensile Strength (psi): 150000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 1.000 inches and 1.188 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.551 inches and 0.562 inches
