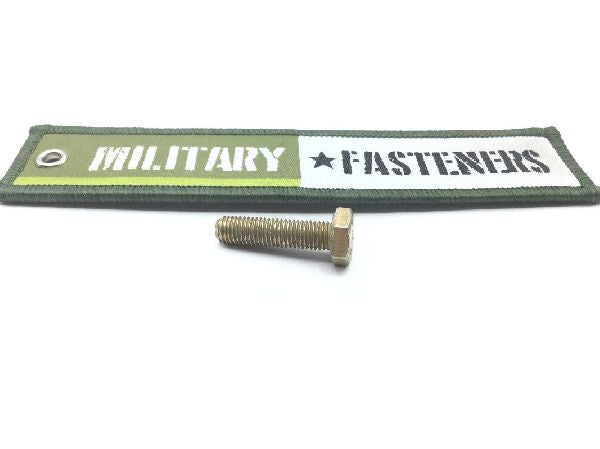

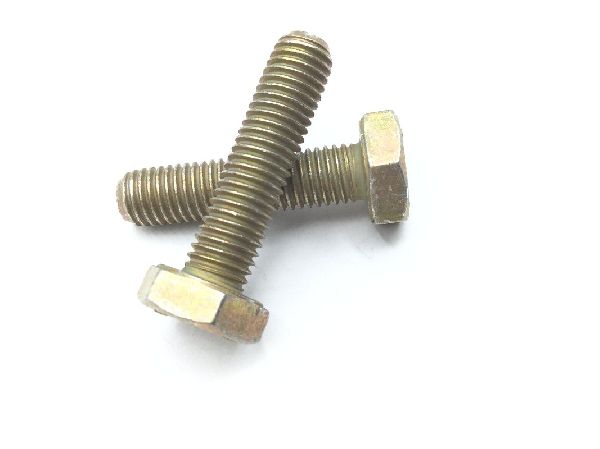

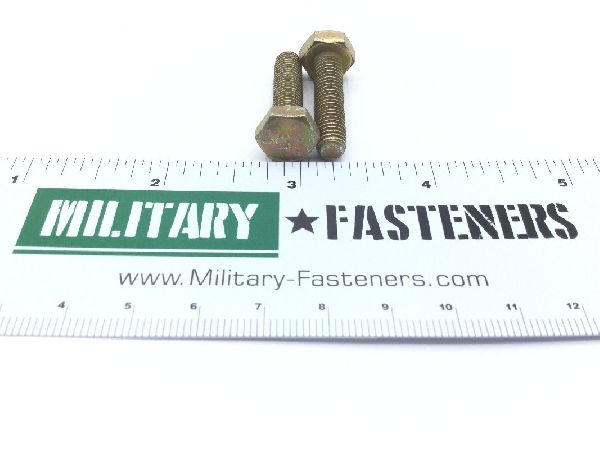

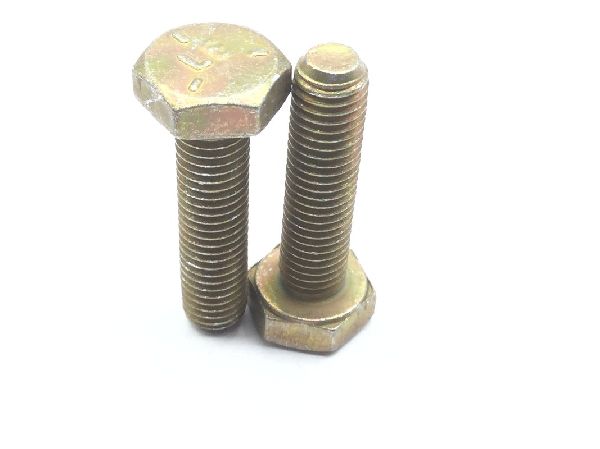

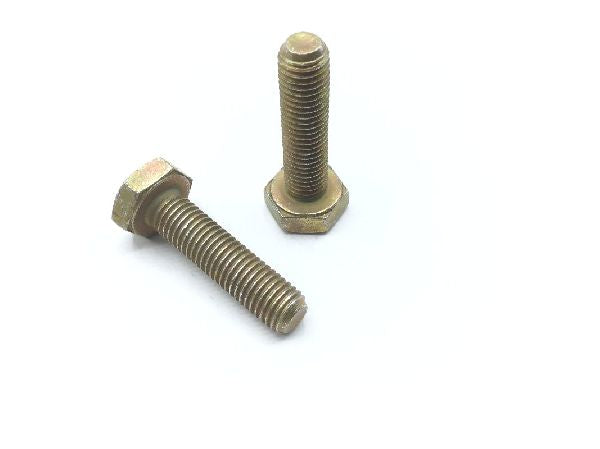

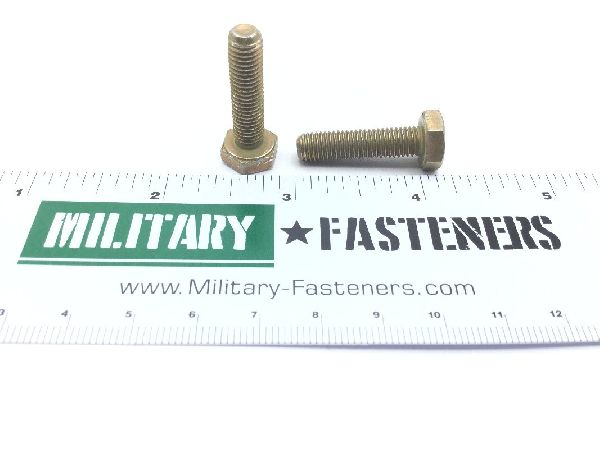

MS90726-8 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Steel

Thread Class

End Application: Communications interface system (cis) (v) 2 5895-01-514-7015
Fastener Length: 1.000 inches
Head Height: 0.226 inches
Material Specification: Sae j429 gr5 assn standard single material response
Part Name Assigned By Controlling Agency: Unf (fine thread)-2a cadmuim plated grade 5 steel hexagon (finished hexagon bolt) cap screw
Specification Data: Nov 99 which replaces ms90726b0. may 69 professional/industrial association specification 80205 - nas-90726
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 1.000 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.4280 inches and 0.4375 inches
