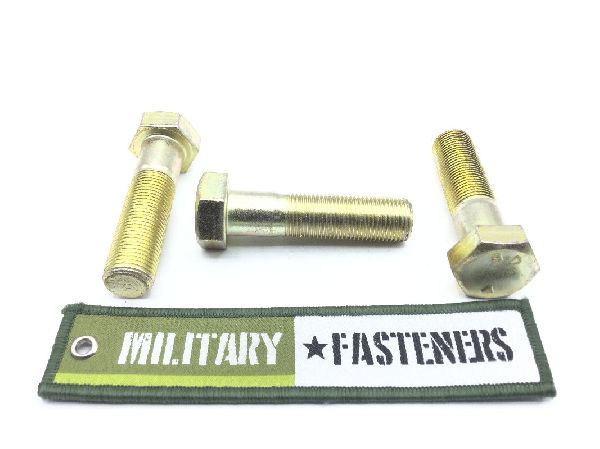

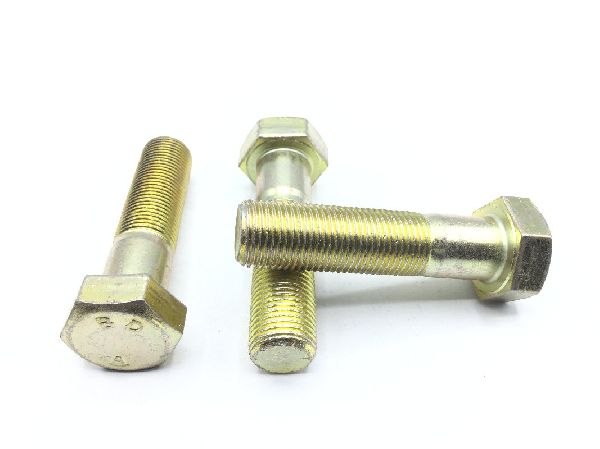

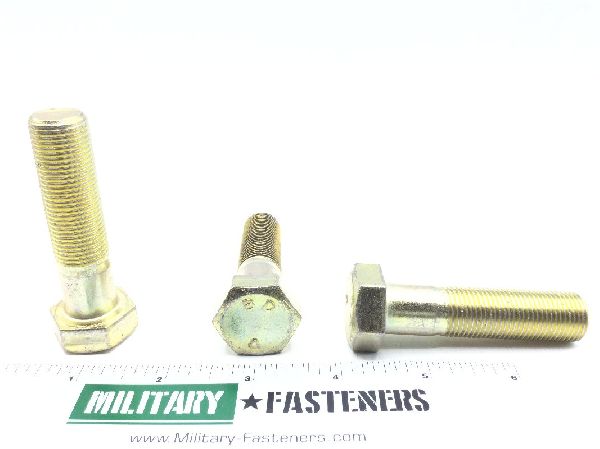

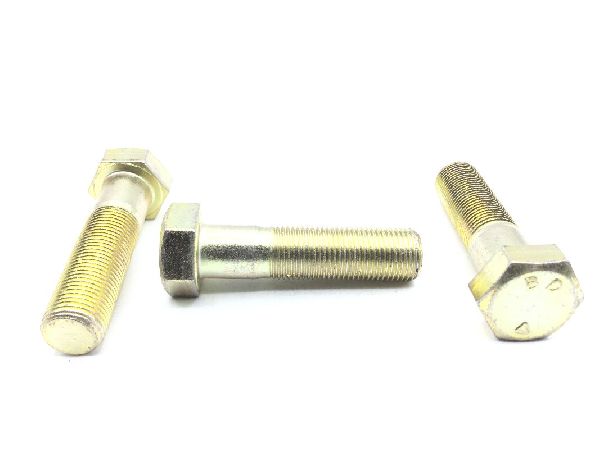

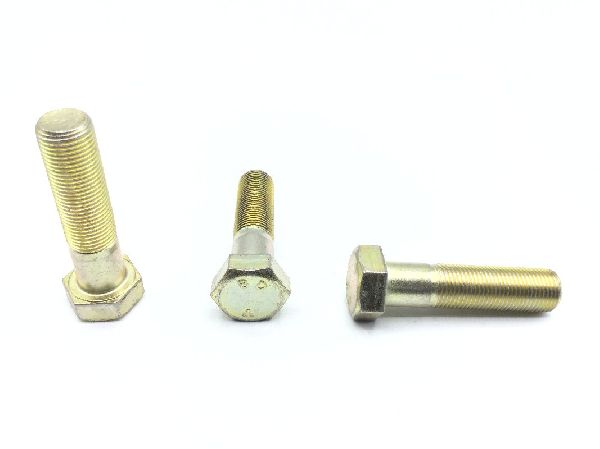

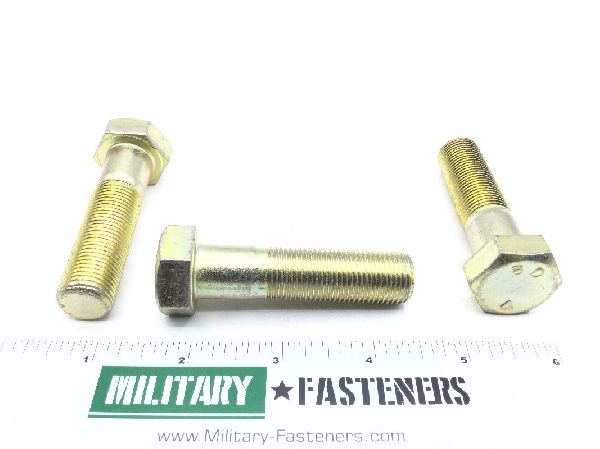

MS90727-166 Hexagon Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $4.17

Units per Pack 10

Price per Pack $41.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.70

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Astm b633 type 2 sc 3 assn standard single treatment response

Thread Class

End Application: Mrap
Fastener Length: 2.500 inches
Hardness Rating: 32.0 rockwell c and 38.0 rockwell c
Head Height: 0.378 mils and 0.403 centimeters
Material Specification: Sae gr 8 assn standard single material response
Min. Tensile Strength (psi): 150000 pounds per square inch
Minimum Yield Strength: 120000 pounds per square inch
Part Name Assigned By Controlling Agency: unc (coarse thread) 2a 5/8-11 x 2.500 hex head cap screw
Thread Diameter: 0.625 inches
Thread Direction: Right-hand
Thread Length: Between 1.500 inches and 1.688 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.922 inches and 0.938 inches
