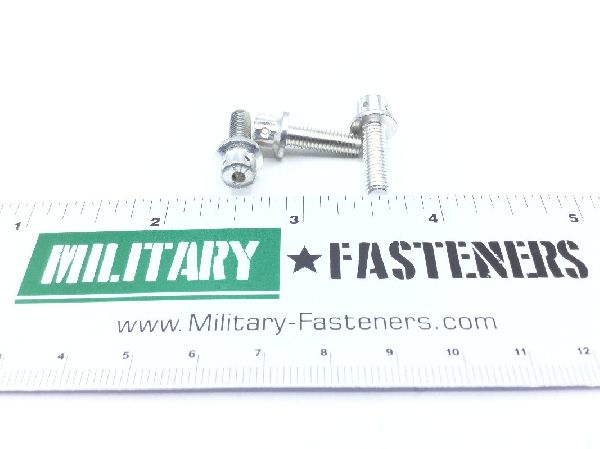

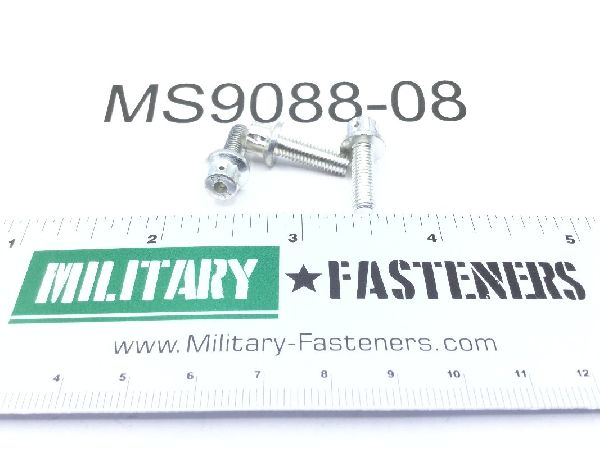

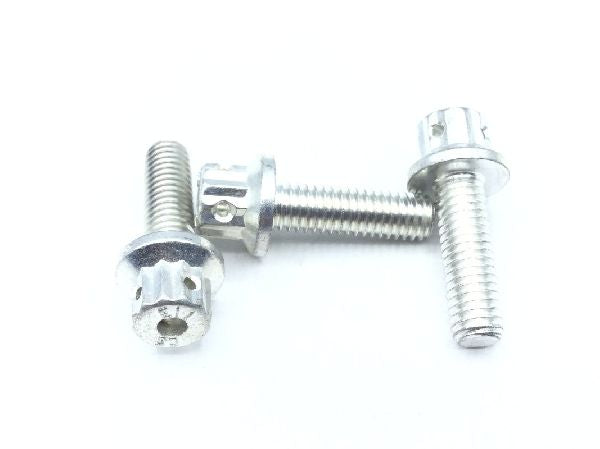

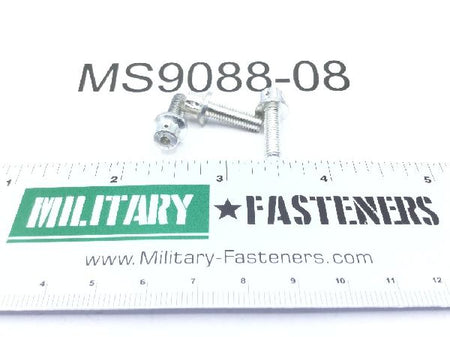

MS9088-08 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $2.70

Units per Pack 20

Price per Pack $54.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $54.00

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp 8740

Surface Treatment

Ams 2400 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.375 inches
Extended Washer Thickness: Between 0.040 inches and 0.050 inches
Fastener Length: 0.625 inches
Features: Finished head
Features Provided: Finished head
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: 0.260 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams 6322 assn standard single material response
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.563 inches and 0.625 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.243 inches and 0.251 inches
Hole Diameter: 0.047 inches
