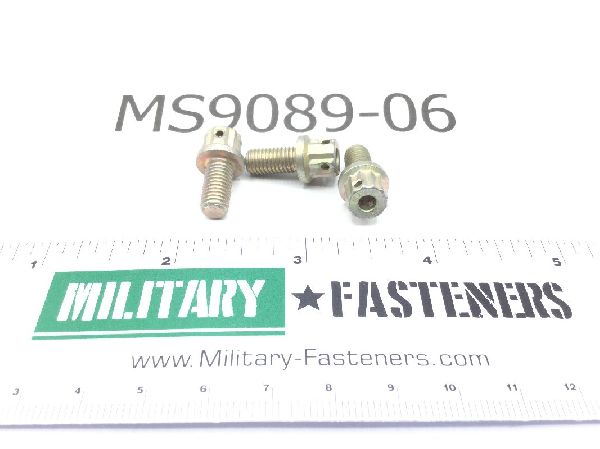

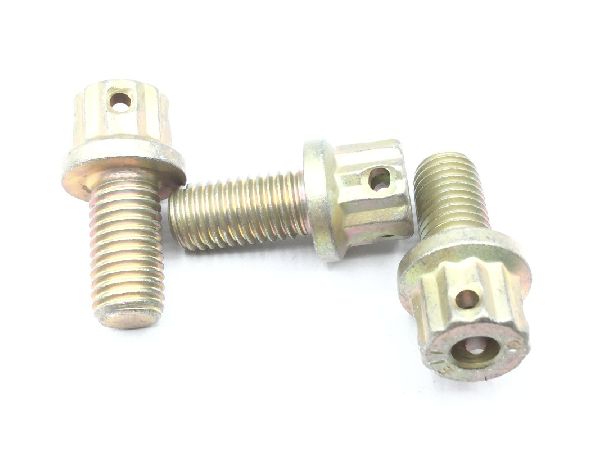

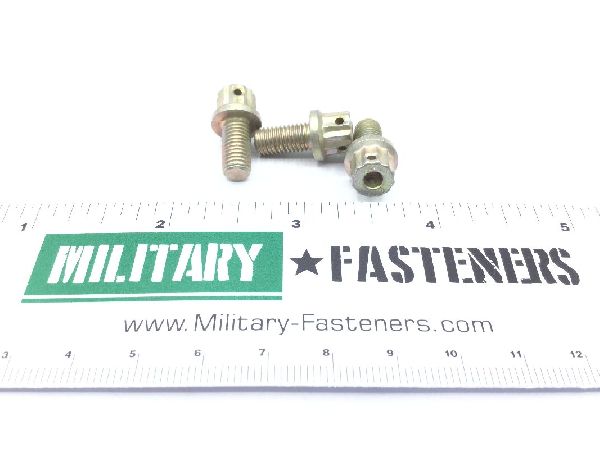

MS9089-06 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $2.85

Units per Pack 20

Price per Pack $57.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $57.00

Add item to quote

Head Style

Double hexagon extended washer

Material

Steel comp

Thread Class

Distance From Largest Surface Of Head To End Of First Di: 0.062 inches
Extended Washer Diameter: 0.438 inches
Extended Washer Thickness: 0.070 inches
Externally Relieved Body Diameter Quantity: 1
Fastener Length: 0.500 inches
First Diameter From Head: Between 0.221 inches and 0.231 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: 0.330 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams 6322 assn standard single material response
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.438 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.304 inches and 0.313 inches
Hole Diameter: 0.062 inches
