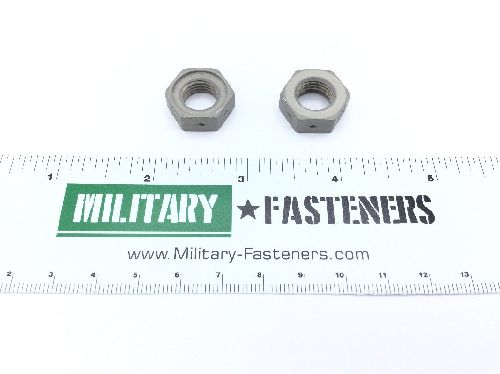

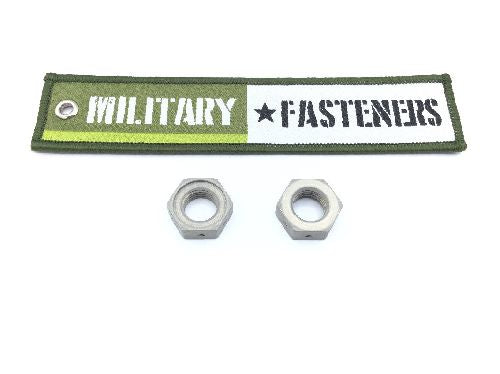

MS9099-04 Plain Hexagon Nut

Product Series: MS
ECCN: 9A991
Schedule: 7318.16.0085

Price per Unit $11.78

Units per Pack 5

Price per Pack $58.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $58.90

Add item to quote

Material

Aluminum alloy 2024

Surface Treatment

Ams 2470 assn standard single treatment response

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.438 inches

Countersink Angle: 105.0 degrees and 115.0 degrees
Drilled Hole Diameter: 0.047 inches
Hole Configuration Style: Configuration b
Hole Type And Quantity: 2 drilled
Material Specification: Ams 4120 assn standard single material response
Nut Height: Between 0.271 inches and 0.291 inches
Nut Style: Hexagon
Surface Type: Chamfered or washer faced
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.679 inches and 0.690 inches
