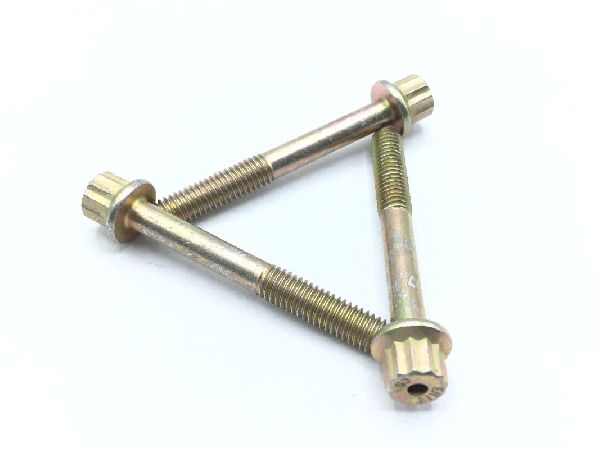

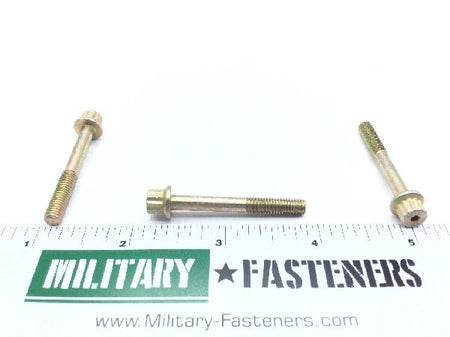

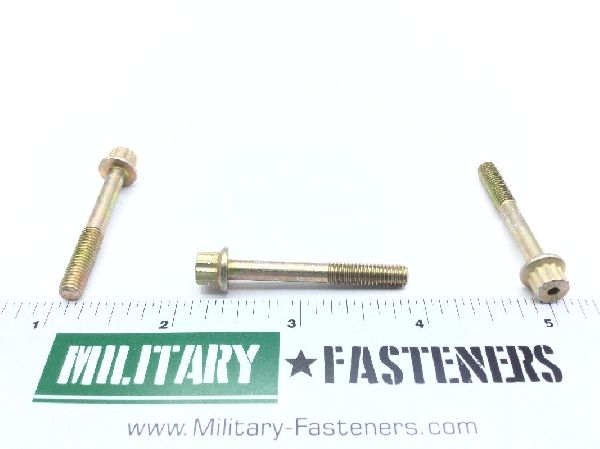

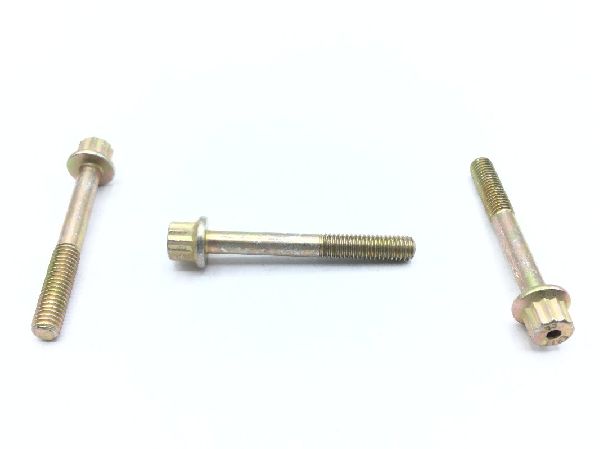

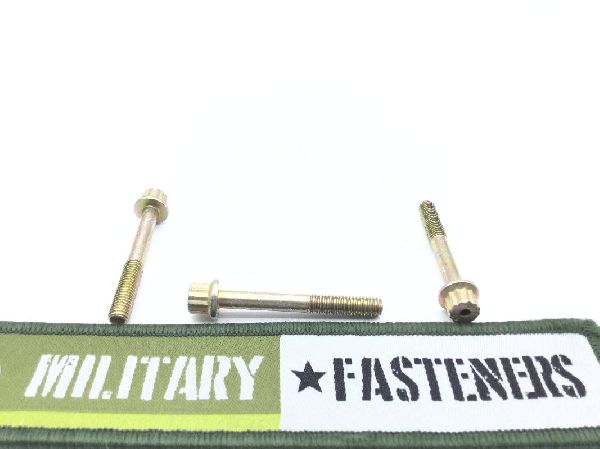

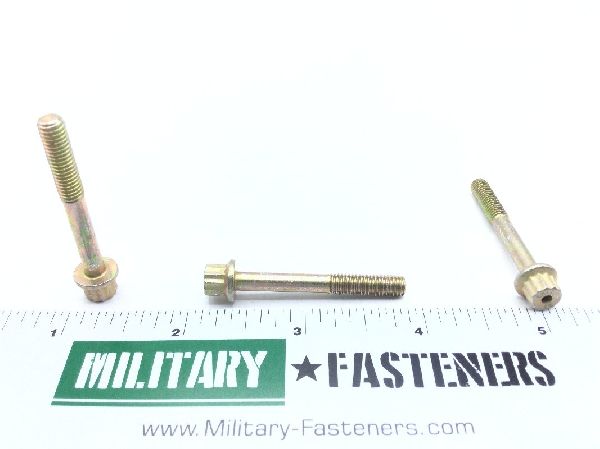

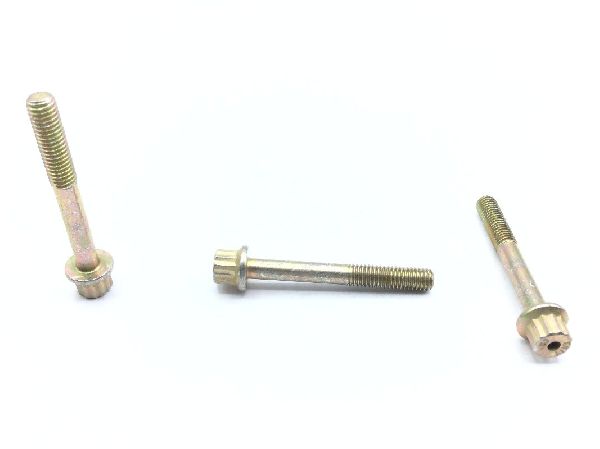

MS9146-22 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp 8740

Surface Treatment

Ams 2400 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.375 inches
Extended Washer Thickness: Between 0.040 inches and 0.050 inches
Fastener Length: Between 1.490 inches and 1.510 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.815 inches and 0.875 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.250 inches and 0.270 inches
Material Specification: Ams 6322 assn standard single material response
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.615 inches and 0.695 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.243 inches and 0.251 inches
