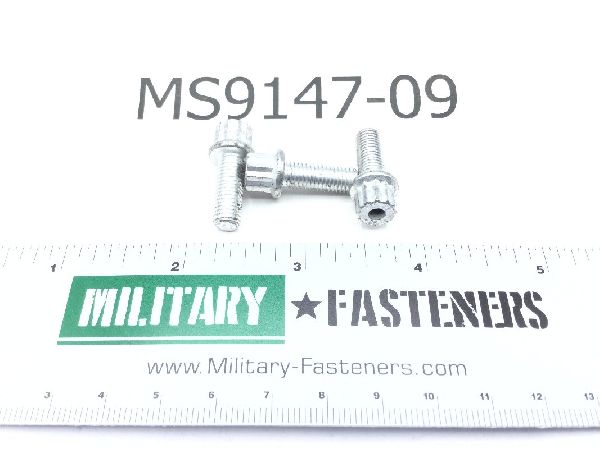

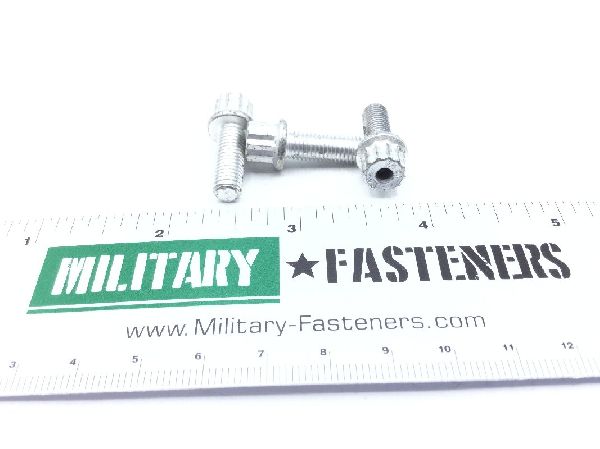

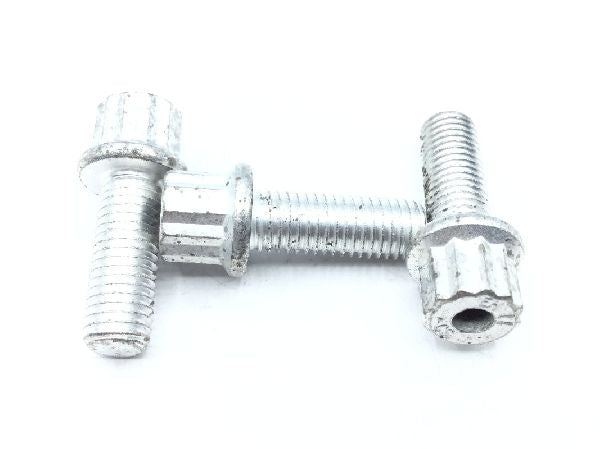

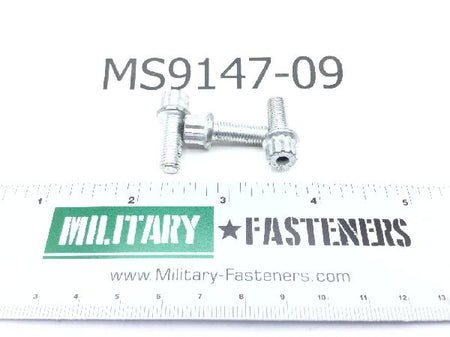

MS9147-09 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $1.68

Units per Pack 25

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel

Surface Treatment

Ams 2400 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.438 inches
Extended Washer Thickness: Between 0.060 inches and 0.070 inches
Fastener Length: 0.688 inches
Features: Finished head
Features Provided: Finished head
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: 0.330 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams 6322 assn standard single material response
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.688 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.304 inches and 0.313 inches
Hole Diameter: 0.070 inches
