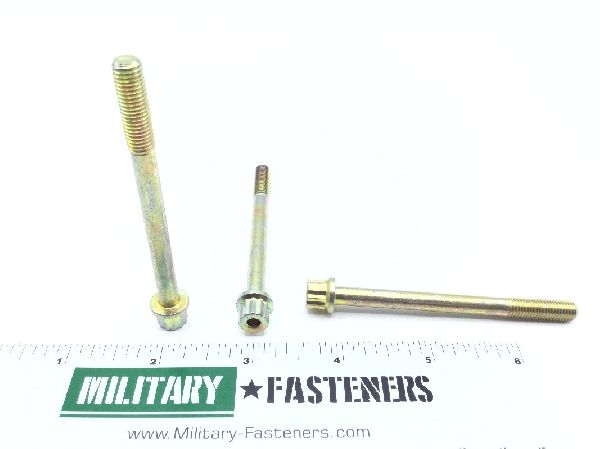

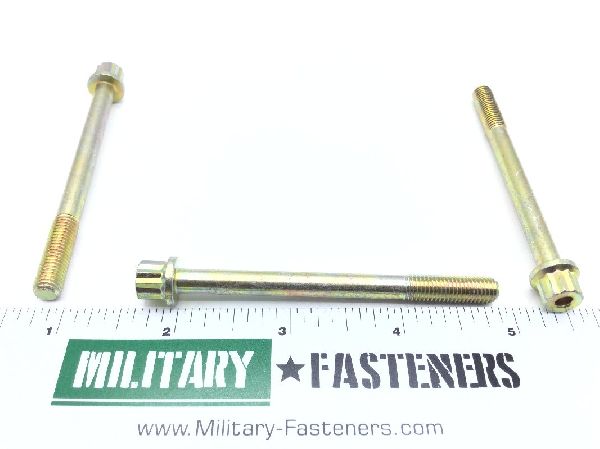

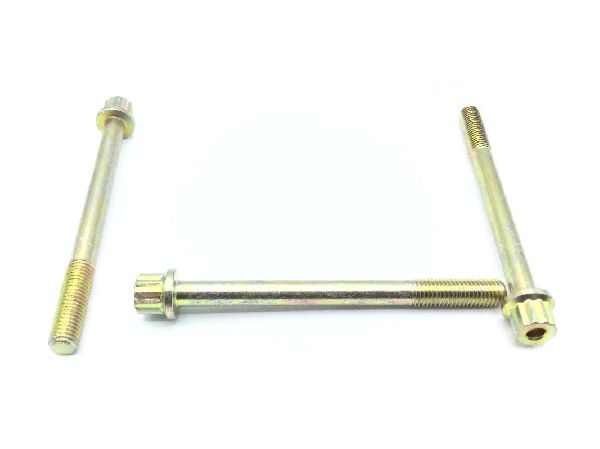

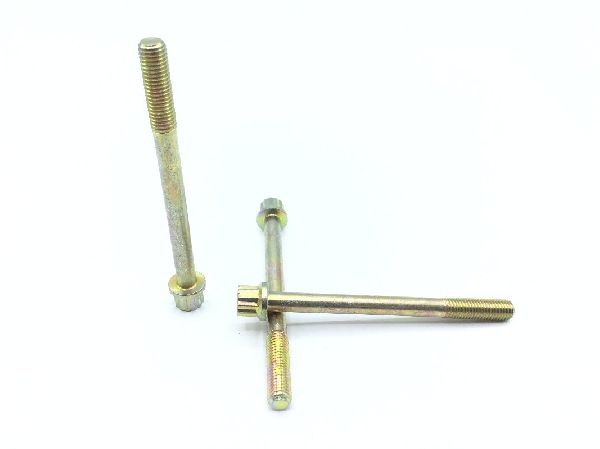

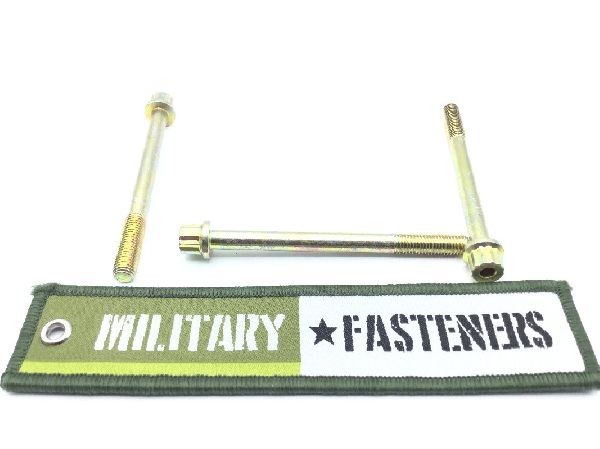

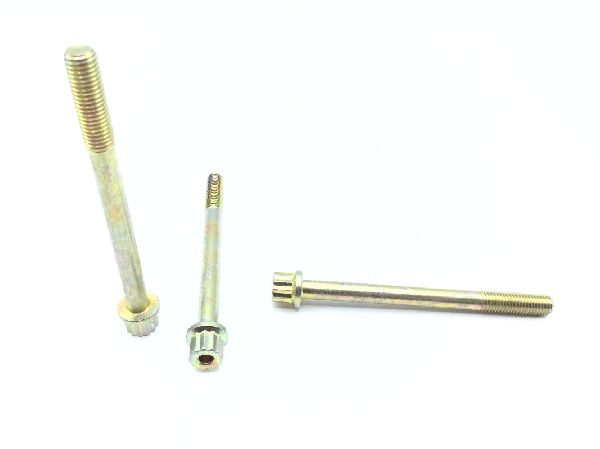

MS9147-35 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $11.01

Units per Pack 10

Price per Pack $110.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $110.10

Add item to quote

Head Style

Double hexagon with hole

Material

Steel comp 8740

Surface Treatment

Ams 2400 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.430 inches
Extended Washer Thickness: Between 0.060 inches and 0.070 inches
Fastener Length: Between 2.865 inches and 2.885 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 2.065 inches and 2.125 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.320 inches and 0.340 inches
Material Specification: Ams 6322 assn standard single material response
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.740 inches and 0.820 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.304 inches and 0.313 inches
