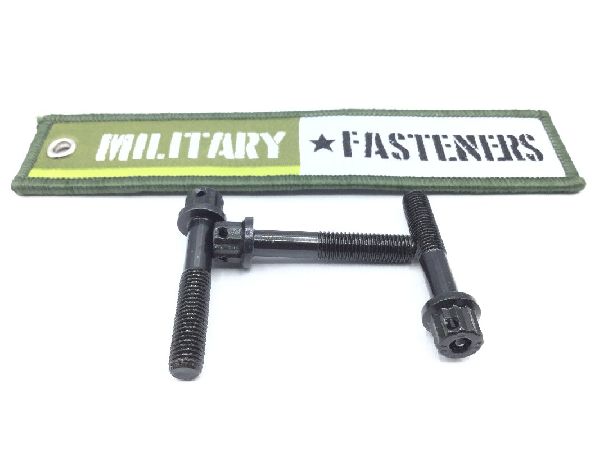

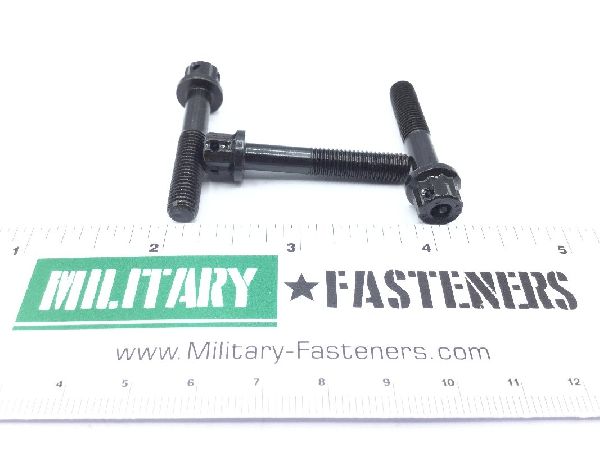

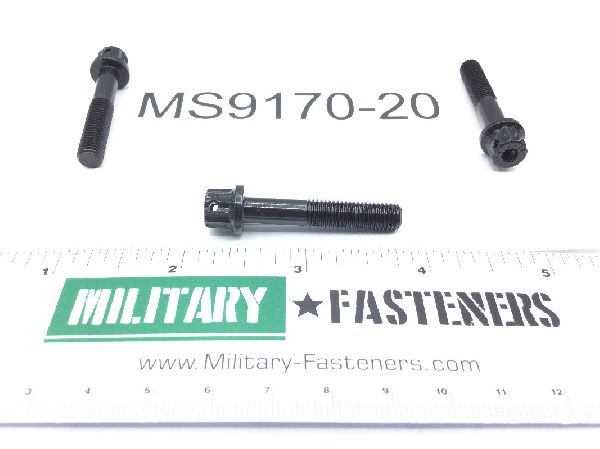

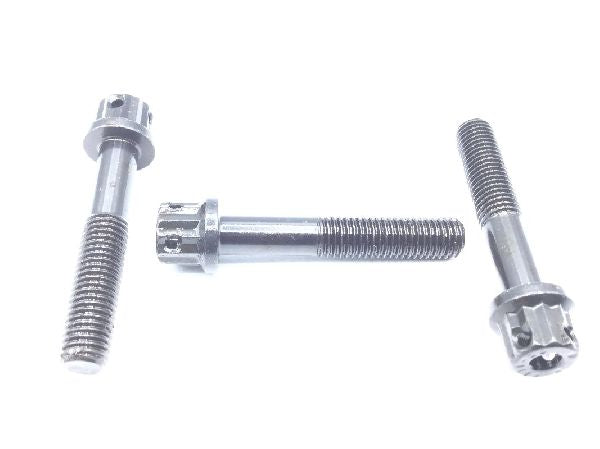

MS9170-20 Machine Bolt

Product Series: MS
ECCN: 9A991
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon with hole

Material

Steel comp 8740

Surface Treatment

Ams 2485 assn standard single treatment response

Thread Class

Extended Washer Diameter: Between 0.428 inches and 0.448 inches
Extended Washer Thickness: Between 0.060 inches and 0.070 inches
Fastener Length: Between 1.365 inches and 1.385 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.565 inches and 0.625 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.320 inches and 0.340 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams 6322 assn standard single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.740 inches and 0.820 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.304 inches and 0.313 inches
Hole Diameter: 0.070 inches
