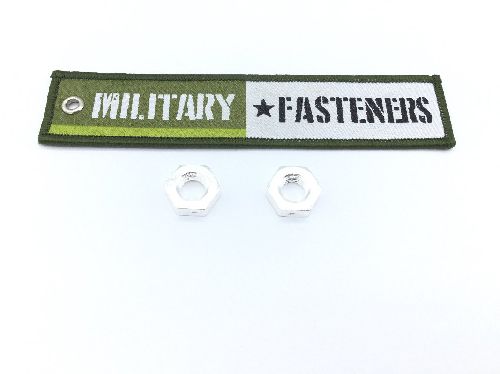

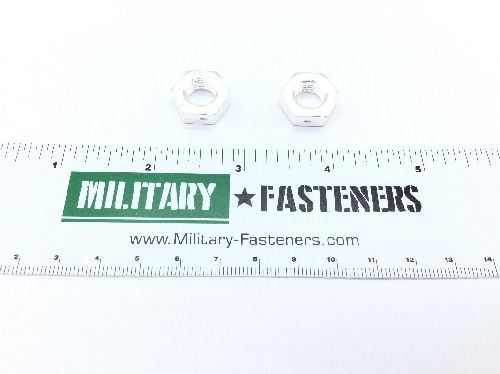

MS9201-03 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $13.17

Units per Pack 5

Price per Pack $65.85

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $65.85

Add item to quote

Material

Steel comp 347

Surface Treatment

Ams 2410 assn standard single treatment response

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.375 inches

Bearing Surface Type: Chamfered
Countersink Angle: 105 degrees nut and 115 degrees nut
Drilled Hole Diameter: 0.047 inches
Hole Configuration Style: Configuration b
Hole Type And Quantity: 2 drilled
Material Specification: Ams 5646 assn standard single material response
Nut Height: 0.219 inches
Nut Style: Hexagon
Precious Material: Silver
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.616 inches and 0.627 inches
