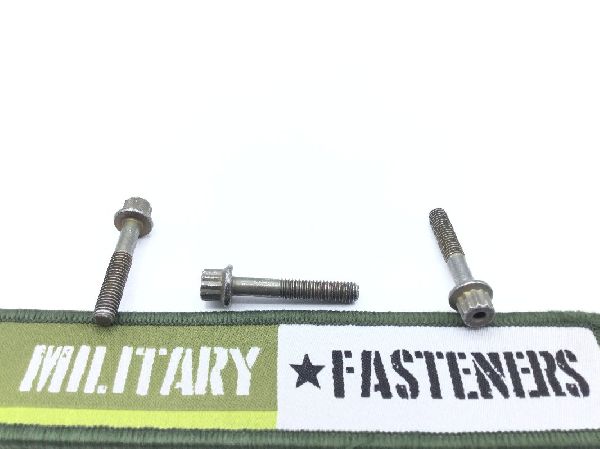

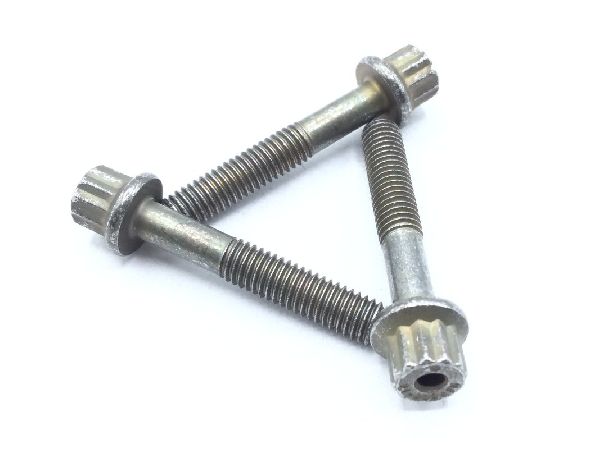

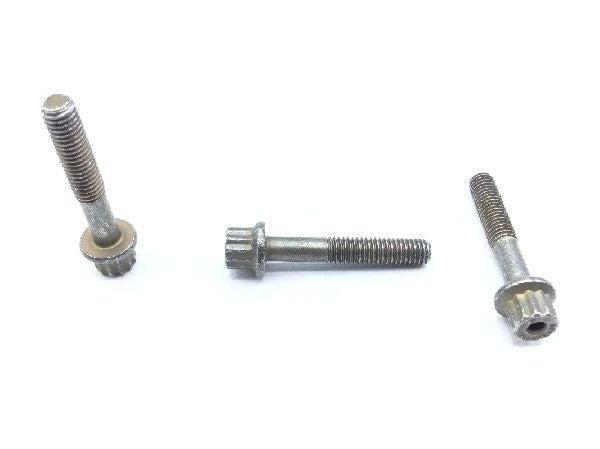

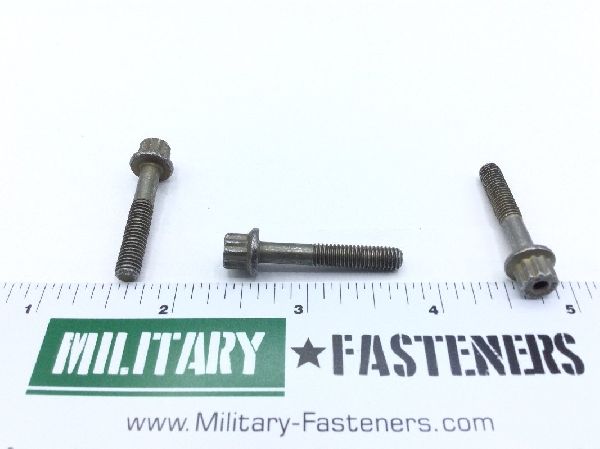

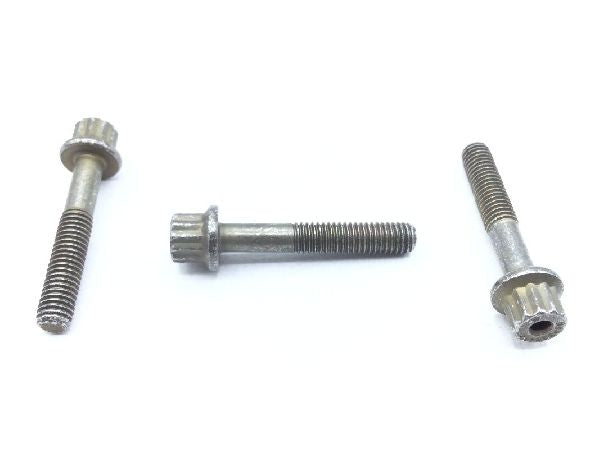

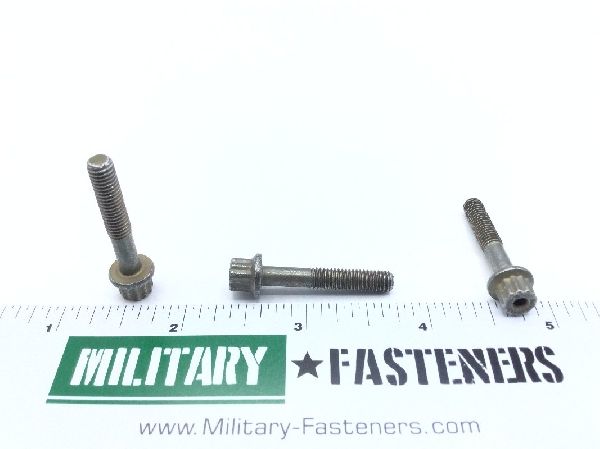

MS9208-16 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Steel comp 601

Surface Treatment

Ams2416 assn standard all treatment responses

Thread Class

Distance From Largest Bearing Surface Of Head To End Of First Di: Between 0.435 inches and 0.495 inches
Extended Washer Diameter: Between 0.365 inches and 0.385 inches
Extended Washer Thickness: Between 0.040 inches and 0.050 inches
Externally Relieved Body Diameter Quantity: 1
Fastener Length: Between 1.115 inches and 1.135 inches
Features: Finished head
Features Provided: Finished head
First Diameter From Head: Between 0.165 inches and 0.175 inches
Hardness Rating: 42.0 rockwell c and 46.0 rockwell c
Head Height: Between 0.240 inches and 0.260 inches
Material Specification: Ams6304 uns k14675 assn standard single material response
Specification Data: 96906-ms9208 government standard
Supplementary Features: Acft eng and prop. appl
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.630 inches and 0.690 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.243 inches and 0.251 inches
