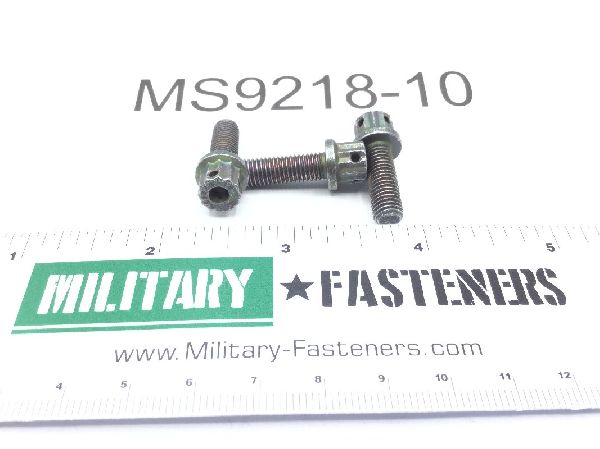

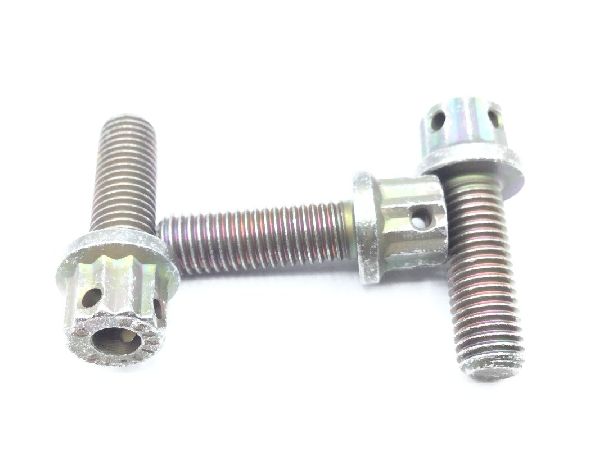

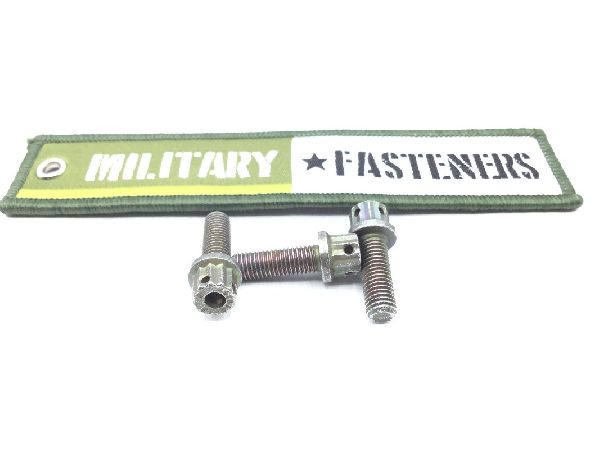

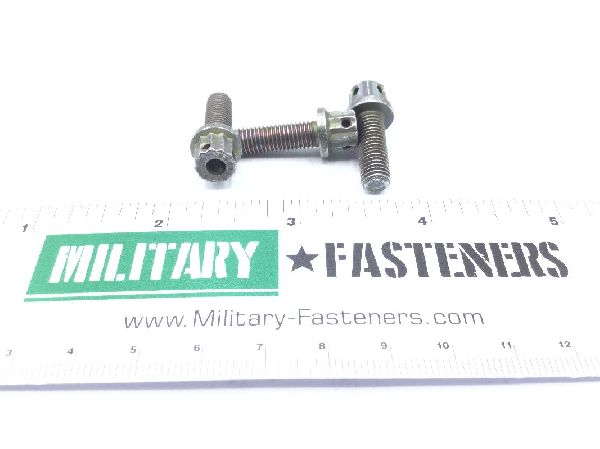

MS9218-10 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $3.46

Units per Pack 10

Price per Pack $34.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $34.60

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp 601

Surface Treatment

Ams 2416 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.438 inches
Extended Washer Thickness: Between 0.06 inches and 0.07 inches
Fastener Length: 0.75 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.079 inches and 0.099 inches
Hardness Rating: 42.0 rockwell c and 46.0 rockwell c
Head Height: 0.330 inches
Hole Configuration Style: Round longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams 6304 assn standard single material response
Surface Finish: 32.0 microinches bearing surface of head
Thread Diameter: 0.250 inches
Thread Direction: Right Hand
Thread Length: Between 0.651 inches and 0.671 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.305 inches and 0.313 inches
Hole Diameter: 0.07 inches
