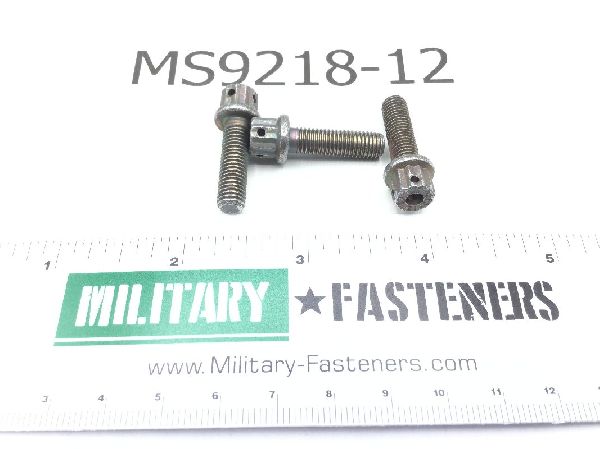

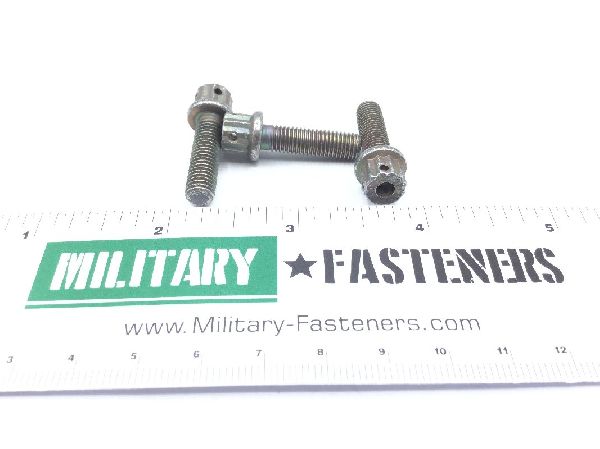

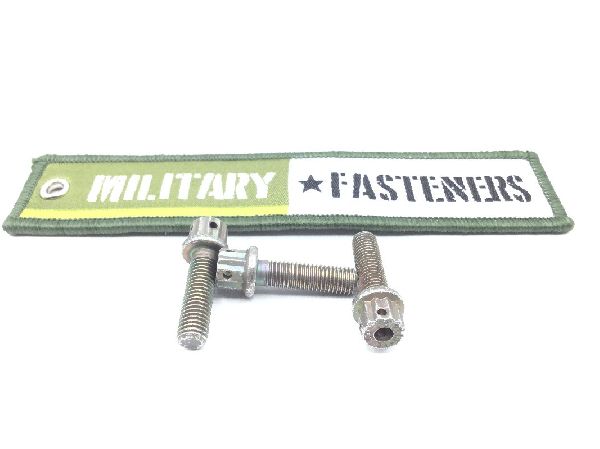

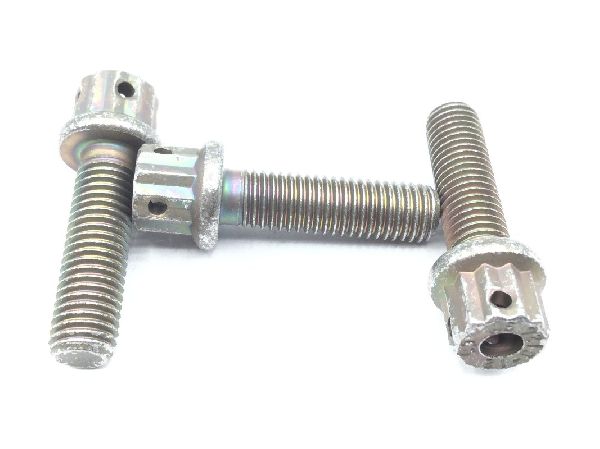

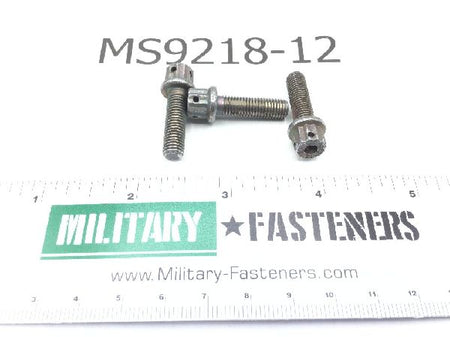

MS9218-12 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Steel comp 601

Surface Treatment

Ams 2416 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.438 inches
Extended Washer Thickness: Between 0.060 inches and 0.070 inches
Fastener Length: 0.875 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.125 inches and 0.145 inches
Hardness Rating: 42.0 rockwell c and 46.0 rockwell c
Head Height: 0.330 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams 6304 assn standard single material response
Min. Tensile Strength (psi): 195000 pounds per square inch
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.730 inches and 0.750 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.305 inches and 0.313 inches
Hole Diameter: 0.070 inches
