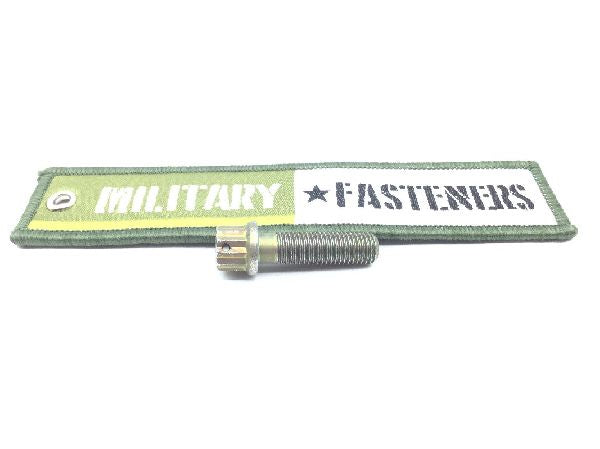

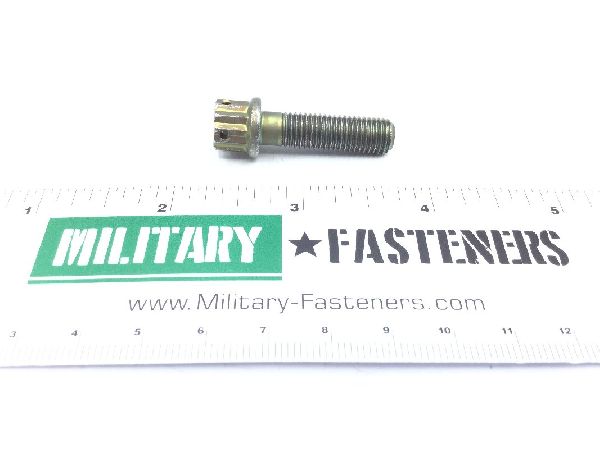

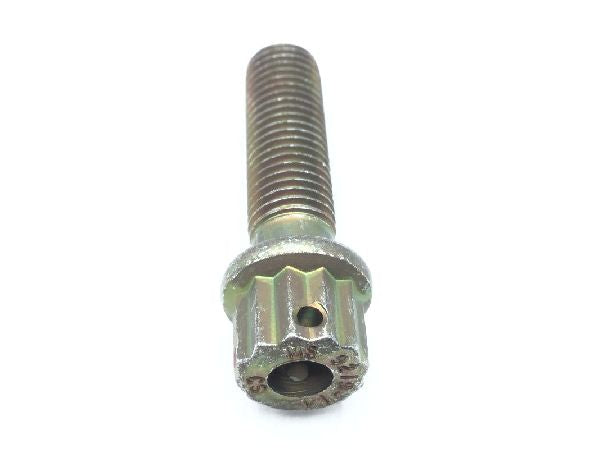

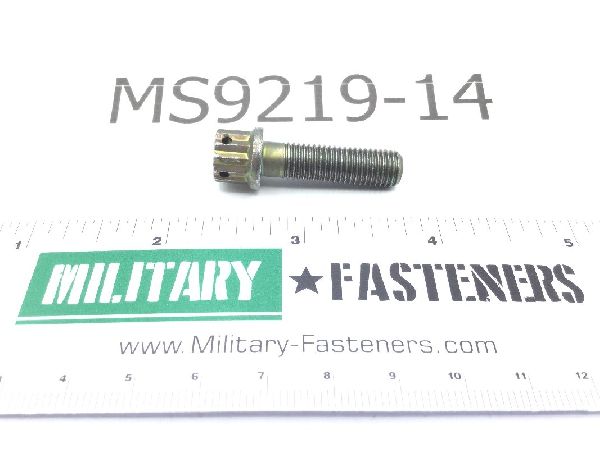

MS9219-14 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $11.01

Units per Pack 1

Price per Pack $11.01

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $11.01

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel

Surface Treatment

Ams 2416 assn standard single treatment response

Thread Class

Extended Washer Diameter: 0.500 inches
Extended Washer Thickness: Between 0.070 inches and 0.080 inches
Fastener Length: 1.125 inches
Grip Length: Between 0.190 inches and 0.250 inches
Hardness Rating: 42.0 rockwell c and 46.0 rockwell c
Head Height: 0.375 inches
Hole Configuration Style: Round
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams 6304 assn standard single material response
Surface Finish: 32.0 microinches bearing surface of head
Thread Diameter: 0.3125 inches
Thread Direction: Right-hand
Thread Length: Between 0.875 inches and 0.935 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
Hole Diameter: 0.070 inches
