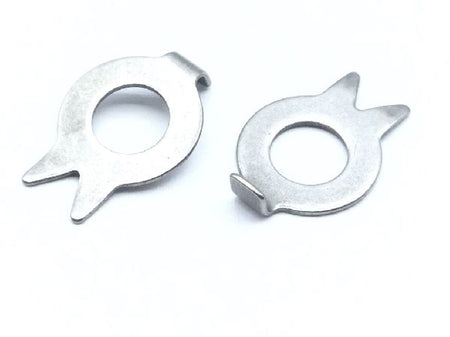

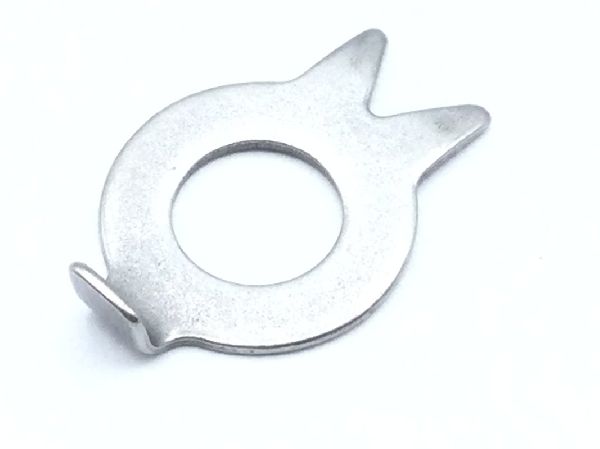

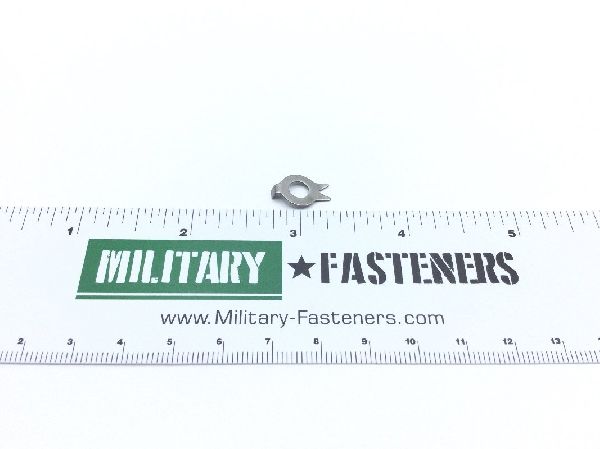

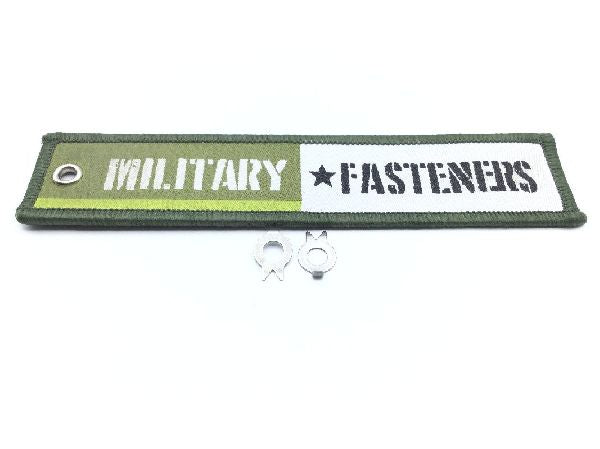

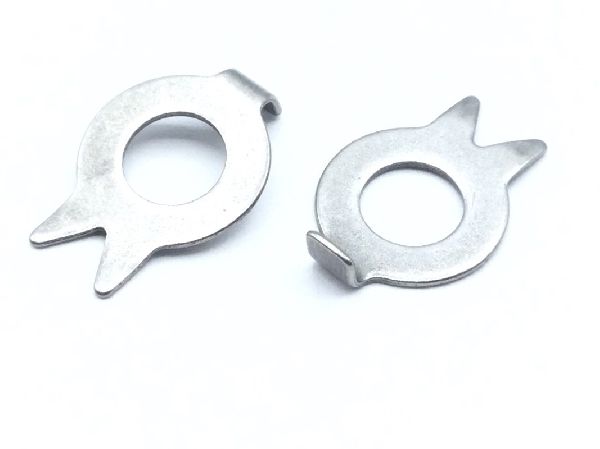

MS9276-09 Key Washer

Product Series: MS
ECCN: EAR99
Schedule: 8112.29.0000

Price per Unit $0.77

Units per Pack 50

Price per Pack $38.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $38.50

Add item to quote

Material

Steel

Angle Between External Keys: Between 58.0 degrees and 62.0 degrees
Distance From Centerline To Inside Of Prebent Key: Between 0.221 inches and 0.231 inches
External Key Quantity: 3
External Prebent Key Length: Between 0.095 inches and 0.105 inches
External Prebent Key Width: Between 0.110 inches and 0.115 inches
External Tapered Key Width: Between 0.200 inches and 0.210 inches
Material Specification: Ams 5576 assn standard single material response
Material Thickness: Between 0.019 inches and 0.025 inches
Outside Diameter: Between 0.370 inches and 0.380 inches
Overall Distance Including Keys: Between 0.530 inches and 0.561 inches
Special Features: Both angular keys bent 15 degrees in opposite direction of pre-bent key
Split Key Length: 0.105 inches
Style Designator: Key
Hole Diameter: Between 0.195 inches and 0.200 inches
